• Model NO.：Power cable
• Wire Core Material：Bare Copper,Aluminum Conductor
• Certification：ISO, CCC, CE
• Model：VV, VV22, Yjv, Yjv22, Yjv32
• Brand：Rmjt
• Flame Retardant：Available, as Per Customer′s Requirement
• Core Number：1-5, 3+1, 3+2, 4+1
• Sheath Colour：Black, Red, Blue, Other as Per Requirement
• Transport Package：Wooden Drum & Wooden Steel Drum
• Specification：0.5mm2~800mm2
• Trademark：RMJT
• Origin：China
• HS Code：8544492100
• Production Capacity：5000000km,Year

TYPENAMEMain ApplicationCU coreAL core  YJV/YJYYJLV/YJLYXLPE insulated,PVC/PE sheathed power cableFor laying indoor ,tunnel,canal and underground.
Unable to bear external mechanical forces,
but bear the traction force during laidYJV22/YJV23YJLV22/YJLV23XLPE insulated,steel tape armored,
PVC/PE sheathed power cableFor laying indoor ,tunnel,canal and underground.
Able to bear external mechanical forces,
but unable to bear large pulling forceYJV32/YJV33YJLV32/YJLV33XLPE insulated,thin steel wire armored,
PVC/PE sheathed power cableFor laying in shaft,water underground will large difference of level.
Able to bear external mechanical forces and moderate pulling forceYJV42/YJV43YJLV42/YJLV43XLPE insulated,thick steel wire armored,
PVC/PE sheathed power cableFor laying in water and seabed.
Able to bear positive pressure and pulling force
Standard:
IEC60502,and BS6346, VDE, AS/NZS, UL,etc or as customer's request.
The Rated Voltage(kv):
1st class 0.6/1 1.8/3 3.6/6 6/10 8.7/15 12/20 18/30 21/35
2nd class 1/1 3/3 6/6 8.7/10 12/15 18/20 - 26/35

Application:
The cable is used for fixed installations such as electric power distribution networks or industrial installations, which is laid in high fall area, able to bear external mechanical force, and certain pulling force.

Description:
1. Voltage:0.6/1KV
2. Conductor: Aluminum , Class 2
3. Insulation: PVC
4. Sheath; PVC
4.Armoured type: steel wire armoured cable(swa armoured cable also available)

Operating Characteristics
Rated voltage: 0.6/1(1.2)kV
Max. Permissible continuous operating temperature of conductor: 70 ° C
Max. Temperature of conductor during short-circuit (5s max. Duration) shall not exceed:
Nominal cross section of conductor ≤ 300mm2: 160 ° C
Nominal cross section of conductor >300mm2: 140 ° C
The ambient temperature under installation should not be lower than: 0 ° C
The bending radius of cable is recommended as following:
For single core cable: Not less than 15 times of the diameter of cable
For multi-core cable: Not less than 12 times of the diameter of cable
When the armored single core cable used for Alternative Current(AC) system, the armoring material should be non-magnetic.

Technical data
Main technical data of 0.6/1KV, Single core, Aluminum conductor, PVC insulated, galvanized steel wire armored and PVC or PE sheath cables
CABLE CONSTRUCTION 0.6/1KV AL/PVC/SWA/PVC or PE
Cable size
Conductor typeNominal thickness of PVC insulation (mm)Approx. diameter of steel wire(mm)Nominal thickness of PVC sheath(mm)Approx. cable overall diameter(mm)Max. D.C
resistance @
200C  (Ω/km)1x10mm2RM1.01.61.817.03.081x16mm2RM1.01.61.818.11.911x25mm2RM1.21.61.816.41.201x35mm2RM1.21.61.817.10.8681x50mm2RM1.41.61.821.70.6411x70mm2RM1.41.61.823.50.4431x95mm2RM1.61.61.825.80.3201x120mm2RM1.61.61.827.40.2531x150mm2RM1.81.61.829.40.2061x185mm2RM2.01.61.931.90.1641x240mm2RM2.21.61.934.90.1251x300mm2RM2.42.02.138.90.1001x400mm2RM2.62.02.242.60.07781x500mm2RM2.82.02.346.30.06051x630mm2RM2.82.52.451.70.04691x800mm2RM2.82.52.656.40.03691x1000mm2RM3.02.52.761.50.029Note: RE= round conductor   RM = stranded conductor    SM=sectional conductor

Main technical data of 0.6/1KV, two cores, Aluminum conductor, PVC insulated, galvanized steel wire armored and PVC or PE sheath cables
CABLE CONSTRUCTION 0.6/1KV AL/PVC/SWA/PVC or PE
Cable size
Conductor typeNominal
thickness of PVC
insulation (mm)Approx. diameter
of steel wire(mm)Nominal
thickness of PVC sheath(mm)Approx. cable
overall diameter(mm)Max. D.C
resistance @
200C  (Ω/km)2x1.5mm2RE or RM0.80.81.813.518.12x2.5mm2RE or RM0.80.81.814.312.12x4mm2RE or RM1.01.251.817.17.412x6mm2RE or RM1.01.251.818.14.612x10mm2RM1.01.61.821.73.082x16mm2RM1.01.61.823.91.912x25mm2SM1.21.61.823.21.202x35mm2SM1.21.61.824.80.8682x50mm2SM1.41.61.927.50.6412x70mm2SM1.42.02.031.20.4432x95mm2SM1.62.02.234.70.3202x120mm2SM1.62.02.337.00.2532x150mm2SM1.82.52.441.30.2062x185mm2SM2.02.52.544.90.1642x240mm2SM2.22.52.749.60.1252x300mm2SM2.42.52.954.10.1002x400mm2SM2.62.53.259.30.0778Note: RE= round conductor   RM = stranded conductor    SM=sectional conductor

Main technical data of 0.6/1KV, three cores, Aluminum conductor, PVC insulated, galvanized steel wire armored and PVC or PE sheath cables
CABLE CONSTRUCTION 0.6/1KV AL/PVC/SWA/PVC or PE
Cable size
Conductor typeNominal
thickness of PVC
insulation (mm)Approx. diameter of steel
wire(mm)Nominal
thickness of PVC sheath(mm)Approx. cable
overall diameter(mm)Max. D.C
resistance @
200C  (Ω/km)3x1.5mm2RE or RM0.80.81.814.218.13x2.5mm2RE or RM0.80.81.815.112.13x4mm2RE or RM1.01.251.817.97.413x6mm2RE or RM1.01.251.819.04.613x10mm2RM1.01.61.822.43.083x16mm2RM1.01.61.824.71.913x25mm2SM1.21.61.824.31.203x35mm2SM1.21.61.826.10.8683x50mm2SM1.41.61.929.20.6413x70mm2SM1.42.02.033.10.4433x95mm2SM1.62.02.237.40.3203x120mm2SM1.62.52.341.20.2533x150mm2SM1.82.52.444.70.2063x185mm2SM2.02.52.548.80.1643x240mm2SM2.22.52.754.20.1253x300mm2SM2.42.52.959.30.1003x400mm2SM2.63.153.469.50.0778Note: RE= round conductor   RM = stranded conductor    SM=sectional conductor

Main technical data of 0.6/1KV, four cores, Aluminum conductor, PVC insulated, galvanized steel wire armored and PVC or PE sheath cables
CABLE CONSTRUCTION 0.6/1KV AL/PVC/SWA/PVC or PE
Cable size
Conductor typeNominal thickness of PVC insulation (mm)Approx. diameter of steel wire(mm)Nominal thickness of PVC sheath(mm)Approx. cable overall diameter(mm)Max. D.C
resistance @
200C  (Ω/km)4x1.5mm2RE or RM0.80.81.814.918.14x2.5mm2RE or RM0.81.251.816.712.14x4mm2RE or RM1.01.251.818.87.414x6mm2RE or RM1.01.251.820.14.614x10mm2RM1.01.61.823.93.084x16mm2RM1.01.61.826.41.914x25mm2SM1.21.61.927.81.204x35mm2SM1.21.62.030.20.8684x50mm2SM1.41.62.133.70.6414x70mm2SM1.42.02.338.30.4434x95mm2SM1.62.02.443.20.3204x120mm2SM1.62.52.647.80.2534x150mm2SM1.82.52.751.80.2064x185mm2SM2.02.52.956.90.1644x240mm2SM2.22.53.163.50.1254x300mm2SM2.43.153.471.10.1004x400mm2SM2.63.153.778.50.0778Note: RE= round conductor   RM = stranded conductor    SM=sectional conductor

Main technical data of 0.6/1KV, 3+1 cores, Aluminum conductor, PVC insulated, galvanized steel wire armored and PVC or PE sheath cables
CABLE CONSTRUCTION 0.6/1KV AL/PVC/SWA/PVC or PE

Cable size
Conductor typeNominal thickness of
PVC
insulation(mm)Approx. diameter
of steel wire(mm)Nominal thickness
of PVC
sheath
(mm)Approx. cable overall
diameter (mm)Max. D.C
resistance @
200C  (Ω/km)Phase coreEarth corePhase coreEarth corePhase coreEarth core3x2.5+1.5mm2RERE0.80.81.251.816.112.118.13x4+2.5mm2RERE1.00.81.251.818.37.4112.13x6+4mm2RERE1.01.01.251.819.84.617.413x10+6mm2RMRE1.01.01.61.823.53.084.613x16+10mm2RMRM1.01.01.61.826.21.913.083x25+16mm2SMRM1.21.01.61.828.01.201.913x35+16mm2SMRM1.21.01.61.829.60.8681.913x50+25mm2SMSM1.41.21.62.032.80.6411.203x70+35mm2SMSM1.41.22.02.137.40.4430.8683x95+50mm2SMSM1.61.42.02.341.70.3200.6413x120+70mm2SMSM1.61.42.52.446.20.2530.4433x150+70mm2SMSM1.81.42.52.549.60.2060.4433x185+95mm2SMSM2.01.62.52.754.50.1640.3203x240+120mm2SMSM2.21.62.52.960.30.1250.2533x300+150mm2SMSM2.41.82.53.165.90.1000.2063x400+185mm2SMSM2.62.03.153.574.10.07780.164Note: RE= round conductor   RM = stranded conductor    SM=sectional conductor

Main technical data of 0.6/1KV, five cores, Aluminum conductor, PVC insulated, galvanized steel wire armored and PVC or PE sheath cables
CABLE CONSTRUCTION 0.6/1KV AL/PVC/SWA/PVC or PE
Cable size
Conductor typeNominal
thickness of PVC
insulation (mm)Approx. diameter
of steel wire(mm)Nominal
thickness of PVC sheath(mm)Approx. cable
overall diameter(mm)Max. D.C
resistance @
200C  (Ω/km)5x1.5mm2RE or RM0.81.251.816.718.15x2.5mm2RE or RM0.81.251.817.812.15x4mm2RE or RM1.01.251.820.27.415x6mm2RE or RM1.01.61.822.24.615x10mm2RM1.01.61.825.73.085x16mm2RM1.01.61.928.81.915x25mm2SM1.21.61.929.61.205x35mm2SM1.22.02.033.60.8685x50mm2SM1.42.02.238.60.6415x70mm2SM1.42.02.343.10.4435x95mm2SM1.62.52.650.10.3205x120mm2SM1.62.52.754.10.2535x150mm2SM1.82.52.959.40.2065x185mm2SM2.02.53.164.90.1645x240mm2SM2.23.153.373.60.1255x300mm2SM2.43.153.680.70.100Note: RE= round conductor   RM = stra

Packaging

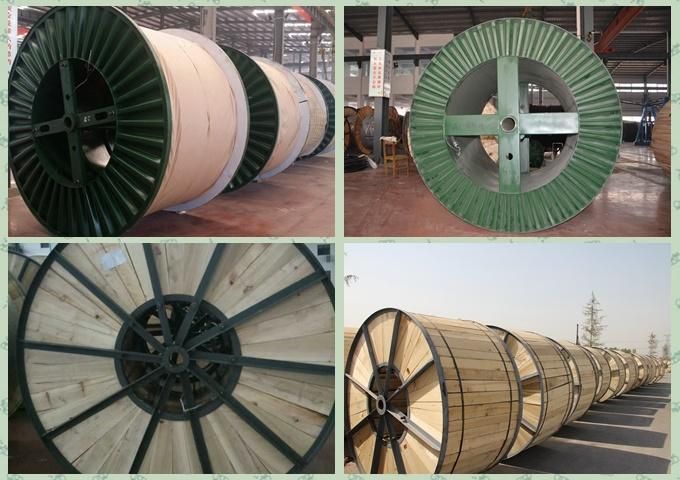

Packing Details  : Packing in wooden drum, iron-wooden drum or as customer's requirement.
Delivery Details : 15-25 days after place an order.


About US
People's Cable Group Co., Ltd. Was founded in 2007, with good transport facilities which adjacent to the 310 national highway-Lian Huo highway. Our company had 2 factories(Zhitian factory and Zhulin factory), occupies total area of more than 300,000 square meters, with building area 230,000 square meters. The real capital assets more than 10 million USD, with 630 staff members, 65 of which are professional and technical experts.
Our mainly products as follow:
1--pvc insulated electric wire whatever copper conductor,aluminum conductor, CCA(copper clad aluminum), CCS(copper clad steel).
2--pvc and xlpe insulated power cable with or without armor upto 35kv.
3--rubber cable like welding cable, mine cable, EPR cable and so on.
4--aerial bundled cable(ABC cable) up to 10kv.
5--bare conductor like AAC, AAAC, ACSR, ACAR, ACSR/AW, aluminum clad steel wire, galvanized steel wire, PC steel wire and so on.


Customer Vist
We have a professional sales team with each of them has engaged in this job for 3-10 years, so that we can provide the comprehensive and professional technology for you.
With the perfect quality and after sales service, till now we have exported to more than 80 countries, welcome to visit us and establish win-win business relationship!


Certification
As top rank of the cable supplier in China, we have obtained CCC, ISO9001, ISO14001, OHSAS certificates, passed the SGS and BV test, and our brand "RMJT" be given China famous brand.


FAQ:

I didn't find the cable which I need in this page?
If you didn't find the species of cables you need, please contact us directly, we will reply you quickly.

Are you a trading company or manufacture?
RMJT is a professional manufacturer in Henan, China.

What is the MOQ?
Mostly we sell from stock for normal items, you can buy any quantity unless its customed-made.

Can you offer me a free sample?
Yes, after price confirmation, you can require for samples to check our quality.sample is free but the freight charge should be paid.

How long get the sample?
After you pay the freight charge and send us confirmed files, the samples will be ready for delivery in 3-7 days. The samples will be sent to you via express and arrive in 3~5 days

How is your package?
Normally packed with coils and cartons, and wooden/steel wooden drums, other ways can be done according you.

How is the payment?
T/T, L/C is accepted.

What is the lead time for mass production?
Honestly, it depends on the order quantity and the season you place the order.The best record we keep is delivering 10 kilometers cable within a week. Generally speaking, we suggest that you start inquiry two months before the date you would like to get the products at your country.
