ABC Cable
Heibei Guangtong Telecom Electric Power Equipment Co., Ltd.- Type：Bare
- Conductor Type：Stranded
- Application：Overhead, Heating, Underground
- Conductor Material：Aluminum
- Material Shape：Round Wire
- Certification：ISO9001, CE
Base Info
- Model NO.：customization
- Brand：Yanling
- Transport Package：Roll
- Origin：Heibei
- HS Code：8544601200
- Production Capacity：100000ton
Description
Calculation sectionouter diameter(mm) DC resistance of no more(Ω/KM) Breaking tensile strength(N) Weight(kg
/km) aluminum steel AL steel toatal 10/2 6/1.5 1/1.5 10.6 1.77 12.37 4.50 2.706 4120 42.9 16/3 6/1.85 1/1.85 16.13 2.69 18.82 5.55 1.779 6130 65.2 25/4 6/2.32 1/2.32 25.36 4.23 29.59 6.96 1.131 9290 102.6 35/6 6/2.72 1/2.72 34.86 5.81 40.67 8.16 0.823 12630 141 50/8 6/3.20 1/3.2 48.25 8.04 56.29 9.60 0.5946 16870 195.1 50/30 12/2.32 7/2.32 50.73 29.59 80.32 11.60 0.5692 42620 372 70/10 6/3.80 1/3.8 68.05 11.34 79.39 11.40 0.4217 23390 275.2 70/40 12/2.72 7/2.72 69.73 40.67 110.40 13.60 0.4141 58300 511.3 95/15 26/2.15 7/1.67 94.39 15.33 109.72 13.61 0.3058 35000 380.8 95/20 7/4.16 7/1.85 95.14 18.85 113.96 13.87 0.3019 37200 408.9 95/55 12/3.2 7/3.2 96.51 56.30 152.81 16.00 0.2992 78110 707.7 120/20 26/2.38 7/1.85 118.89 18.82 134.49 15.07 0.2496 41000 466.8 120/25 7/4.72 7/2.1 122.48 24.25 146.73 15.74 0.2345 47880 526.6 120/70 12/3.6 7/3.6 122.15 71.25 193.40 18.00 0.2364 98370 895.6 150/8 18/3.2 1/3.2 144.76 8.04 152.80 16.00 0.1989 32860 461.4 150/20 24/2.78 7/1.85 145.68 18.82 164.50 16.67 0.198 46630 549.4 150/25 26/2.7 7/2.1 148.86 24.25 173.11 17.10 0.1939 54110 601 150/35 3/2.5 7/2.5 147.26 34.36 181.62 17.50 0.1962 65020 676.2 185/25 24/3.15 7/2.1 187.14 24.25 211.29 18.90 0.1542 59420 706.1 185/30 26/2.98 7/2.32 181.34 29.59 210.93 18.88 0.1592 64320 732.6 185/45 30/2.80 7/2.8 184.73 43.10 227.43 19.60 0.1564 80190 848.2 210/10 18/3.8 1/3.8 204.14 11.34 215.48 19.00 0.1411 45140 650.7 210/25 24/33 7/2.22 209.02 27.10 236.12 19.98 0.138 65990 789.9 210/35 26/3.22 7/2.5 211.73 34.36 240.09 20.38 0.1363 74250 853.9 210/50 30/2.98 7/2.97 209.24 48.82 258.06 20.86 0.1381 90830 960.8 240/30 24/3.6 7/2.4 244.29 31.67 275.96 21.60 0.1181 75620 922.5 240/40 26/3.42 7/2.66 238.85 38.9 277.75 21.66 0.1209 83370 964.3 240/55 30/3.20 7/3.2 241.27 56.30 297.57 22.40 0.1198 102100 1108 300/15 42/3.0 7/1.67 296.88 15.33 312.21 23.01 0.097 68060 939.8 300/20 45/2.93 7/1.95 303.42 20.91 324.33 23.43 0.0952 75680 1002 300/25 48/2.85 7/2.22 306.21 27.10 333.31 23.76 0.09433 83410 1058 300/40 24/3.99 7/2.66 300.09 38.90 338.99 23.94 0.09614 92220 1133 300/50 36/3.83 7/2.98 299.54 48.52 348.36 24.26 0.09636 103400 1210 300/70 30/3.6 7/3.6 305.36 71.25 376.61 25.20 0.09463 128000 1402 400/20 42/3.51 7/1.95 406.40 20.91 427.31 26.91 0.07104 88850 1286 400/25 45/3.33 7/2.22 391.91 27.10 419.01 26.64 0.07370 95940 1295 400/35 48/3.22 7/2.5 390.88 34.36 425.24 26.82 0.07389 103900 1349 400/50 54/3.07 7/3.07 399.73 51.82 451.55 27.63 0.07232 123400 1511 400/65 26/4.42 7/3.44 398.94 65.06 464.00 28.00 0.07236 135200 1611 400/95 30/4.16 19/2.5 407.75 93.27 501.02 29.14 0.07087 171300 1860 500/35 54/3.75 7/2.5 497.01 34.36 531.37 30.00 0.05812 119500 1642 400/45 48/3.6 7/2.8 488.58 43.10 531.68 30.00 0.05912 128100 1688 500/55 54/3.44 7/3.44 501.88 65.06 566.94 30.96 0.0576 154000 1897 630/45 45/4.2 7/2.8 623.45 43.10 666.55 33.6 0.04633 148700 2060 630/55 48/4.12 7/320 639.92 56.30 696.22 34.32 0.04514 164400 2209 630/80 54/3.87 19/2.32 635.19 80.32 715.51 34.82 0.04551 192900 2388 880/55 45/4.8 7/3.2 814.30 56.30 870.60 38.40 0.03547 191500 2690 800/70 48/4.63 7/3.6 808.15 71.25 879.40 38.58 0.03574 20700 2791 800/100 54/4.33 19/2.6 795.17 100.98 896.05 38.98 0.03635 241100 2991

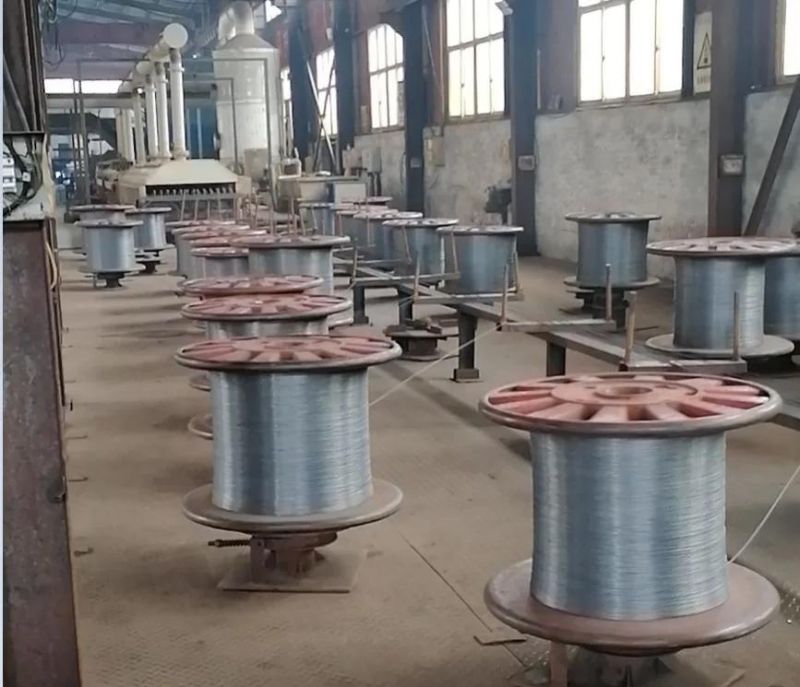

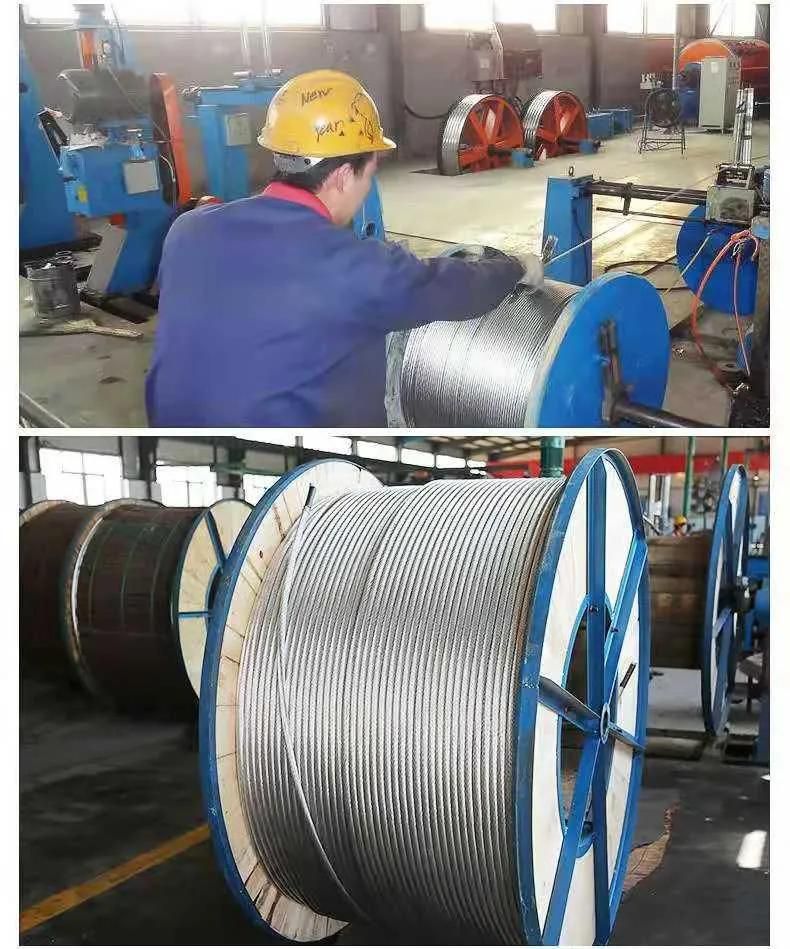

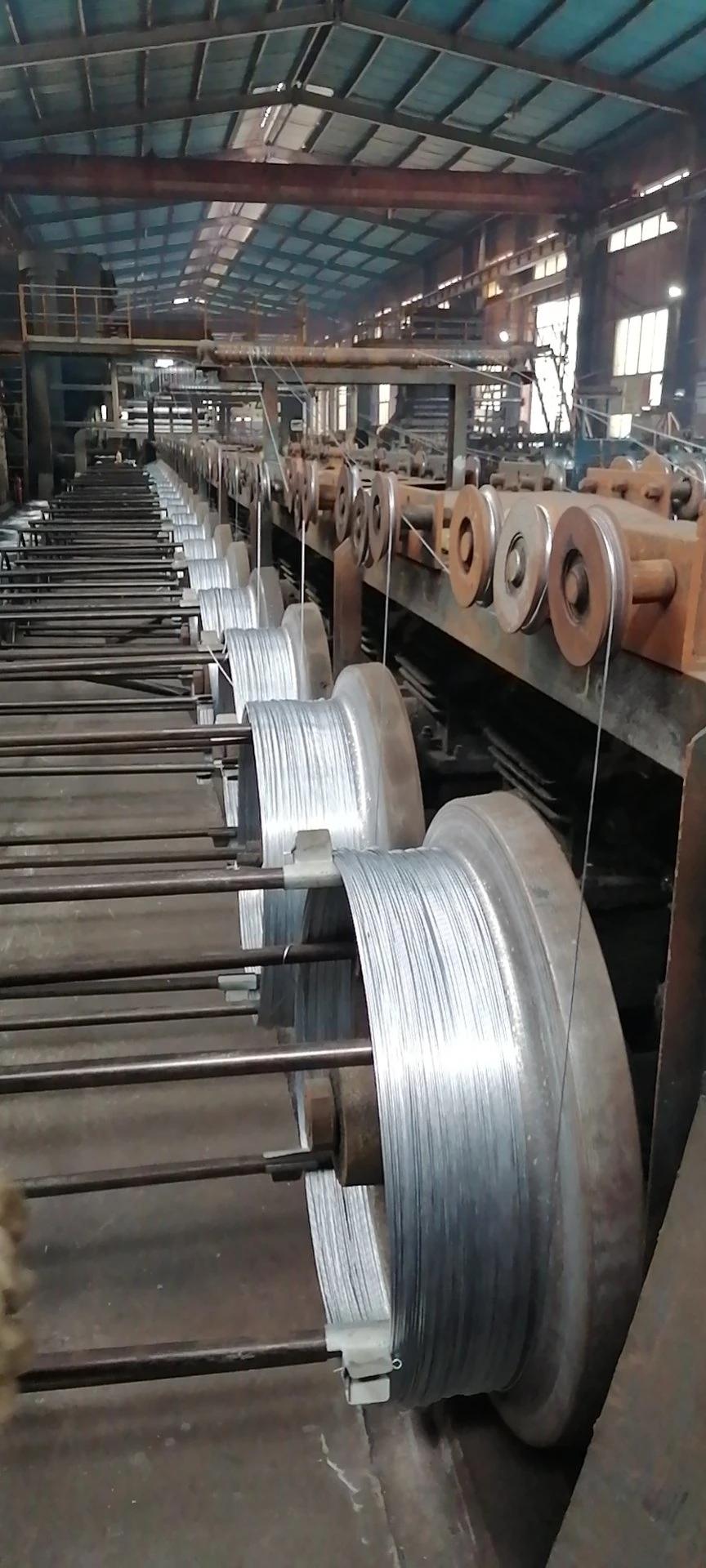

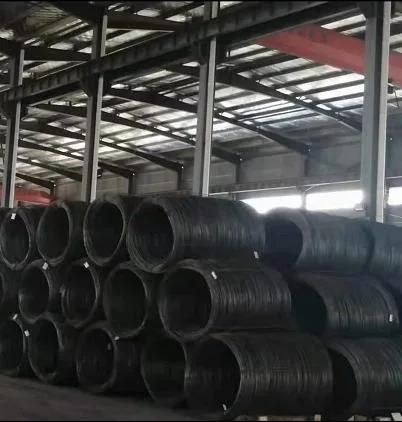

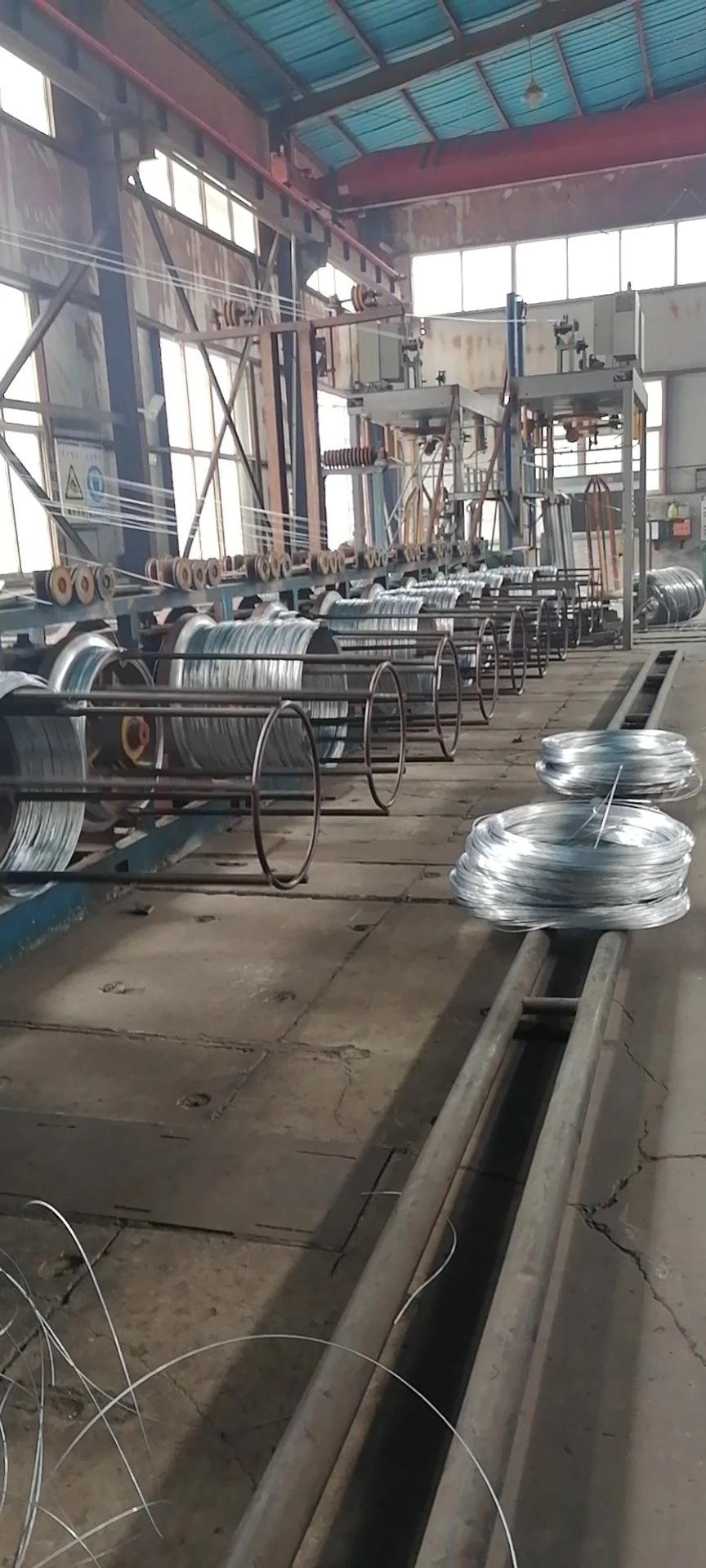

Factory introduction

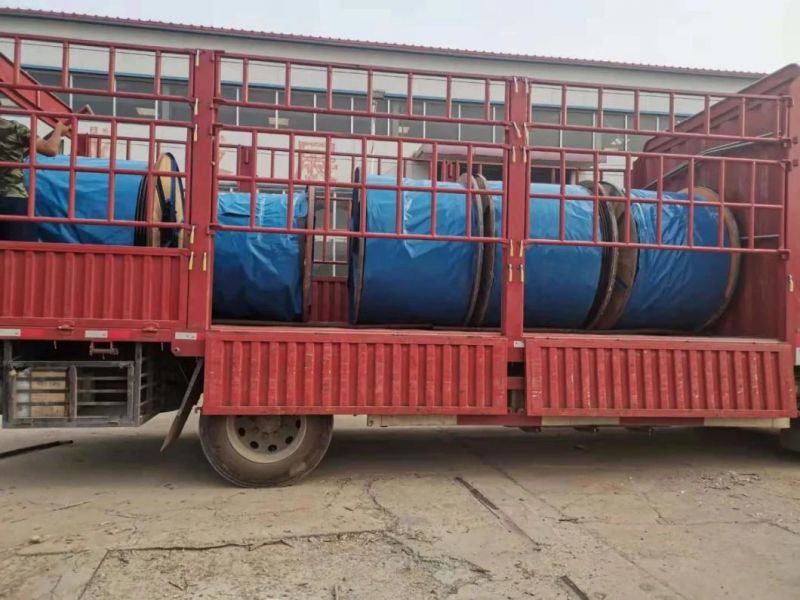

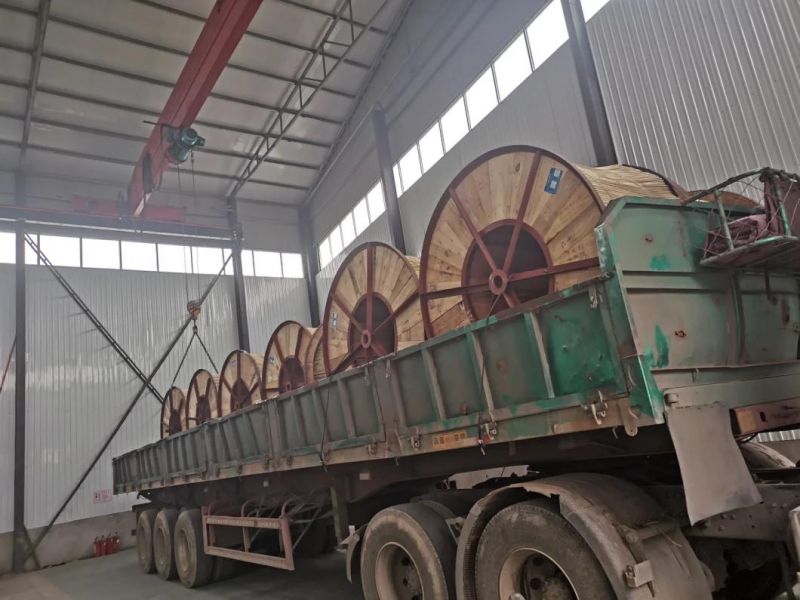

Packing & Delivery
FAQ
Q1:Are you a factory or a trader?
A1:We are the factory, you are welcome to visit the factory
Q2: What is your payment terms?
A2: 100% in advance & 30% deposite, 70% balance before shipment.(Credit card,T/T)Q3: Do you provide samples free of charge?
A3: Yes,but the shipping cost should be on buyer's account.
Q4: Do you provide after-sales service?
A4: Yes.If you find that the goods have quality problems,Please submit proof file, picture, video to us,We will investigate and give you a satisfactory solution
