• Model NO.：GD-PV1-F
• Certification：TUV,ISO9001
• Wire Core Material：Red Copper Wire

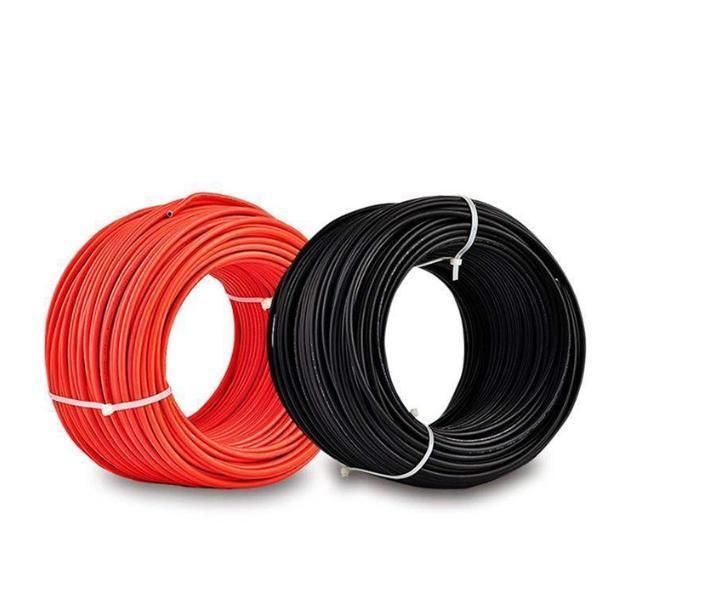

• Item Name：XLPE Insulated PV Solar Electric Power Cable
• Model No：PV1-F
• Weathering Resistance：Sun Resistant
• Nominal Voltage：DC:1.5V AC :1.0,1.0kv
• Voltage Test on Completed Cable：AC:6.5kv DC :15kv,5min
• Transport Package：Plastic Drum+Wooden Box,Wooden Pallet; Poly Bag

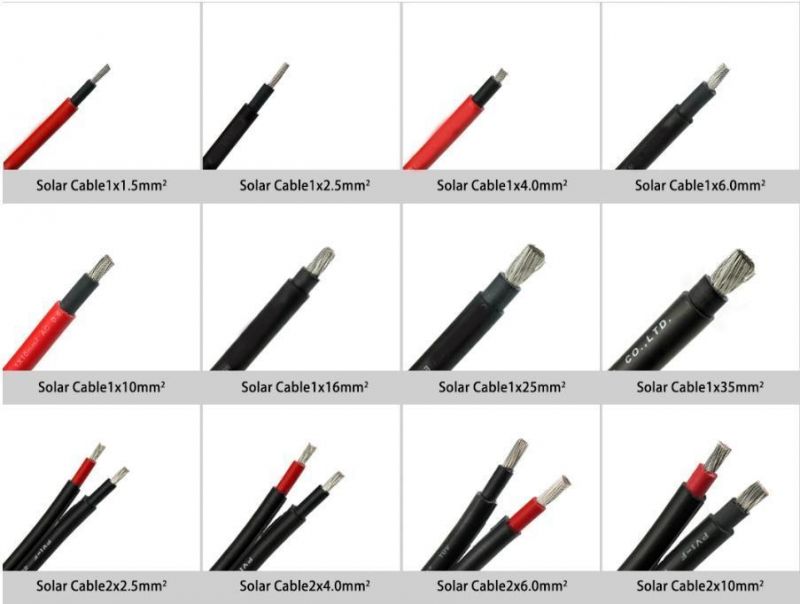

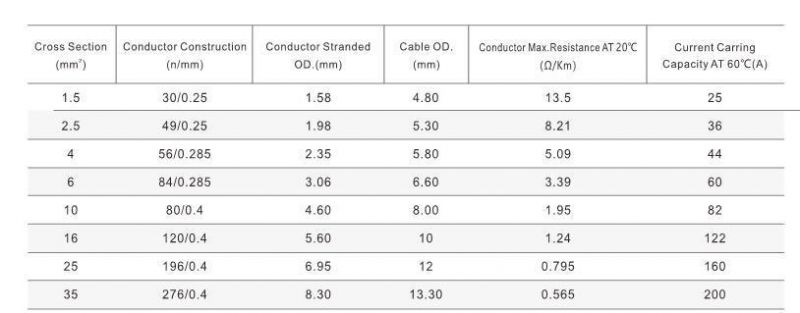

• Specification：1.5mm2, 2.5mm2, 4.0mm2, 6.0mm2, 10.0mm2, 16.0mm2
• Trademark：Golden Electric or Customize
• Origin：China
• HS Code：8543709990
• Production Capacity：5000,Month

Basic Info.

Model NO. GD-PV1-F Certification TUV,ISO9001 Wire Core Material Red Copper Wire Item Name XLPE Insulated PV Solar Electric Power Cable Model No PV1-F Weathering Resistance Sun Resistant Nominal Voltage DC:1.5V AC :1.0/1.0kv Voltage Test on Completed Cable AC:6.5kv DC :15kv,5min Transport Package Plastic Drum+Wooden Box/Wooden Pallet; Poly Bag Specification 1.5mm2, 2.5mm2, 4.0mm2, 6.0mm2, 10.0mm2, 16.0mm2 Trademark Golden Electric or Customize Origin China HS Code 8543709990 Production Capacity 5000/Month

Product Description

Product Description:

1.Cable Full Name: Halogen-free low smoke cross-linked polyolefin
insulated and sheathed cables for photovoltaic power generation systems

2.Conductor Structure: EN60228(IEC60228. GB/T3956)Type five
conductor and must be tinned copper wire.

3.Cable Color: Black or Red (The insulation material shall be extruded
halogen-free material, which shall be composed of one
layer or several tightly adhered layers. The insulation
shall be solid and uniform in material, and the insulation
itself, the conductor and the tin layer shall be as far as
possible not damaged when the insulation is peeled off)

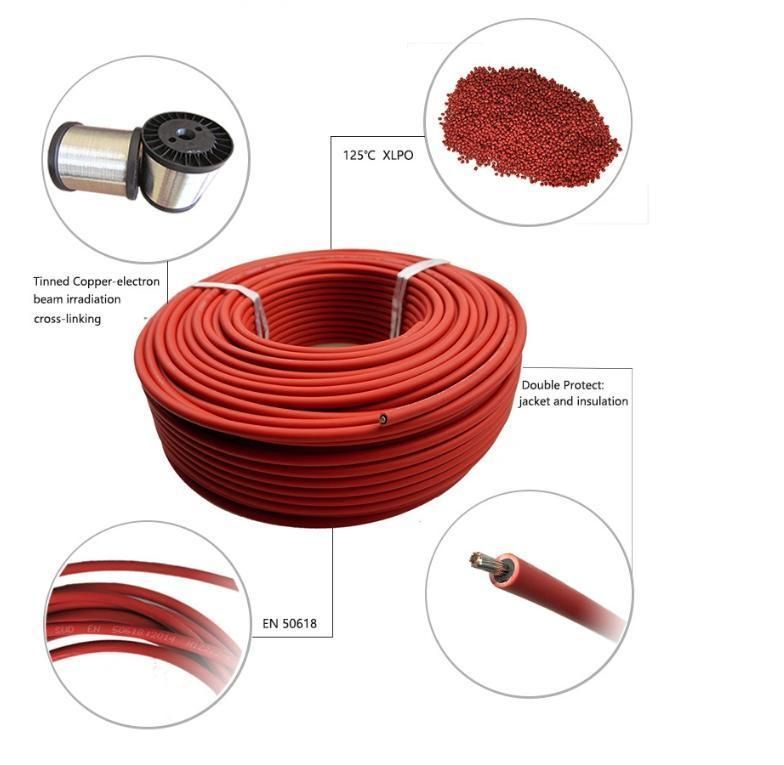

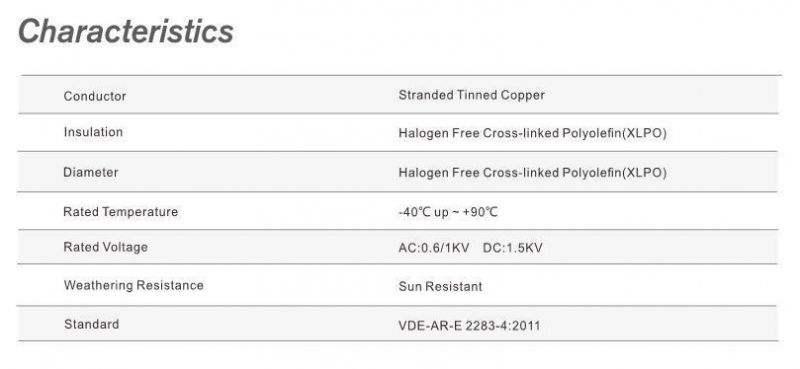

4.Cable Characteristics: Double insulated construction. Higher systems
bear voltage, UV radiation. Low and High tem
perature resistant environment.

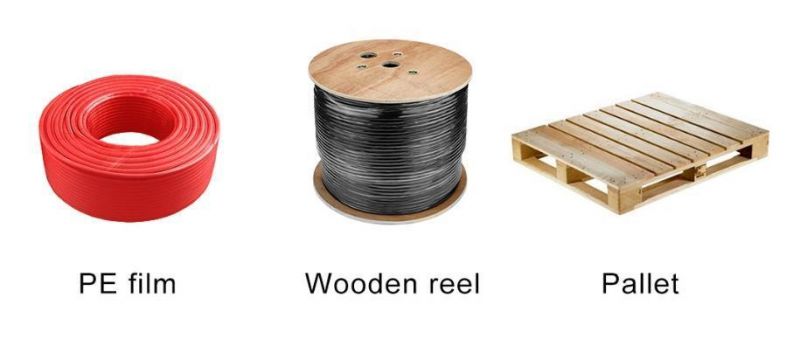

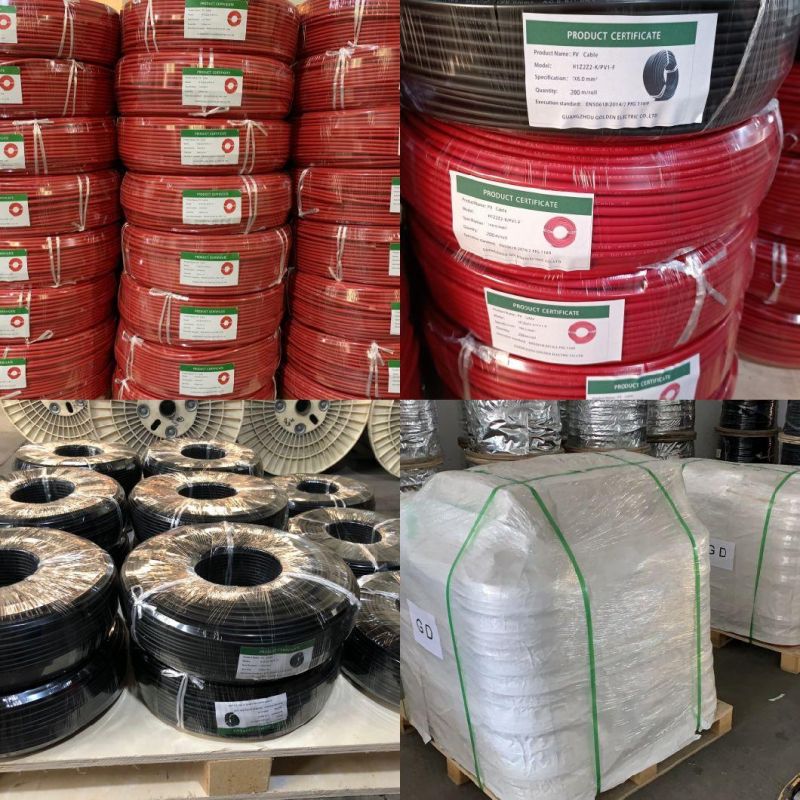

Package:

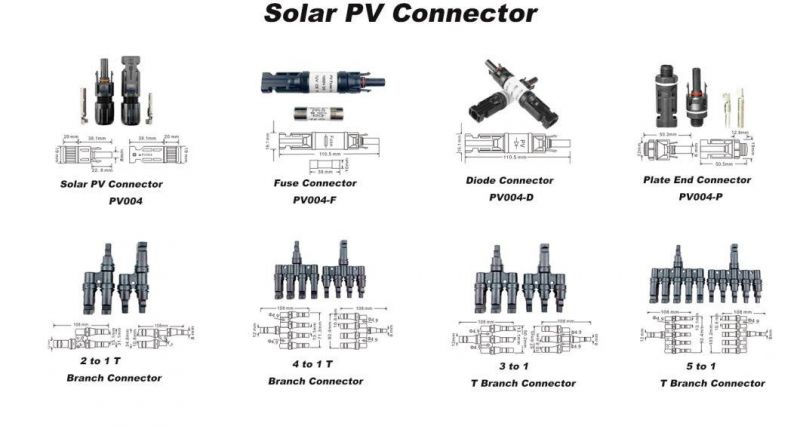

Connector series:

FAQ:
Q:Where are the photovoltaic cables used?
A:Photovoltaic cables are used to connect solar cell modules and inverters.
Q: Which size of cables should I choose?
A: 4mm2 (12AWG) can be used no matter how many SOLAR panels are in series and the single string output current does not exceed 15A. After the convergence of several branches of the main output, depending on the situation, can consult us.
Q: How long is the service life of photovoltaic cable?
A: Without additional protection, it can be used for more than 20 years in outdoor ventilation and dry conditions.
Q: What other features do photovoltaic cables have?
A: Conditions of use -40C~+90C, low smoke, halogen free, flame retardant, anti ultraviolet radiation.
Q: How to order?
A: After confirming product name, model, specification, quantity and packing method with our business manager, we will send PI to you.After your payment is complete We will deliver the goods on the agreed time.
