CATV Qr500/540 Trunk Coaxial Cable with Messenger

Hangzhou Softel Optic Co., Ltd.
  • Application：Local Communication Cable, Coaxial Cable, Long Distance Symmetric Cable, RF Cable
  • Conductor Material：BC,CCS,CCA,TC,CU,CCAG
  • Cover Material：PE
  • Type：Cat 6
  • Material Shape：Round Wire
  • Conductor Type：Stranded

Base Info

  • Model NO.：QR540
  • Wire Core Material：CCS
  • Certification：CE, ISO, RoHS, CCC, UL
  • Model：Qr540
  • Brand：Softel
  • Product Name：Qr540 Coaxial Cable
  • Nominal Impedance：75+,-3ohm
  • Nominal Velocity of Propagation：88%
  • Nominal Capacitance：50+,-3pf,M
  • Sparker Test：4000avc
  • 4000：>20db
  • out Sheath：PE
  • Messenger：7*1.6mm
  • Package：1km,Roll
  • Export Packing：Wooden Drum
  • Transport Package：Wooden Drum
  • Specification：Grade A
  • Trademark：SOFTEL
  • Origin：China Mainland
  • HS Code：85176229
  • Production Capacity：1, 000.000km

Description

Overview

Product Description

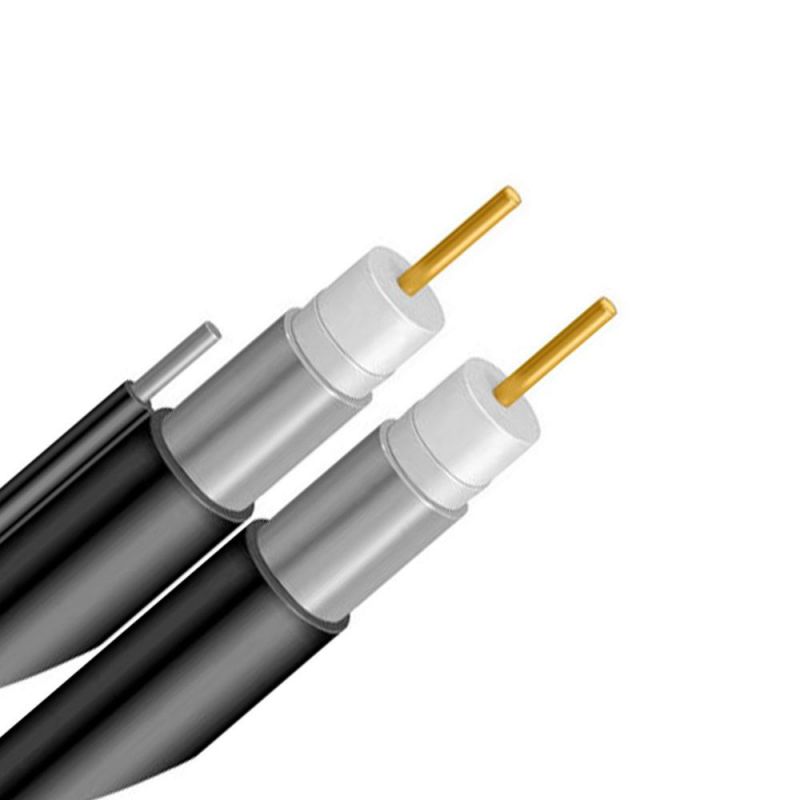

CATV Qr500/540 Trunk Coaxial Cable with Messenger



1. Center conductor: Φ 0.124(3.15mm) solid copper or CCA

2. Dielectric: Φ 0.514(13.05mm)foam PE

3. Shield: Aluminum tube, thickness 0.540(13.72mm)

4. Jacket: Φ 0.610 (15.49mm) (LDPE) thickness: 0.0357(0.89mm)

5. Jelly/ADP: Per customer special requirement



Mechanical characteristic


1. Minimum Bend Radius: 4.0(10.2cm)

2. Maximum pulling tension=220Ibs. (100kgf)


Electrical performance

1. Impedance: 75+/-2 Ohm

2. Capacitance: 50+3pF/m

3. The velocity of Propagation: 88%

4. Nominal DC loop resistance@ 68° F: 4.27 Ohms/1000 ft. (14.01 Ohms/km)



Description:

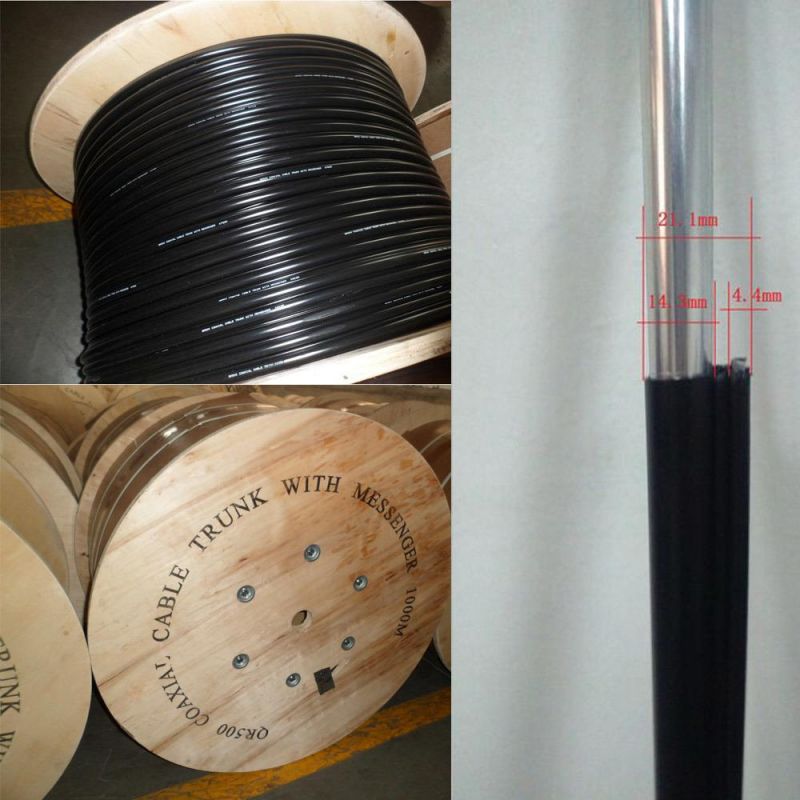

Detailed Photos

CATV Qr500/540 Trunk Coaxial Cable with MessengerCATV Qr500/540 Trunk Coaxial Cable with MessengerCATV Qr500/540 Trunk Coaxial Cable with MessengerCATV Qr500/540 Trunk Coaxial Cable with MessengerCATV Qr500/540 Trunk Coaxial Cable with Messenger

Product Parameters



ITEM540540JCA540MCenter conductor3.15mm BC/CCA3.15mm BC/CCA3.15mm BC/CCADielectric13.03mm Foam PE13.03mm Foam PE13.03mm Foam PEOuter conductorMaterial13.72mm Al13.72mm Al13.72mm Al Nom. Thick0.25mm/0.6mm0.25mm/0.6mm0.25mm/0.6mmJacketMaterial15.49mm PE15.49mm PE15.49mm PE Nom. Thick0.89mm0.89mm0.89mmMessenger//2.77mm/7*1.6mm

Packaging & Shipping

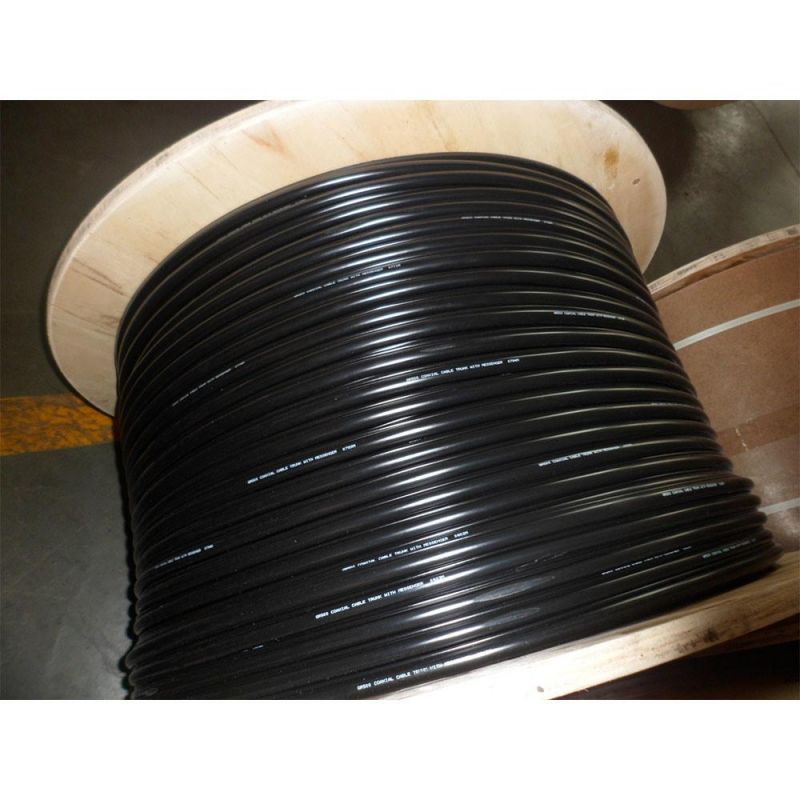

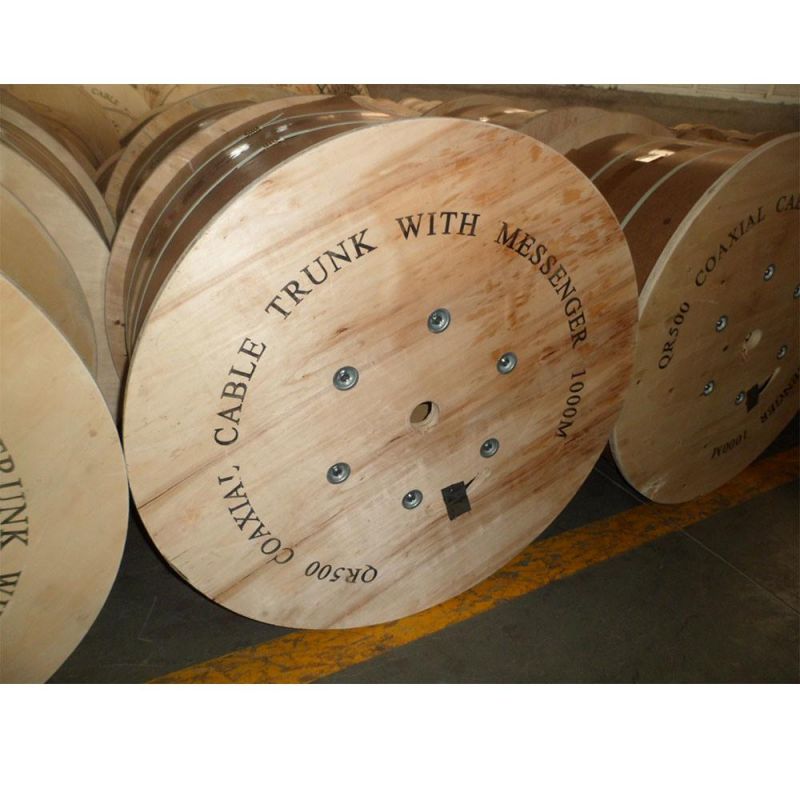

CATV Qr500/540 Trunk Coaxial Cable with Messenger

Company Profile

CATV Qr500/540 Trunk Coaxial Cable with Messenger
