• Model NO.：AAA
• Model：AAC
• Brand：Feiya
• OEM&ODM：Yes
• Other Service：Can Be Customized
• Colors：Can Be Customized
• Armour/Earth Conductor：Steelworks, But Also at Low Temperatures.
• Transport Package：Wooden Box Packing or Pallet Shipping Containers
• Specification：Silicone Rubber,
• Trademark：Feiya
• Origin：China
• HS Code：8544492100
• Production Capacity：80000 Meter,Meters Per Month

Basic Info.

Model NO. AAA Model AAC Brand Feiya OEM&ODM Yes Other Service Can Be Customized Colors Can Be Customized Armour/Earth Conductor Steelworks, But Also at Low Temperatures. Transport Package Wooden Box Packing or Pallet Shipping Containers Specification Silicone Rubber/ Trademark Feiya Origin China HS Code 8544492100 Production Capacity 80000 Meter/Meters Per Month

Product Description

Electrical Properties

Density@20ºC	2.703 kg/dm
Temperature Coefficient@20°C	0.00403 (°C)
Resistivity@20°C	0.028264
Linear Expansivity	23 x10-6 (°C)

Service Conditions

Ambient Temperature	-5°C - 50°C
Wind Pressure	80 - 130kg/m2
Seismic Acceleration	0.12 - 0.05g
Isokeraunic Level	10 - 18
Relative Humidity	5 - 100%



Construction Parameters

BS 215 PART 1

CODE	NOMINAL AREA	STRANDING	OVERALL DIAMETER	WEIGHT	RATED STRENGTH	ELECTRICAL RESISTANCE	CURRENT RATING*
NOMINAL	TEORICAL
	MM²	MM²	NO.×MM	MM	KG/KM	KN	Ω/KM	A
Midge	22	23.33	7/2.06	6.18	64	3.99	1.227	106
Gnat	25	26.8	7/2.21	6.6	73.8	4.83	1.0643	122
Mosquito	35	37	7/2.59	7.8	102.1	6.27	0.7749	141
Ladybird	40	42.8	7/2.79	8.4	117.9	7.28	0.6678	157
Ant	50	52.83	7/3.1	9.3	145	8.28	0.5419	175
Fly	60	63.55	7/3.4	10.2	174	9.9	0.4505	196
Wasp	100	106	7/4.39	13.17	290	16	0.2702	268
Hornet	150	157.6	19/3.25	16.25	434	25.7	0.1825	342
Charfer	200	213.2	19/3.78	18.9	587	35.4	0.1349	412
Cockroach	250	265.7	19/4.22	21.1	731	40.4	0.1083	471
Butterfly	300	322.7	19/4.65	23.25	888	48.75	0.08916	530
Centipede	400	415.2	37/3.78	26.46	1145	63.1	0.06944	616
Maybug	475	486,1	37/4,09	28,6	1342	0.05571	0,05900	740
Skorpion	500	529,8	37/4,27	29,9	1460	0.04916	0,05400	887
Cicada	600	628,3	37/4,65	32,6	1733	0.03423	0,04500	1056

Note: *The values of current rating mentioned in above Table are based on wind velocity of 0.6 metre/second, solar heat radiation of 1200 watt/metre2, ambient temperature of 50° C & conductor temperature of 80°C.

BS EN 50182

CODE	NOMINAL AREA	STRANDING	OVERALL DIAMETER	WEIGHT	RATED STRENGTH	ELECTRICAL RESISTANCE	CURRENT RATING*
NOMINAL	TEORICAL
	MM²	MM²	NO.×MM	MM	KG/KM	KN	Ω/KM	A
Gnat	25	26.9	7/2.21	6.63	73	4.83	1.0643	115
Mosquito	35	36.9	7/2.59	7.77	101	6.27	0.7749	140
Ladybird	40	42.8	7/2.79	8.37	117	7.28	0.6678	154
Bluebottle	70	73.6	7/3.66	10.98	201	11.78	0.388	215
Earwig	75	78.6	7/3.78	11.34	215	12.57	0.3638	223
Grasshopper	80	84.1	7/3.91	11.73	230	13.45	0.34	233
Clegg	90	95.6	7/4.17	12.51	261	15.3	0.2989	252
Beetle	100	106.4	19/2.67	13.35	292	18.08	0.2701	269
Bee	120	132	7/4.90	14.7	361	21.12	0.2165	307
Spider	220	237.6	19/3.99	19.95	653	38.01	0.121	440
Moth	350	373.1	19/5.00	25	1025	59.69	0.077	579
Drone	350	372.4	37/3.58	25.06	1027	59.59	0.0774	577
Maybug	450	486.1	37/4.09	28.63	1341	77.78	0.0593	677
Scorpion	500	529.8	37/4.27	29.89	1461	84.77	0.0544	713
Cicada	600	628.3	37/4.65	32.55	1733	100.54	0.0459	788

Note: *The values of current rating mentioned in above Table are based on wind velocity of 0.6 metre/second, solar heat radiation of 1200 watt/metre2, ambient temperature of 50° C & conductor temperature of 80°C.

IEC 61089

CODE	NOMINAL AREA	STRANDING	OVERALL DIAMETER	WEIGHT	RATED STRENGTH	ELECTRICAL RESISTANCE	CURRENT RATING*
MM²	NO.×MM	MM	KG/KM	KN	Ω/KM	A
10	10	7/1.35	4.05	27.4	1.95	2.8633	62
16	16	7/1.71	5.13	43.8	3.04	1.7896	84
25	25	7/2.13	6.39	68.4	4.5	1.1453	110
40	40	7/2.70	8.1	109.4	6.8	0.7158	147
63	63	7/3.39	10.17	172.3	10.39	0.4545	195
100	100	19/2.59	12.95	274.8	17	0.2877	259
125	125	19/2.89	14.45	343.6	21.25	0.2302	297
160	160	19/3.27	16.35	439.8	26.4	0.1798	345
200	200	19/3.66	18.3	549.7	32	0.1439	396
250	250	19/4.09	20.45	687.1	40	0.1151	454
315	315	37/3.29	23.03	867.9	51.97	0.0916	522
400	400	37/3.71	25.97	1102	64	0.0721	603
450	450	37/3.94	27.58	1239.8	72	0.0641	647
500	500	37/4.15	29.05	1377.6	80	0.0577	688
560	560	37/4.39	30.73	1542.9	89.6	0.0515	736
630	630	61/3.63	32.67	1738.3	100.8	0.0458	789
710	710	61/3.85	34.65	1959.1	113.6	0.0407	845
800	800	61/4.09	36.81	2207.4	128	0.0361	905
900	900	61/4.33	38.97	2483.3	144	0.0321	967
1000	1000	61/4.57	41.13	2759.2	160	0.0289	1026
1120*	1120	91/3.96	43.56	3093.5	179.2	0.0258	1091
1250*	1250	91/4.18	45.98	3452.6	200	0.0231	1157
1400*	1400	91/4.43	48.73	3866.9	224	0.0207	1226
1500*	1500	91/4.58	50.38	4143.1	240	0.0193	1270

* The items marked with "*" are not in our current product range and the details are for information only.

(*) Note: The values of current rating mentioned in above Table are based on wind velocity of 0.6 metre/second, solar heat radiation of 1200 watt/metre2, ambient temperature of 50° C & conductor temperature of 80°C.

ASTM B 231/B 231M

CODE	NOMINAL AREA	STRANDING	OVERALL DIAMETER	WEIGHT	RATED STRENGTH	ELECTRICAL RESISTANCE	CURRENT RATING*
	AWG&MCM	MM²	NO.×MM	MM	KG/KM	KN	Ω/KM	A
Peachbell	6	13.3	7/1.56	4.68	36.6	2.53	2.1477	75
Rose	4	21.1	7/1.96	5.88	58.2	3.91	1.3606	99
Iris	2	33.6	7/2.47	7.41	92.6	5.99	0.8567	132
Pansy	1	42.4	7/2.78	8.34	116.6	7.3	0.6763	153
Poppy	1/0.0	53.5	7/3.12	9.36	147.2	8.84	0.5369	176
Aster	2/0.0	67.4	7/3.50	10.5	185.7	11.1	0.4267	203
Phlox	3/0.0	85	7/3.93	11.79	233.9	13.5	0.3384	234
Oxlip	4/0.0	107.2	7/4.42	13.26	295.2	17	0.2675	270
Valerian	250	126.7	19/2.91	14.55	348.6	20.7	0.2274	299
Sneezewort	250	126.7	7/4.80	14.4	348.8	20.1	0.2269	299
Laurel	266.8	135.2	19/3.01	15.05	372.2	22.1	0.2125	312
Daisy	266.8	135.2	7/4.96	14.88	372.3	21.4	0.2125	311
Peony	300	152	19/3.19	15.95	418.3	24.3	0.1892	335
Tulip	336.4	170.5	19/3.38	16.9	469.5	27.3	0.1686	359
Daffodil	350	177.3	19/3.45	17.25	487.9	28.4	0.1618	369
Canna	397.5	201.4	19/3.67	18.35	554.9	31.6	0.143	397
Goldentuft	450	228	19/3.91	19.55	627.6	35	0.126	429
Syringa	477	241.7	37/2.88	20.16	664.8	38.6	0.1192	444
Cosmos	477	241.7	19/4.02	20.1	664.8	37	0.1192	444
Hyacinth	500	253.3	37/2.95	20.65	696.8	40.5	0.1136	458
Zinnia	500	253.3	19/4.12	20.6	697.1	38.9	0.1134	458
Dahlia	556.5	282	19/4.35	21.75	775.8	43.3	0.1018	489
Mistletoe	556.5	282	37/3.12	21.84	775.7	44.3	0.1016	490
Meadowsweet	600	304	37/3.23	22.61	836.3	47.5	0.0948	511
Orchid	636	322.3	37/3.33	23.31	886.9	50.4	0.0892	530
Heuchera	650	329.4	37/3.37	23.59	907.4	51.7	0.0871	538
Flag	700	354.7	61/2.72	24.48	975.8	57.1	0.0811	561
Varbena	700	354.7	37/3.49	24.43	975.7	55.4	0.0812	561
Nasturtium	715.5	362.6	61/2.75	24.75	998.5	58.4	0.0793	569
Violet	715.5	362.6	37/3.53	24.71	998.5	56.7	0.0794	568
Cattail	750	380	61/2.82	25.38	1046	60.3	0.0754	587
Petunia	750	380	37/3.62	25.34	1046	58.6	0.0755	586
Lilac	795	402.8	61/2.90	26.1	1110	63.8	0.0713	607
Arbutus	795	402.8	37/3.72	26.04	1109	61.8	0.0715	605
Snapdragon	900	456	61/3.09	27.81	1256	70.8	0.0628	654
Cockscomb	900	456	37/3.96	27.72	1256	68.4	0.0631	652
Goldenrod	954	483.4	61/3.18	28.62	1331	75	0.0593	677
Magnolia	954	483.4	37/4.08	28.56	1331	72.6	0.0594	676
Camellia	1000	506.7	61/3.25	29.25	1394	78.3	0.0568	695
Hawkweed	1000	506.7	37/4.18	29.26	1395	76.2	0.0566	696
Larkspur	1033.5	523.7	61/3.31	29.79	1442	81.3	0.0547	710
Bluebell	1033.5	523.7	37/4.25	29.75	1441	78.8	0.0547	710
Marigold	1113	564	61/3.43	30.87	1553	87.3	0.051	740
Hawthorn	1192.5	604.2	61/3.55	31.95	1662	93.5	0.0476	771
Narsissus	1272	644.5	61/3.67	33.03	1774	98.1	0.0445	802
Columbine	1351	694.8	61/3.78	34.02	1884	104	0.042	829
Carnation	1431	725.1	61/3.89	35.01	1997	108	0.0396	858
Gladiolus	1510.5	765.4	61/4.00	36	2108	114	0.0375	885
Coreopsis	1590	805.7	61/4.10	36.9	2216	120	0.0357	911
Jassamine	1750	886.7	61/4.30	38.7	2442	132	0.0324	962
Cowslip*	2000	1013	91/3.77	41.47	2787	153	0.0286	1032
Sagebrush*	2250	1140	91/3.99	43.89	3166	167	0.0255	1099
Lupine*	2500	1267	91/4.21	46.31	3519	186	0.0229	1163
Bitterrot*	2750	1393	91/4.42	48.62	3872	205	0.0208	1223
Trillium*	3000	1520	127/3.90	50.7	4226	223	0.0193	1271
Bluebonnet*	3500	1773	127/4.22	54.86	4977	261	0.0165	1373

* The items marked with "*" are not in our current product range and the details are for information only.

(*) Note: The values of current rating mentioned in above Table are based on wind velocity of 0.6 metre/second, solar heat radiation of 1200 watt/metre2, ambient temperature of 50° C & conductor temperature of 80°C.

DIN 48201 PART 5

NOMINAL AREA	STRANDING	OVERALL DIAMETER	WEIGHT	RATED STRENGTH	ELECTRICAL RESISTANCE	CURRENT RATING*
NOMINAL	TEORICAL
MM²	MM²	NO.×MM	MM	KG/KM	KN	Ω/KM	A
16	15.89	7/1.70	5.1	43	2.84	1.8022	83
25	24.25	7/2.10	6.3	66	4.17	1.181	108
35	34.36	7/2.50	7.5	94	5.78	0.8333	134
50	49.48	7/3.00	9	135	7.94	0.5787	168
50	48.35	19/1.80	9	133	8.45	0.5951	166
70	65.81	19/2.10	10.5	181	11.32	0.4372	200
95	93.27	19/2.50	12.5	256	15.68	0.3085	248
120	116.99	19/2.80	14	322	18.78	0.2459	285
150	147.11	37/2.25	15.8	406	25.3	0.196	328
185	181.62	37/2.50	17.5	500	30.54	0.1588	373
240	242.54	61/2.25	20.3	670	39.51	0.1191	445
300	299.43	61/2.50	22.5	827	47.7	0.0965	506
400	400.14	61/2.89	26	1104	60.86	0.0722	602
500	499.83	61/3.23	29.1	1379	74.67	0.0578	688
625*	626.2	91/2.96	32.6	1732	95.25	0.0462	786
800*	802.09	91/3.35	36.9	2218	118.39	0.036	907
1000*	999.71	91/3.74	41.1	2767	145.76	0.0289	1026

* The items marked with "*" are not in our current product range and the details are for information only.

(*) Note: The values of current rating mentioned in above Table are based on wind velocity of 0.6 metre/second, solar heat radiation of 1200 watt/metre2, ambient temperature of 50° C & conductor temperature of 80°C.

Technical Data

NUMBERS OF WIRES	FINAL MODULES OF ELASTICITY	COEFICIENT OF LINEAR EXPANSION
AL	KG/MM²	LB/IN²	1/Cº	1/Fº
7	6000	8.5 x106	23.0 x10-6	112.8 x10-6
19	5700	8.1 x106	23.0 x10-6	112.8 x10-6
37	5700	8.1 x106	23.0 x10-6	112.8 x10-6
61	5500	7.8 x106	23.0 x10-6	112.8 x10-6
91	5500	7.8 x106	23.0 x10-6	112.8 x10-6

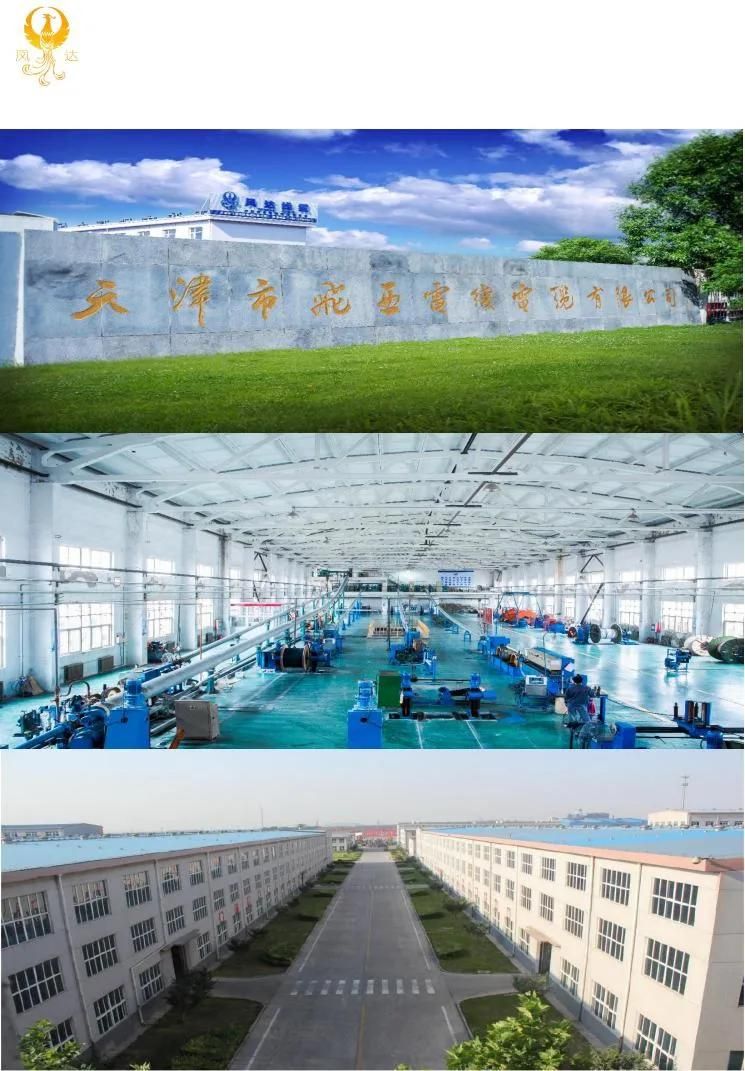

our factory



Packing

Our CE


FAQ
Q: Can you make the product as per client's requirement?
A: Yes, we can make it with your exact requirement.

Q: What are your payment terms?
A: T/T (50%-90% as despot, the rest will be paid before delivery), L/C at sight

Q: Can I visit your factory before the order?
A: Yes, welcome to our factory to check the quality.

Q: Where is your nearest loading port?
A:Tianjin in China

Q: Do you accept small quantity order?
A: Of course we do.

Q: Can we choose different material?
A: Yes, the material can be chose according to your requirement.

Q: And what is your shipment and delivery time?
A: By sea. Normally 7 to 14 Days for delivery, according to your order quantity.

Q: And what's your packing?
A: carton cases inside, export wooden cases outside.
