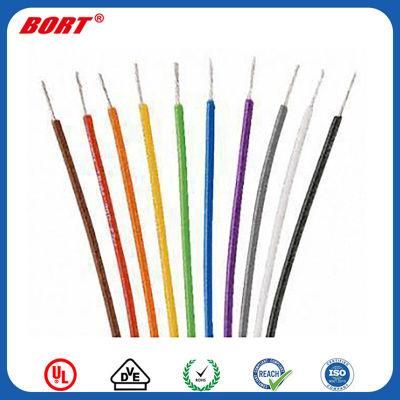

High Quality Flry-a Single Core Automotive Wire
CB (XIAMEN) INDUSTRIAL CO., LTD.- Type：Insulated
- Conductor Type：Stranded
- Application：Internal Wiring
- Conductor Material：Copper
- Sheath Material：PVC
- Insulation Material：PVC
Base Info
- Model NO.：flry-b
- Material Shape：Round Wire
- Range of Application：Flame Retardant
- Certification：ISO9001, CE, UL, CCC, RoHS, VDE
- Packaging：1000FT,Spool
- Weight：About 1kg,1000FT
- Color Available：Any Colors
- Delivery Time for Samples：3-5days
- Delivery Time for Mass Production：15-30days
- Appliance：Internal Wiring of Electronic&Electrical Equipment
- Warranty Time：at Least 10 Years for Proper Use
- Standard of Production：RoHS & Reach
- Factory Management Standard：ISO9001:2008
- Annual Capacity：300,000kms
- Transport Package：Reel, Spool, Pallet
- Specification：Customize
- Trademark：BORT
- Origin：China
- HS Code：8544491900
- Production Capacity：300000km,Year
Description
Maximum Resistance at 20ºCCross Sectional Area NO.of Cond Insulation Thick. Outside Thick. Weight mm2 No./mm mm mm kg/km Ω/mm 0.22 7/0.21 0.3 1.20 3.52 84.80 0.35 7/0.26 0.3 1.30 4.79 52.00 0.5 19/0.19 0.3 1.60 7.07 37.21 0.75 19/0.23 0.3 1.90 10.19 24.70 1 19/0.26 0.4 2.10 12.79 18.50 1.5 19/0.32 0.4 2.40 18.31 12.70
