1/2" Super Flexible Helical Feeder Cable Heliax Coax Cable
Hangzhou Risingsun Cable Co., Ltd.- Application：Local Communication Cable, Coaxial Cable, Long Distance Symmetric Cable, RF Cable, Leaky Feeder Cable
- Conductor Material：Copper
- Cover Material：PE
- Type：Feeder Cable
- Material Shape：Round Wire
- Conductor Type：Solid
Base Info
- Model NO.：1,2" Super flexible feeder cable
- Wire Core Material：Bare Copper Wire
- Certification：CE, ISO, RoHS, UL
- Model：1,2" Supler Flexible Feeder Cable
- Brand：RS or OEM
- Outer Conductor Material：Helical Copper Tube
- Transport Package：500m,750m,1000m Wooden Drum
- Specification：BC, CCS, CCA, TC, Al, Foam PE, PVC, PE, LSZH
- Trademark：RS
- Origin：China
- HS Code：8544200000
- Production Capacity：700000,Km Per Year
Description
Construction CharacteristicItem Material Diameter(mm) 1.Inner Conductor Copper Clad Aluminum or Copper 3.60 2.Dielectric Physical Foam Polyethylene 8.80 3.Outer Conductor Helical Copper Tube 12.10 4.Jacket PE or Low Smoke Halogen Free Fire Retardant PE 13.40 Electrical Characteristic Capacitance(pF/m) 80 Impedance(ohm) 50 Velocity of Propagation(%) 83 Peak Power(KW) 19 RF Peak Voltage(KV) 1.13 Insulation Resistance(MΩ.km) >5000 Cutoff Frequency(GHz) 12.5 Insulation Voltage(KVrms) 2.5 Inner Conductor DC Resistance(Ω/km) 2.85/1.78 Outer Conductor DC Resistance(Ω/km) 3.5 Jacket Spark(KVrms) 5.0 Shielding Effectiveness(dB) >120 Mechanical and Environmental Characteristic Min Single Bending Radius(mm) 50 Min Repeated Bending Radius(mm) 125 No of Bends 15 Tensile Strength(kg) 110 Storage Temp/ºC -55 to +85 Installation Temp/ºC -20 to +60 Operating Temp/ºC -55 to +85 Attenuation(VSWR1.0-1.1,Cable Temp.20ºC) and Average Power(VSWR 1.0,ambient temp.40ºC) Frequency(MHz) Attenuation(dB/100m) Average Power(KW) 100 3.22 3.03 200 4.65 2.11 450 7.20 1.37 800 9.86 1.00 900 10.56 0.94 1000 11.15 0.88 1500 13.80 0.70 1800 15.55 0.63 2000 16.40 0.59 2200 17.35 0.56 2400 18.10 0.53 2500 18.50 0.52 3000 20.90 0.48

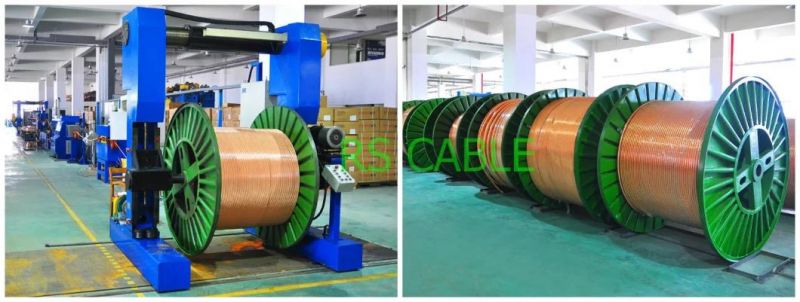

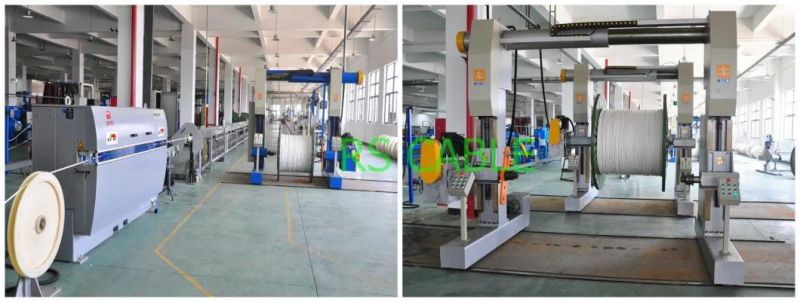

WorkShop:

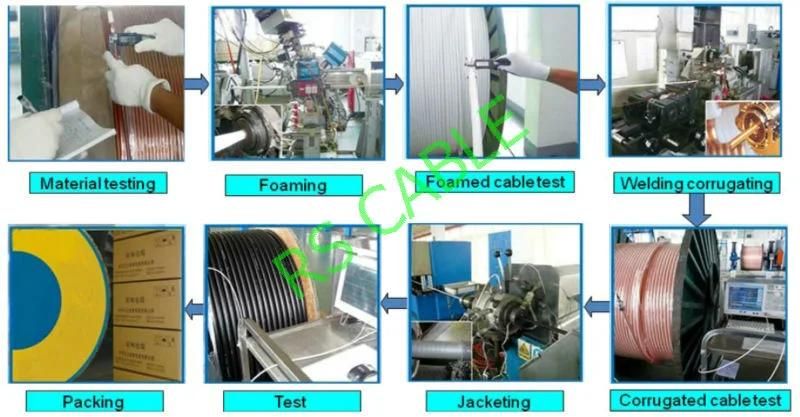

Manufacturing Process:
Our Service:
1) Quick Response --All inquiries will be replied within 24 hours.
2) Professional Quotation --All prices will be quote according to customers' detailed
specifications & requirements.
3) OEM & ODM Service
4) Can print your own brand on the jacket printing with foot or meter marking.
5) Make customized designs for stickers, drums, outer cartons, etc.
6) Stable Quality --All materials and products passed restrict QC procedures,comply with
international standards.
7) Fast Delivery --LCL orders,15days after confirmation; FCL orders, 20 days after
Confirmation in usual.
Good After-sales Service
--We chose the fastest vessel to POD for delivery our goods to clients,
--All Documents will be issued according to clients' instructions, to save troubles from local customs.
--Any complaint to quality or packing issued will be responded, and terminated with proper solutions for clients.
FAQ:
Q1: What kind of cable do you produce?
A: We specialized in producing Coaxial Cable,Network Cable,Patch Cord,CCTV Cable,Optical Fiber Cable, Speaker Cable,Alarm Cable,Telephone Cable,Drop Wire,Audio Cable,HDMI Cable,Control Cable etc
We also provide cable accessory products such as connector, cable clip,cable tie,crimping tool, antenna dishe,splitters,amplifer,optical receiver,optical transmitter etc
Q2: What's your MOQ? Can you offer free samples?
A: Our MOQ is 10KM per item. Free samples can be sent to you if available in stock,freight cost need to be paid by your side.
Q3: What's your delivery time?
A: Normally, our delivery time is 15 days after received deposit,it base on the quantity of the order.
Q4: What's your payment term?
A: We accept T/T, L/C,Western Union.Other payments accept through negotiation.
Q5:What's your trade term?
A: We accept FOB ShangHai or Ningbo,CFR,CIF,EXW term
Q6: Where is your factory located? How can I visit there?
A: Our factory is located inLin'An HangZhou City,ZheJiang Province,China.
1 hour drive from HangZhou XiaoShan International Airport
3 hours drive or 1 and half an hour by high speed rail to railway station from shanghai or Ningbo
