Bare Aluminum Conductor Overhead ASTM BS DIN IEC Standard ACSR Conductor
People's Cable Group Co., Ltd.- Application：Construction, Overhead, Construction,Power Station
- Voltage：Low and Medium Voltage Cable
- Current：DC & AC
- Insulation Material：Bare
- Sheath Material：Bare Conductor
- Material Shape：Round Wire
Base Info
- Certification：ISO, CCC, BV, SGS
- Model：ACSR Conductor
- Brand：Rmjt
- ACSR Conductor Voltage：Low Voltage,Medium Voltage,High Voltage
- ACSR Conductor Core Material：Steel or Zinc Coated Steel
- ACSR Conductor HS Code：7614100000
- ACSR Conductor Supplier′s Nature：Manufacturer
- ACSR Conductor Standard：ASTM B232,BS215 Part2, CSA C49,DIN 48204,IEC 61089
- Core No：7~91
- Conductivity：Excellent ACSR Conductor
- Shipment Terms：Fob CIF
- Exoprt Experience：Southeeast Asia,South America,Africa,Middle East
- Popular Size：Turkey,Dog,Raven,Rabbit,Goat, Dog, Rabbit
- Transport Package：Wooden Drum or as Request
- Specification：10-1500mm2
- Trademark：RMJT
- Origin：China
- HS Code：7614100000
- Production Capacity：50000km,Years
Description
Current
Carrying Capacity *AL GSW AL GSW mm² No. / mm No. / mm mm² mm² mm kg/km kN A 16 6 / 1.84 1 / 1.84 16 2.7 5.52 64 6.08 149 25 6 / 2.30 1 / 2.30 24.9 4.2 6.9 101 9.13 198 40 6 / 2.91 1 / 2.91 39.9 6.7 8.73 161 14.4 267 63 6 / 3.66 1 / 3.66 63.1 10.5 10.98 255 21.63 358 100 6 / 4.61 1 / 4.61 100.1 16.7 13.83 405 34.33 481 125 18 / 2.97 1 / 2.97 124.7 6.9 14.85 397 29.17 549 125 26 / 2.47 7 / 1.92 124.6 20.3 15.64 503 45.69 557 160 18 / 3.36 1 / 3.36 159.6 8.9 16.8 509 36.18 643 160 26 / 2.80 7 / 2.18 160.1 26.1 17.74 648 57.69 652 200 18 / 3.76 1 / 3.76 199.9 11.1 18.8 637 44.22 743 200 26 / 3.13 7 / 2.43 200.1 32.5 19.81 808 70.13 754 250 22 / 3.80 7 / 2.11 249.5 24.5 21.53 865 68.72 865 250 26 / 3.50 7 / 2.72 250.1 40.7 22.16 1,011 87.67 872 315 45 / 2.99 7 / 1.99 316 21.8 23.91 1,045 79.03 998 315 26 / 3.93 7 / 3.05 315.4 51.1 24.87 1,273 106.83 1,012 400 45 / 3.36 7 / 2.24 399 27.6 26.88 1,320 98.36 1,164 400 54 / 3.07 7 / 3.07 399.7 51.8 27.63 1,512 123.04 1,173 450 45 / 3.57 7 / 2.38 450.4 31.1 28.56 1,490 107.47 1,255 450 54 / 3.26 7 / 3.26 450.7 58.4 29.34 1,705 138.42 1,266 500 45 / 3.76 7 / 2.51 499.7 34.6 30.09 1,654 119.41 1,343 500 54 / 3.43 7 / 3.43 499 64.7 30.87 1,887 153.8 1,355 560 45 / 3.98 7 / 2.65 559.8 38.6 31.83 1,852 133.74 1,444 560 54 / 3.63 19 / 2.18 558.9 70.9 32.68 2,111 172.59 1,458 630 45 / 4.22 7 / 2.81 629.4 43.4 33.75 2,082 150.45 1,557 630 54 / 3.85 19 / 2.31 628.6 79.6 34.65 2,373 191.77 1,572 710 45 / 4.48 7 / 2.99 709.3 49.2 35.85 2,348 169.56 1,680 710 54 / 4.09 19 / 2.45 709.5 89.6 36.79 2,676 216.12 1,696 800 72 / 3.76 7 / 2.51 799.5 34.6 30.09 2,495 167.41 1,800 800 84 / 3.48 7 / 3.48 799 66.6 38.28 2,679 205.33 1,812 800 54 / 4.34 19 / 2.61 798.8 101.7 39.09 3,019 243.52 1,828 900 72 / 3.99 7 / 2.66 900.3 38.9 31.92 2,808 188.33 1,936 900 84 / 3.69 7 / 3.69 898.3 74.9 40.59 3,012 226.5 2,025 1000 72 / 4.21 7 / 2.80 1002.3 43.1 33.66 3,125 209.26 2,065 1120 72 / 4.45 19 / 1.78 1119.8 47.3 35.6 3,394 234.53 2,209 1120 84 / 4.12 19 / 2.47 1119.9 91 45.31 3,829 283.17 2,231 1250 84 / 4.35 19 / 2.61 1248.4 101.7 47.85 4,269 316.04 2,360 1250 72 / 4.70 19 / 1.88 1249.2 52.7 37.6 3,787 261.75 2,382
Application
About Us
People's Cable Group Co., Ltd. Was founded in 2007, with good transport facilities which adjacent to the 310 national highway-Lian Huo highway. Our company had 2 factories(Zhitian factory and Zhulin factory), occupies total area of more than 300,000 square meters, with building area 230,000 square meters. The real capital assets more than 10 million USD, with 630 staff members, 65 of which are professional and technical experts.

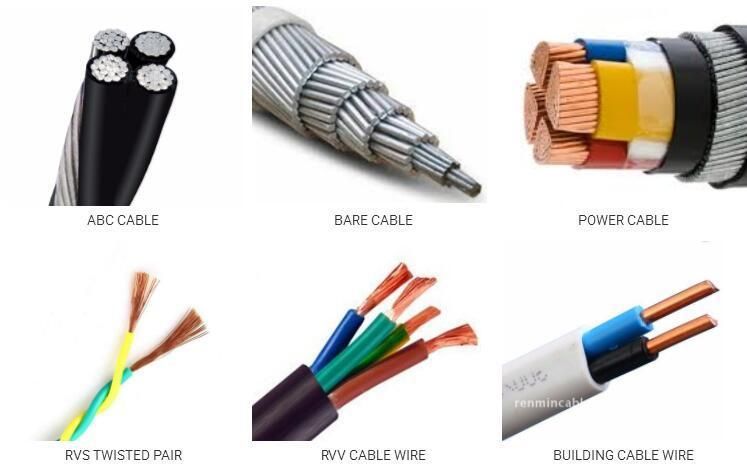

Our mainly products as follow:
1--pvc insulated electric wire whatever copper conductor,aluminum conductor, CCA(copper clad aluminum), CCS(copper clad steel).
2--pvc and xlpe insulated power cable with or without armor upto 35kv.
3--rubber cable like welding cable, mine cable, EPR cable and so on.
4--aerial bundled cable(ABC cable) up to 10kv.
5--bare conductor like AAC, AAAC, ACSR, ACAR, ACSR/AW, aluminum clad steel wire, galvanized steel wire, PC steel wire and so on.

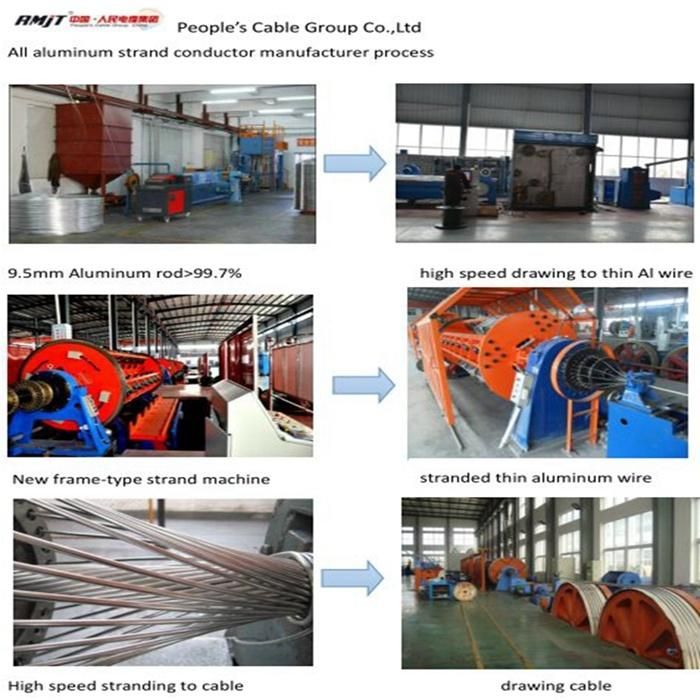

Production Progress
Packing & Delivery
Packing Details : Packing in wooden drum, iron-wooden drum or as customer's requirement.
Delivery Details : 15-25 days after place an order.
Customers Visit
We have a professional sales team with each of them has engaged in this job for 3-10 years, so that we can provide the comprehensive and professional technology for you.
With the perfect quality and after sales service, till now we have exported to more than 80 countries, welcome to visit us and establish win-win business relationship!
Certification
As top rank of the cable supplier in China, we have obtained CCC, ISO9001, ISO14001, OHSAS certificates, passed the SGS and BV test, and our brand "RMJT" be given China famous brand.
FAQ:
Q:I didn't find the cable which I need in this page?
A:If you didn't find the species of cables you need, please contact us directly, we will reply you quickly.
Q:What's your minimum order quantity?
A:It is not so sure, you can confirm it with us. Normally, it will be 1000 meters.
Q:What's your delivery time?
A:It depends on whether we just has the stock for your type.Normally,it takes about 7-15days to achieve production.
Q:How can I get a sample from your company? Is the sample free?
A:If you need the sample to check the quality, please contact us, we will send you the free sample, but the freight charge should be paid.
Q:What if the cable which we need have some differences on specifications from yours?
A: Any difference, we can design and produce according to your requests, which include cable, color, material, processing requirement etc.
Our Service:
1.26 years production experience and 13 years export experience .
2.Products certification :ISO,SGS,UL,CE,BV,TUV
3.OEM service available based on official & legal authorization.
4.Strict quality control system.
5.Rapid delivery and feedback,Faster lead time than our competitors.
6.Excellent quality with reasonable price.
7.Strong technical support (technical data, drawing, etc.)
8.Professional teamwork service for you actively.
9.Stock available, Free sample is available.
Contact US
Factory Add: No. 13th, Yongding Road, Gongyi, Zhengzhou city, Henan province, China.
Attn: Aaron Tang
Mobile:+86 13157107563
Fax:+86-371-55632837
Websites: renmincable.en.made-in-china.com
