• Model NO.：SE SER SEU Service entrance cable
• Wire Core Material：Bare Copper Wire
• Certification：ISO, CE, UL
• Model：Ser Seu Se
• Brand：Renda
• Certificate：UL cUL RoHS
• Price：Whole Price
• Product Name：Se Cable, Seu Cable, Ser Cable
• Inner Core：Xhhw Xhhw-2
• Rated Voltage：600V
• Conductor：Aluminum Alloy
• Usage：Underground Service Entrance,Ud
• Market：North America Canada USA
• Standard：UL 854, UL44
• Environment：RoHS
• Transport Package：Standard Package
• Specification：8AWG-250MCM
• Trademark：HT Cable
• Origin：China
• HS Code：8544490000
• Production Capacity：100000m,Month

Basic Info.

Model NO. SE SER SEU Service entrance cable Wire Core Material Bare Copper Wire Certification ISO, CE, UL Model Ser Seu Se Brand Renda Certificate UL cUL RoHS Price Whole Price Product Name Se Cable/ Seu Cable/ Ser Cable Inner Core Xhhw Xhhw-2 Rated Voltage 600V Conductor Aluminum Alloy Usage Underground Service Entrance/Ud Market North America Canada USA Standard UL 854, UL44 Environment RoHS Transport Package Standard Package Specification 8AWG-250MCM Trademark HT Cable Origin China HS Code 8544490000 Production Capacity 100000m/Month

Product Description

 UL,TUV,KEMA,CE,BV,PSB,SABA certifications

With TUV TYPE TESTING REPORT

With ISO9001,ISO18001,OHSAS18001 syetem certifications

UL listed Service Entrance Cable 600V AA8000 series Aluminum Alloy Type SE  Flat/round SER Cable SEU Cable  UL NO. E466669

1 Applications:

HUATONG Aluminum Service Entrance Cable Type SE, with rated voltage 600V, is used to transmit power from the junction box to the meter base and from the meter base to the distribution cabinet

It may be used in all applications where Type SE cable is permitted.Type SE cable could be used in dry or wet environmet at the working temperature not exceed 90C.



2 Standard:

ASTM-B-800 and B-801

UL Standard 44 for XHHW-2

UL Standard 854 for SER/SRU

RoHS environmental conductive requirement



3 Product Charactors:

Conductor:AA-8030 aluminum alloy conductors

Insuation:Cross-linked polyethylene(XLPE) Insulation

Jacket: Sunlight resistant,moisture resistant and flame retardant

Temperature Range: Temperature of 90C in wet and dry locations

Environmental: Free of harmful heavy metals in compliance with ROHS

Voltage Rating:600Volt

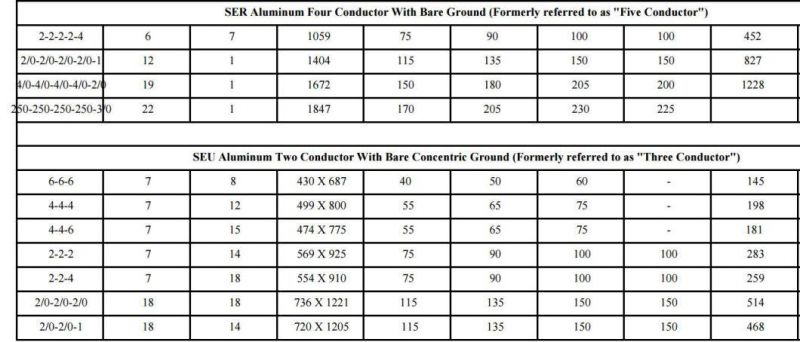

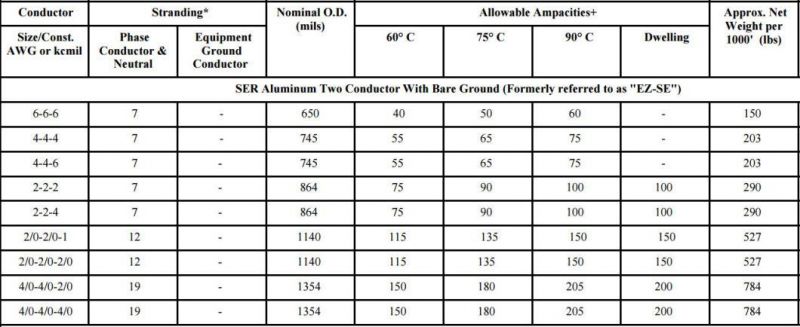

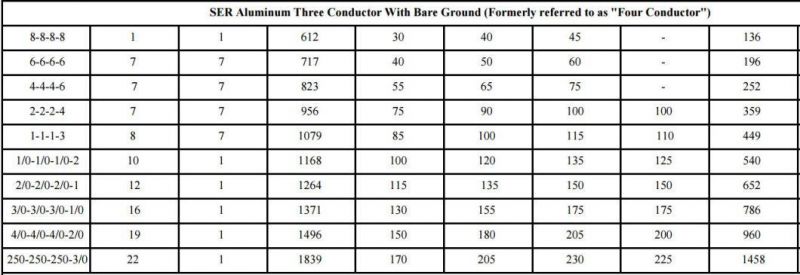

4 Specification:

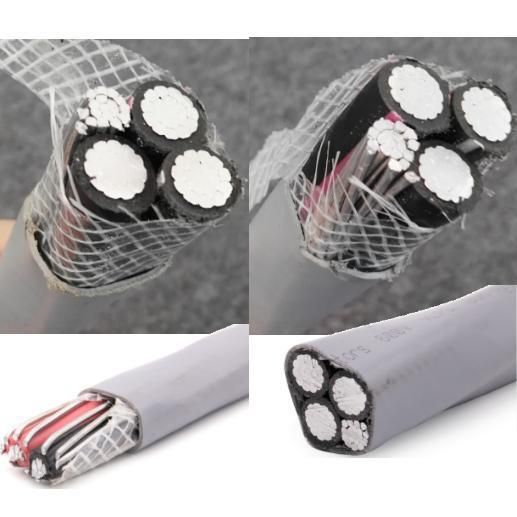

The AA-8000 aluminum alloy conductor is applied in Type SER/SEU cable. Its insulated core is complied to the requirment of Type XHHW-2 in UL44. Insulation material is cross-linked polyethylene(XLPE) with characteristics of abrasion resistance,moisture proof and heat resisting.Meanwhile the insulation has the flame retardant property,which can meet FT2 level combustion test requirment. The outside of cable core should be wrapped a fibrage tape,both of the insulation wire core and outer sheathed can meet the 720h sunlight resistance requirment.



SER Cable's phase conductors are identified by a colored stripe on the insulation.

3 conductor- Black and Black with Red Stripe
4 conductor- Black, Black with White Stripe, and Black with Red Stripe
5 conductor- Black, Black with White Stripe, Black with Red Stripe and Black with Blue Stripe

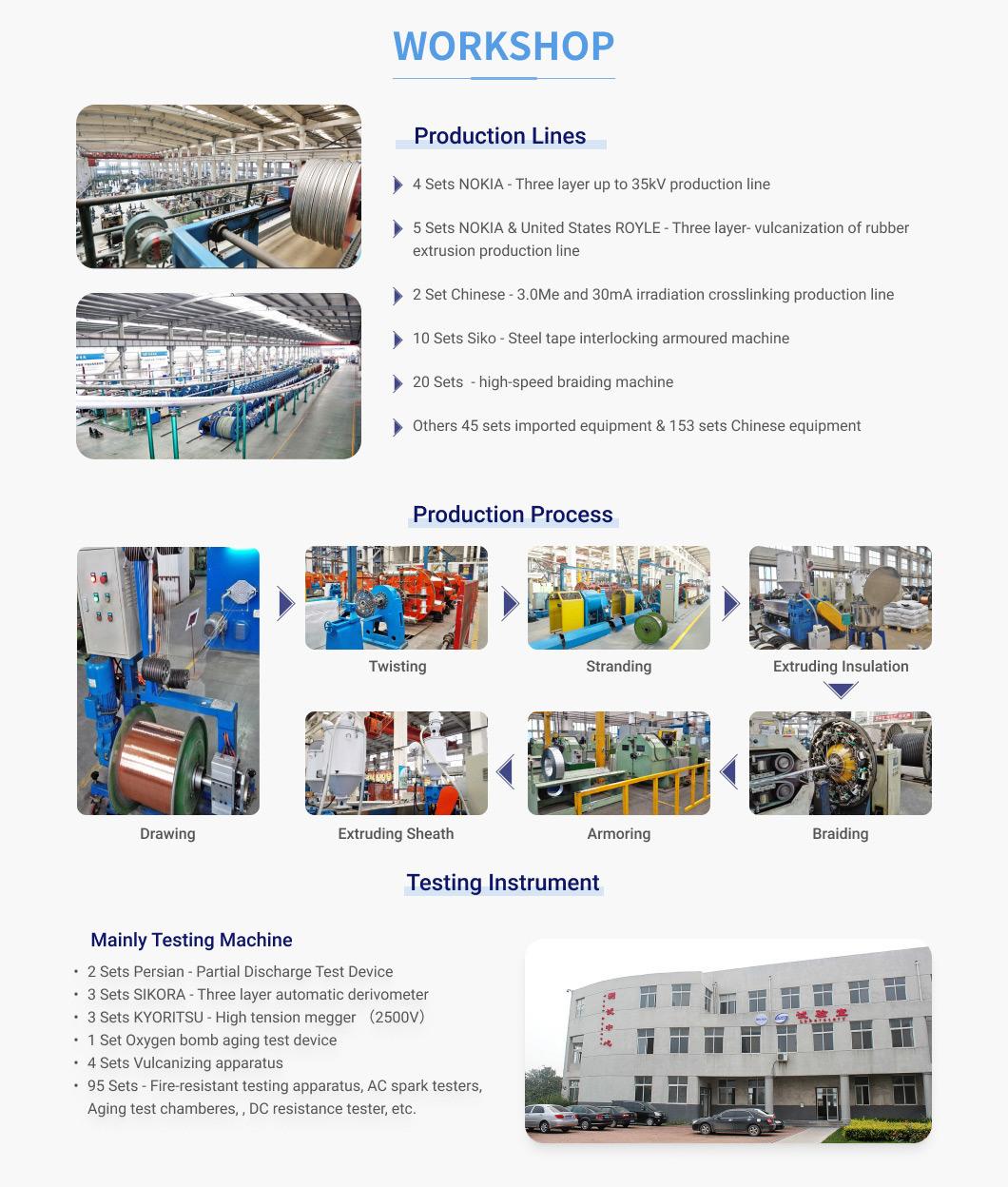

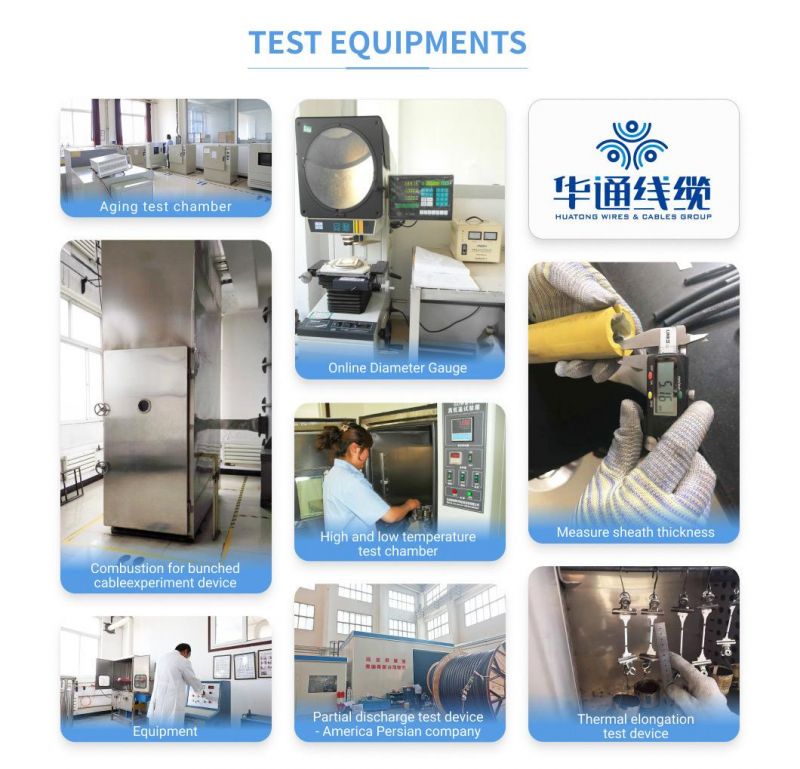

Hebei Huatong wires&cables Group Co.,ltd.It was established in 1993. covers an area more than 220,000 square meters, owning more than 420 sets manufacturing equipment and more than 250 sets of testing equipment or apparatus. Our annual production capacity is 3 billionYuan.Now there are more than 800 employers in our company, among which more than 150 are technicians. Our products are widely used in the field of electric power, coal, metallurgy, petrochemical industry, railway, national defense, construction, aviation and other national key projects.

We are top cable manufacture of rubber serious cables . Besides these,our submersible oil pump cable and shipboard cable are very influential in domestic, and, the traditional cables are also produced such as PVC power cables, XLPE power cables, ABC cables, wires, control cables, screened cables,communication cables, conductors.We are OEM for many USA, Europen, Australia cable company,70% of our products are exported, most customers are from developed countries. We got ISO,UL,TUV,KEMA,CE and many other certifications.
