Medium Voltage XLPE Insulated PVC Power Cable
People's Cable Group Co., Ltd.- Application：Construction, Underground, Industrial, Power Station, Telecommunication
- Voltage：1kv-35kv
- Current：DC & AC
- Insulation Material：XLPE
- Sheath Material：PVC,PE
- Material Shape：Round Wire
Base Info
- Model NO.：Power Cable
- Wire Core Material：Copper, Al
- Certification：ISO, CCC, CE
- Model：Yjv, Yjv22, Yjv32, RO2V
- Brand：Rmjt
- Material：Aluminum, Copper, XLPE, PVC, PE
- Standard：ASTM, NFC, IEC
- Transport Package：Export Drum, Coil, Carton
- Specification：10mm2-1000mm2
- Trademark：RMJT
- Origin：China
- HS Code：8544492100
- Production Capacity：1000km Per Month
Description
renmincable.en.made-in-china.com WeightAl Conductor Cu Conductor Al Conductor Cu Conductor mm2 - mm mm mm kg/km kg/km mm mm mm mm kg/km kg/km 1.5 1 0.8 1.4 5.8 - 51 - - - - - - 2.5 1 0.8 1.4 6.2 - 64 - - - - - - 4 1 1 1.4 7.1 - 88 - - - - - - 6 7 1 1.4 7.8 78 114 - - - - - - 10 7 1 1.4 8.6 96 159 1 0.5 1.8 13.4 234 295 16 7 1 1.4 9.6 123 222 1 0.5 1.8 14.4 274 370 25 7 1.2 1.4 11.2 172 328 1 0.5 1.8 16 344 496 35 7 1.2 1.4 12.2 209 428 1 0.5 1.8 17 393 606 50 19 1.4 1.4 13.9 271 565 1 0.5 1.8 18.7 478 764 70 19 1.4 1.5 15.9 356 818 1 0.5 1.8 20.5 582 1020 95 19 1.6 1.5 18 471 1041 1 0.5 1.8 22.6 717 1291 120 37 1.6 1.6 19.6 563 1307 1 0.5 1.8 24 822 1545 150 37 1.8 1.6 21.3 684 1592 1 0.5 1.8 25.4 952 1857 185 37 2 1.7 23.9 840 1985 1 0.5 1.8 27.9 1136 2236 240 61 2.2 1.8 27 1071 2533 1 0.5 1.9 31 1404 2877 300 61 2.4 1.9 29.6 1317 3162 1.2 0.5 2.1 34.3 1722 3551 400 61 2.6 2 33.2 1666 4120 1.2 0.5 2.2 37.6 2114 4488 500 61 2.8 2.2 37.5 2089 5163 1.2 0.5 2.3 42.1 2592 5683 630 61 2.8 2.3 41.2 2581 6447 1.4 0.5 2.4 46.3 3184 7060

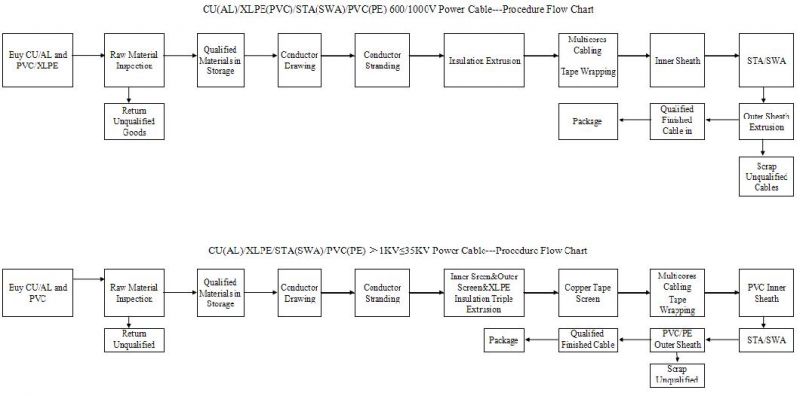

Production Process:
XLPE/PVC/PE Insulated Power CABLE producing process is drawing ,extruding ,stranding and cabling,and our factory possess 2 subsidiaries,Zhitian factory is professional insulated cable workshop .

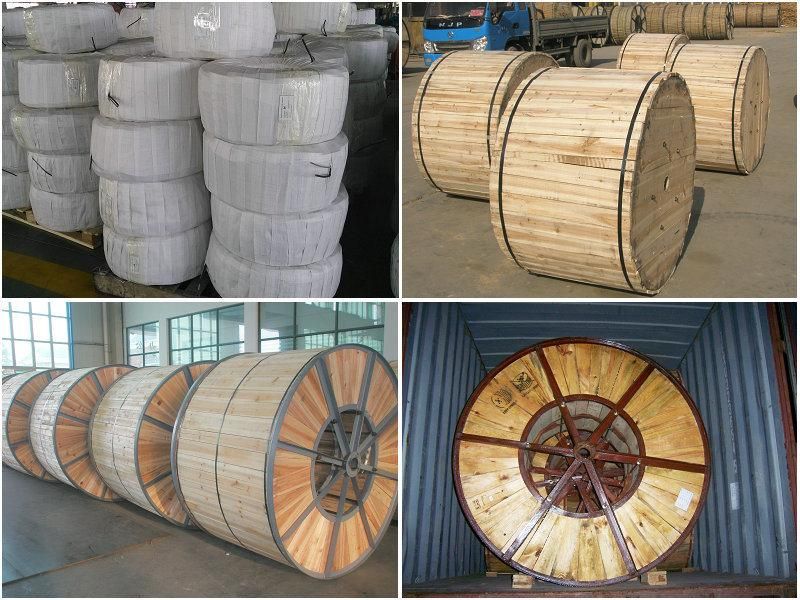

Package:
Package in plastic reel, paper reel ,wooden drum,steel wooden drum or as customer's requirement.

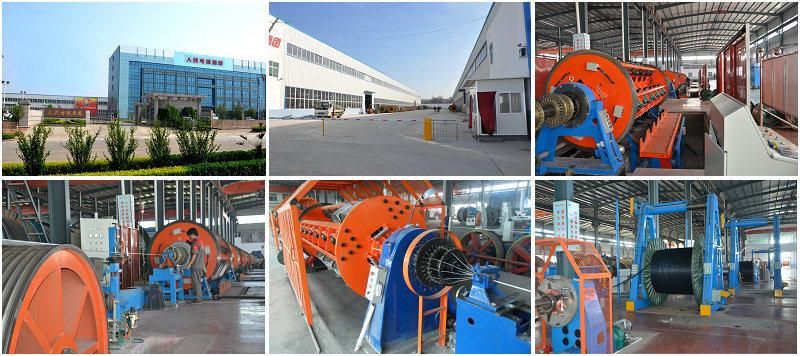

About us:
People's Cable Group Co., Ltd. was founded in 2007, located in Zhengzhou Gongyi economic development zone. Our company has 2 factories (Zhitian factory and Zhulin factory), occupies total area of more than 300,000 square meters, with building area 230,000 square meters.
Certificate:
As first rank of the cable supplier in China, we have obtained CCC, ISO9001, ISO14001, OHSAS certificates, passed the SGS and BV test, and our brand "RMJT" be given China famous brand.
Customer Visit :
We have a professional sales team with each of them has engaged in this job for 3-10 years, so that we can provide the comprehensive and professional technology for you. With the perfect quality and after sales service, till now we have exported to more than 80 countries, welcome to visit us and establish win-win establish relationship!
