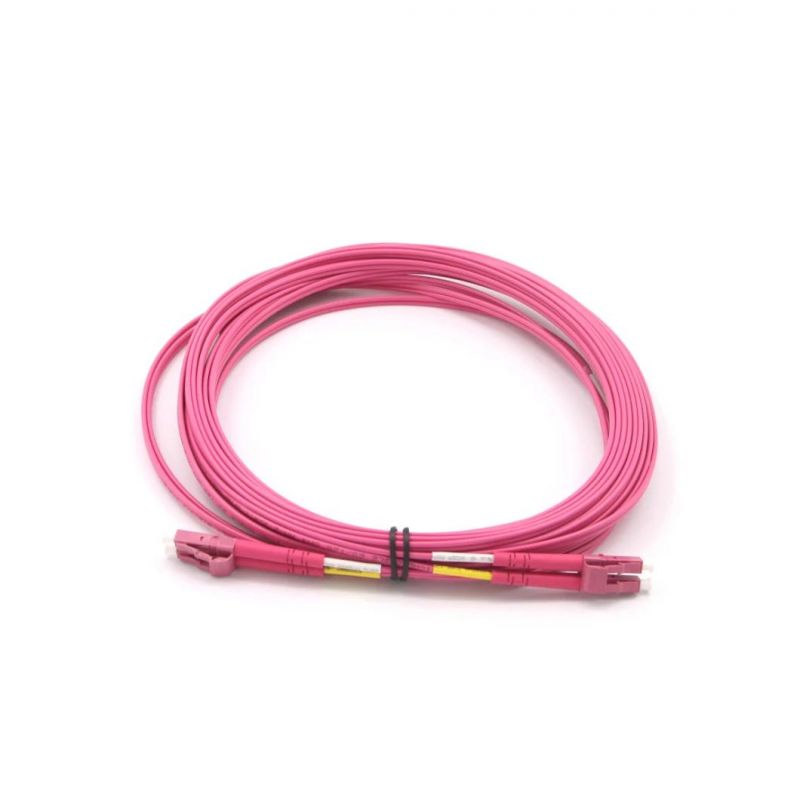

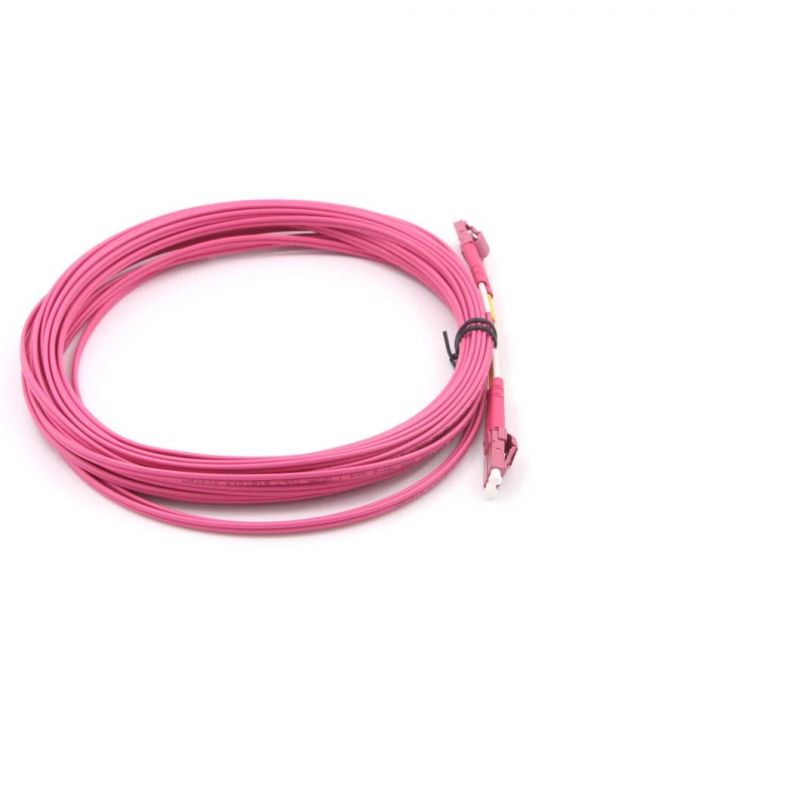

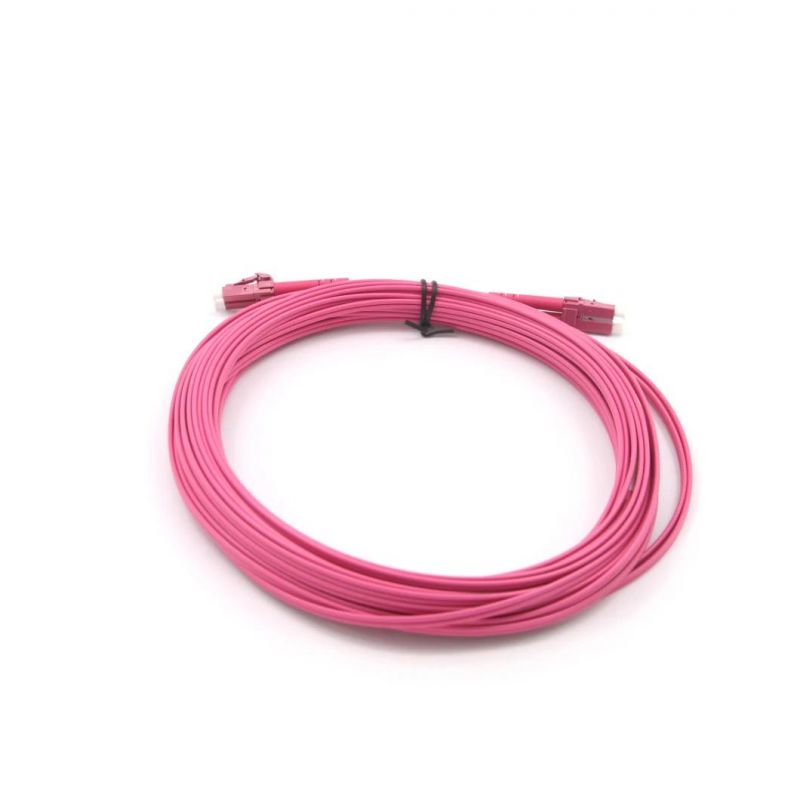

Fiber Optic Duplex Patch Cord with Different Cable Types

Shenzhen KOC Communication Co., Ltd.
  • Application：Communication
  • Type：Single-mode Fiber
  • Material Shape：Round Wire
  • Allowed Lateral Pressure：100(N,100mm)<1000(N,100mm)
  • Allowed Tensile Strength：100N<1000N
  • Certification：RoHS, CE, ISO9001

Base Info

  • Brand：OEM
  • Cable Diameter Szie：0.9mm,1.6mm,1.8mm,2.0mm,2.4mm,2.8mm,3.0mm
  • Cable Jacket Color：Blue,Orange,Yellow,Aqua, Magenta,Black, Gray,Pink
  • Cable Jacket Material：LSZH,PVC, Ofnr, Ofnp, PE, Rised
  • Connector Housing Color：Blue,Orange,Yellow,Aqua, Magenta,Black, Gray,Pink
  • Cable Length：1m, 2m, or Customization
  • Label：Sticker, Paper
  • Transport Package：Zipper Bag, Carton Box
  • Specification：SGS; RoHs
  • Trademark：koc
  • Origin：Made in Shenzhen
  • HS Code：85447000
  • Production Capacity：500000 PCS,Month

Description

 Single modeMultimodeInsertion LossTypical≤0.2dB, Maximum≤0.3dB≤0.25dBReturn Loss≥50 dB (PC)
≥60 dB (APC)≥30 dBRepeatability≤0.1Durability≤0.2 dB typical change, 1000 matingsInterchangeability≤0.2dBTensile strength>70NOperating Temperature-40 to + 85°C


ORDERING OPTIONSConnector ColorBoot (cable) SizeBoot ColorFiber TypeCable numberApplicationLengthBeige0.9mmBeige9/125μm (SM)SimplexPCCustomizedBlue2.0mmBlack50/125μm(MM)DuplexAPC Green3.0mmBlue62.5/125μm(MM)Fan-out (4f)    Green Fan-out (6f)    Gray Fan-out (8f)    Red Fan-out (12f)    White Fan-out (24f)  Fiber Optic Duplex Patch Cord with Different Cable TypesFiber Optic Duplex Patch Cord with Different Cable TypesFiber Optic Duplex Patch Cord with Different Cable Types Fiber Optic Duplex Patch Cord with Different Cable TypesFiber Optic Duplex Patch Cord with Different Cable TypesFiber Optic Duplex Patch Cord with Different Cable Types

   Note: The price range is for Fiber Optic Jumper LC-LC duplex OM4 LSZH  3 meters
