• Material Shape：Circuler Compact
• Range of Application：Overhead
• Certification：ISO9001, CCC, BV
• Brand：Rmjt
• Voltage：Middle Voltage
• Structure：7,19,37,61
• Name：Covered Line Wire
• Usage：Electrical Transimision
• OEM or ODM：Yes
• Transport Package：Wooden Drum
• Specification：150mm2, 185mm2, 240mm2, 300mm2
• Trademark：RMJT
• Origin：China
• HS Code：8544601200
• Production Capacity：10000000meters,Year

Basic Info.

Material Shape Circuler Compact Range of Application Overhead Certification ISO9001, CCC, BV Brand Rmjt Voltage Middle Voltage Structure 7/19/37/61 Name Covered Line Wire Usage Electrical Transimision OEM or ODM Yes Transport Package Wooden Drum Specification 150mm2, 185mm2, 240mm2, 300mm2 Trademark RMJT Origin China HS Code 8544601200 Production Capacity 10000000meters/Year

Product Description

10kV Voltage Covered Aluminium Cables for Overhead Aluminum Cable

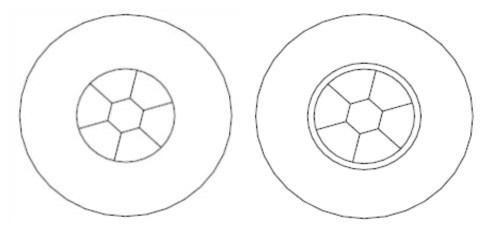

The XLPE covered aluminum cable- 10kV Voltage Class is constituted by a compact round conductor, composed by aluminum strands, blocked or not, and with a cross-linked polyethylene (XLPE) covered in black or gray color, with special characteristics to be resistant against electric tracking and UV-rays.

As XLPE is a thermoses material, it enables operation up to 90°C continuously implying in higher capacity when compared to the thermoplastic materials.

The main application for covered aluminum cables is on compact overhead, primary power distribution, medium-voltage networks located in urban and wooded areas. These cables are an excellent technical and economic option for companies all over the world, since they feature such advantages as low manufacturing cost and ease of installation.



Specification


Cross section	No. of  wires	Conductor diam.	Overall Diameter	Minimum breaking load	Approx. weight	Max. DC-resistance   at 20°C	Ampacity 90°C
[mm²]		[mm]	[mm]	[kgf]	[kg/km]	[Ohm/km]	[A]
35	7	7.1	13.6	464	190	0.868	187
50	7	8.2	14.7	663	235	0.641	225
70	19	9.7	16.2	928	315	0.443	282
95	19	11.5	18	1259	400	0.320	345
120	19	12.9	19.4	1591	500	0.253	401
150	19	14.2	20.7	1988	580	0.206	456
185	37	16.2	22.6	2452	695	0.164	525
240	37	18.4	24.9	3182	875	0.125	625
300	37	20.7	27.1	3977	1070	0.100	721

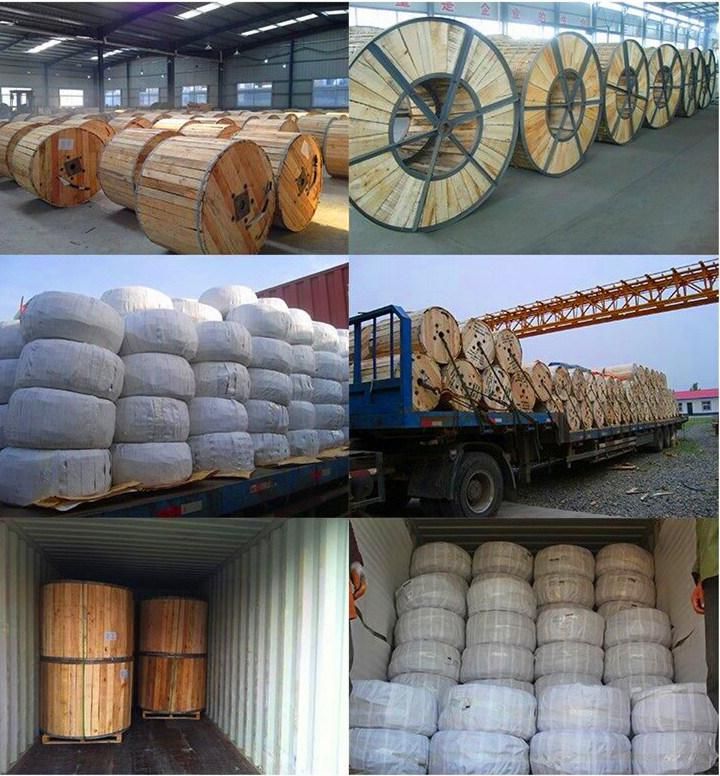

Packing
Packing in wooden drums,steel wooden drums or as customer's requirement.


Customer Visit
We have a professional sales team with each of them has engaged in this job for 3-10 years, so that we can provide the comprehensive and professional technology for you. With the perfect quality and after sales service, till now we have exported to more than 80 countries, welcome to visit us and establish win-win establish relationship!

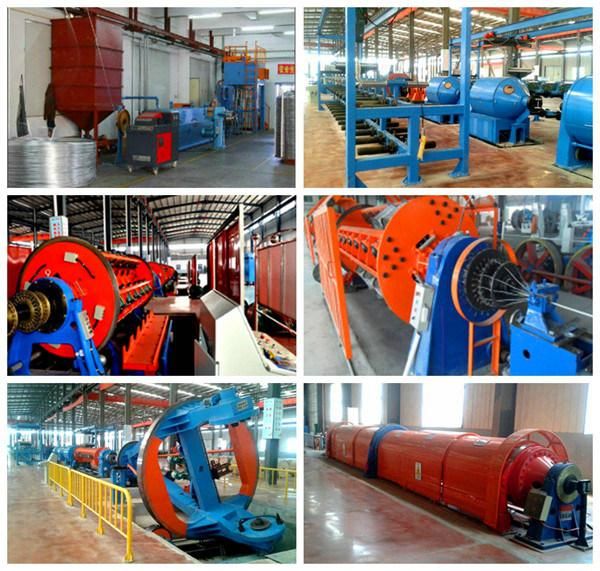

Production process:


Certificate
As first rank of the cable supplier in China, we have obtained CCC, ISO9001, ISO14001, OHSAS certificates, passed the SGS and BV test, and our brand "RMJT" be given China famous brand.

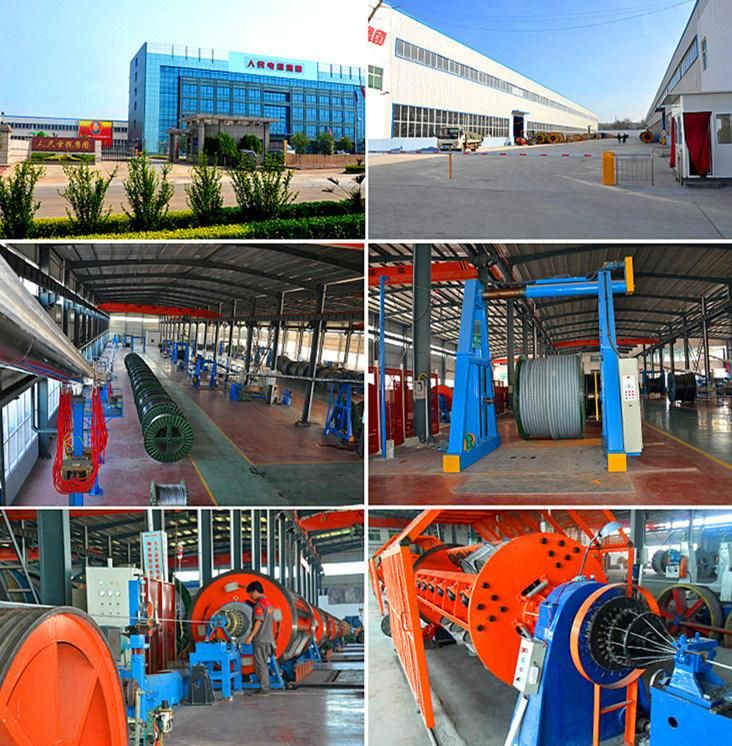

About us:
People's Cable Group Co., Ltd. was founded in 2007, located in Zhengzhou Gongyi economic development zone. Our company has 2 factories (Zhitian factory and Zhulin factory), occupies total area of more than 300,000 square meters, with building area 230,000 square meters.
