• Certification：CE, RoHS
• Product Length：15cm,25cm,30cm,50cm,Customzied
• Product Color：Grey
• Cable Spec.：#28AWG
• Connector Type：Female to Female IDC Connectors
• Exterial Materials：PVC

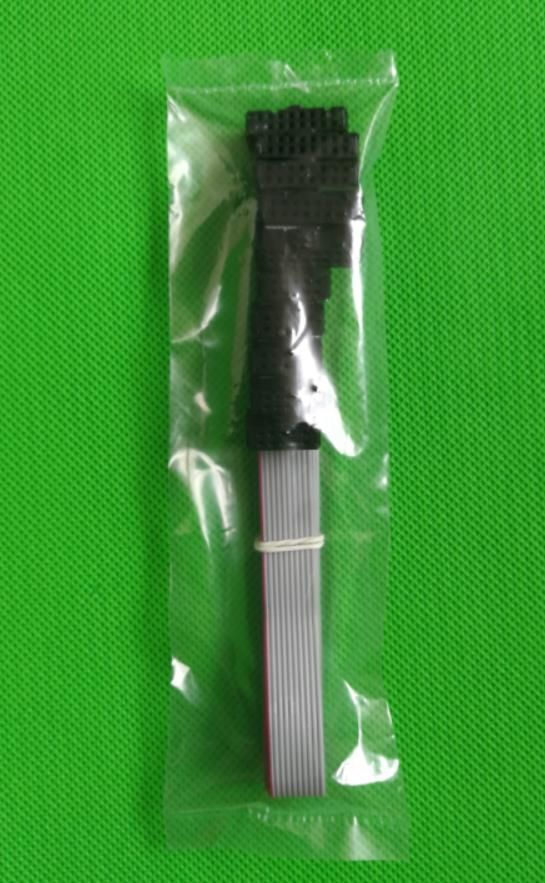

• Transport Package：5PCS on One Bag
• Specification：10pin to 16pin IDC ribbon cable
• Trademark：Nanming
• Origin：Guangdong, China
• HS Code：8518309000
• Production Capacity：50000,Week

Basic Info.

Certification CE, RoHS Product Length 15cm/25cm/30cm/50cm/Customzied Product Color Grey Cable Spec. #28AWG Connector Type Female to Female IDC Connectors Exterial Materials PVC Transport Package 5PCS on One Bag Specification 10pin to 16pin IDC ribbon cable Trademark Nanming Origin Guangdong, China HS Code 8518309000 Production Capacity 50000/Week

Product Description

Standard OEM Modular Synthesizer IDC Flat Wire Power cable Eurorack Wholesale Good Quality

Good cable for powering your modules

If you're installing a module in your power supply and find yourself in need of a power cable, so you're all set - and ready to make music.

IDC Ribbon cables with IDC connectors

Features: double rows, 10Pin female to 16Pin female header with both end, compatible with 2.54mm spacing pin headers. Idc flat Ribbon cable, used for most Atmel AVR jtag debuggers, in-system programmers, isp download, etc.

Allows to extend standard IDC 16Pin Cable and can also be used for additional applications, such as hard

Jacket color: gray with conventional printing with red edge, and another color, black and yellow, to be ordered!
Packing: 250ft: 76.5M / volume 500ft: 153M / roll pans customized export
Conductor diameter: 0.12 ± 0.005mm
Conductor Elongation: 18% ↑
Conductor cross-sectional area: 0.36mm2
Conductor twisted away from 10.7mm ↓
The average thickness of the insulator minimum 0.10mm 0.23mm
Wire thickness 0.9 ± 0.05mm
Insulator elongation 100.00%
Insulator tensile strength 1.066Kg / mm2
Spark test 3.0KV / 0.15SPC ↑
Withstand Voltage: 2KV 10mA /
Conductor resistance ≤237 ohms / RM ↓
Insulation resistance ≥100m ohm / RM ↑
Capacitance 40PF / M
Impedance of 100 ohms
Time delay 4
Operating temperature: -40 °C ~ + 105 °C
Insulation Jacket: Environmental PVC 45P (RoHS) 8058 Grey

Item	IDC Connector Flat Ribbon Cable Female to Female 2.54 mm Pitch Eurorack power cable
Place of Origin	Guangdong China (Mainland)
Color	Grey
Length	15cm, 20cm, 25cm, 30cm, 35cm, 50cm cable length can be customized
Packing	PE bag
MOQ	1000pcs (cable lengths can be mixed)
Sample	Free samples ,  2-3 days after confirmed
Production Time	Within 8-10 working days, it depends on the quantity
Payment terms	Alibaba Trade Assurance, T/T, Western Union, Paypal
Shipping	Express door to door service: DHL, UPS, TNT, FedEx, about 5-7 days to delivery



Eurorack Flat Ribbon Power Cables - 5 Pack



Convenient set of 5 cables.

High quality cables for powering your Eurorack Modular Synth.

Specifications
Cable type: Flat Ribbon
Connectors: IDC - Female to Female
Pin pitch: 2.54 mm - 0.1″ / 0.1 inch
Voltage: 300 V
Length: 25 cm - 10 inch - 0.82 feet
Color:
Cables: Gray
Connectors: Black
Wire size: 28 AWG
Material: PVC plastic
Temperature: 105°C

Types:
10 to 10 pin
10 to 16 pin
16 to 16 pin
