Shanghai Qifan Cable 75ohm Rg59/RG6/Rg11 Coaxial Cable
Shanghai QIFAN Cable Co., Ltd.- Application:Local Communication Cable, Coaxial Cable, LAN Cable, Long Distance Symmetric Cable
- Conductor Material:BC,CCS,CCA,TC,CU,CCAG
- Cover Material:PVC
- Type:Cat 6
- Material Shape:Round Wire
- Conductor Type:Solid
Base Info
- Model NO.:special cable
- Wire Core Material:Bare Copper Wire
- Certification:ISO
- Model:Qifan
- Brand:Qifan
- Color:Black
- Quality Control:100%
- Transport Package:Rolls
- Specification:copper cable
- Trademark:Qifan
- Origin:China
- HS Code:8544492100
- Production Capacity:5000000000km
Description
Construction(Standard Shield)Diameter(mm) Item Material RG59 RG6 RG11 Center Conductor Copper Clad Steel/BC 0.81 1.02 1.63 Dielectric Foam PE 3.66 4.57 7.11 1st Shield Bonded Aluminum Foil 3.84 4.75 7.29 2nd Shield Aluminum Wire Braiding/CCA40%-90% / / / Jacket PVC 6.10 6.91 10.16 Electrical Charateristics Impedance(Ω) 75±3 Capacitance(pF/m) 52±2 Velocity of Propagation(%) 85.0 Shielding Effectiveness 5-1000MHZ(dB) ≥80% Return Loss 5-1000MHZ(dB) ≥22 1000-2000MHZ(dB) ≥20 Attenuation @68°F.(20 ºC ) @Frequency(Mhz) Max Attenuation(dB/100m) RG59 RG6 RG11 5 2.82 1.90 1.25 55 6.73 5.25 3.15 187 11.81 9.35 5.74 211 12.47 10.00 6.23 400 16.73 13.61 8.53 500 18.70 15.29 9.51 750 22.87 18.54 11.97 865 24.67 20.01 13.05 1000 26.64 21.49 14.27 1500 32.50 26.80 16.80 1800 35.60 28.90 18.60 2200 41.20 32.20 20.70 3000 45.20 37.60 24.90 RS Coaxial Cable Specification is accordingly to Commscope/Belden/TFC Standard,Such as Standard Shield/tri-shield, Quad Shield Cable. With messenger/without messenger

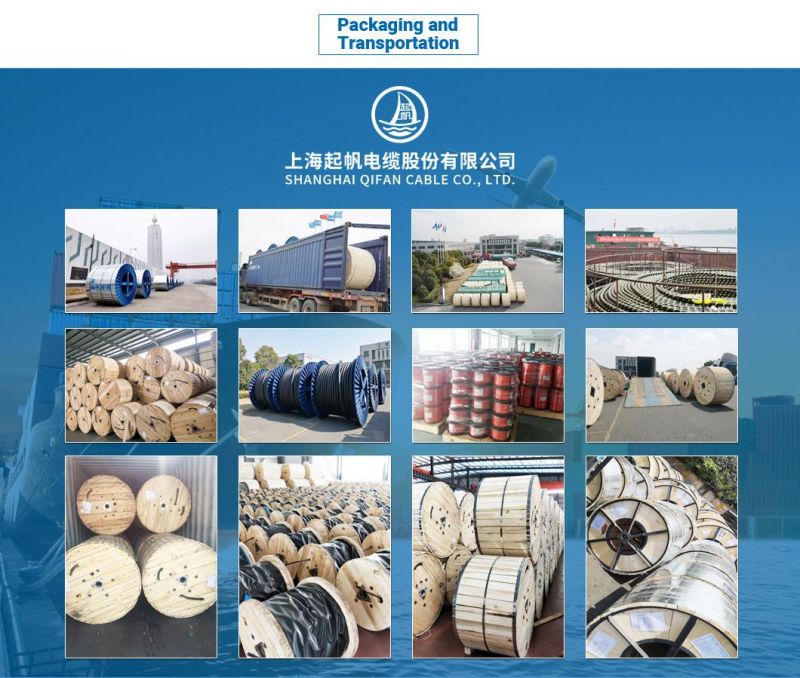

Packing & Shipping
(1) Packing Lengths:3m/5m/10m/20m/50m/100m/200m/305m/500m/1000m etc
(2) Inner Packing:Polybag,Blister,Shrink Wrap,Wooden reel,Plastic reel,or Cardboard drum
(3) Outer Packing:Carton box,Pull out box,Pallet available
(4) Other packing available according to clients' request
(5) Usually we deliver our products by SEA.
Other delivery methods are available upon request from clients.
Packing & Shipping
(1) Packing Lengths:3m/5m/10m/20m/50m/100m/200m/305m/500m/1000m etc
(2) Inner Packing:Polybag,Blister,Shrink Wrap,Wooden reel,Plastic reel,or Cardboard drum
(3) Outer Packing:Carton box,Pull out box,Pallet available
(4) Other packing available according to clients' request
(5) Usually we deliver our products by SEA.
Other delivery methods are available upon request from clients.
