Direct Buried Fiber Optical Cable GYTY53 Steel Tape Armoured Optic Cable
Hanyang (Hangzhou) Cable Co., Ltd.- Application：Communication, Outdoor Cabling (Ducts, Conduits or Aerial Pipe)
- Type：Single-mode Fiber
- Connection Structure：No
- Material Shape：Round Wire
- Allowed Lateral Pressure：1000,3000 N,100mm
- Allowed Tensile Strength：1000,3000 N
Base Info
- Model NO.：GYTY53
- Core：Multicore
- Certification：RoHS, UL, CE, ISO9001, CCC
- Brand：Superlink ,OEM
- Sheath Material：PE
- Fiber Count：2-288 Core
- Strength Member：Steel Wire
- Loose Tube：PBT
- Amored：PSP
- Transport Package：Wooden Drum , Pallet
- Specification：Outdoor optical cable GYTY53
- Trademark：SUPERLINK , OEM
- Origin：Zhejiang, China
- HS Code：85447000
- Production Capacity：80000km,Month
Description
12.5D/25DGYTY53-8~12B1.3 8~12 2 3 12.6 164 GYTY53-14~18B1.3 14~18 3 2 12.6 164 GYTY53-20~24B1.3 20~24 4 1 12.6 164 GYTY53-26~30B1.3 26~30 5 0 12.6 164 GYTY53-32~36B1.3 32~36 6 0 12.6 164 GYTY53-38~48B1.3 38~48 4 1 12.9 168 GYTY53-50~60B1.3 50~60 5 0 12.9 168 GYTY53-62~72B1.3 62~72 6 0 13.1 194 GYTY53-74~96B1.3 74~96 7~8 1~0 14.2 201 GYTY53-98~120B1.3 98~120 9~10 1~0 15.5 233 GYTY53-122~144B1.3 122~144 11~12 1~0 16.6 278 GYTY53-146~216B1.3 146~216 13~18 5~0 17.2 302 GYTY53-218~288B1.3 218~288 19~24 5~0 18.9 332 Note: G.652D fiber in the table, the fiber type can also be specified according to customer requirements.
1. What's your company MOQ?
- Our MOQ is 30km. But MOQ of stocks are 1 pcs.
2. Can you do our design?
- Of course, your customized design (OEM) is available.
3. What's the lead-time for order delivery?
- Within 10~30days.
4. Can you send a sample for us?
- Yes, we can provide free samples.

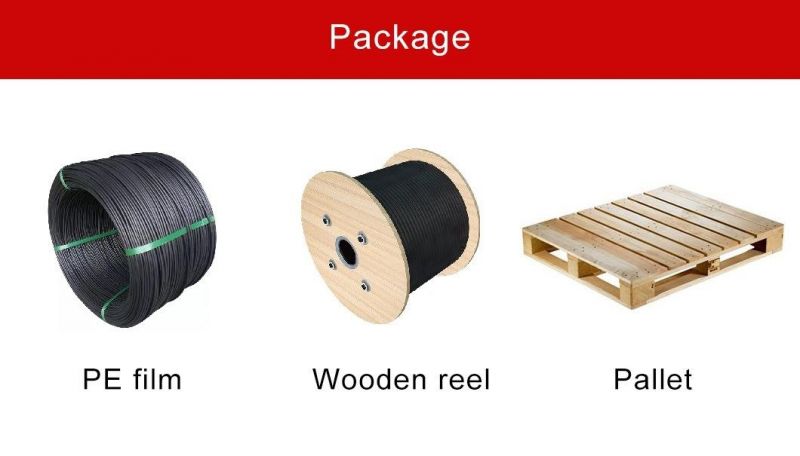

5. What is your packaging?
- Our packaging includes PE film, shrink bag, pull box, paper reel, plastic reel, wooden reel. Depends on what you want!
6. Delivery time and transportation method?
- Shipment can be arranged immediately. By express, by sea, by air, you can ship whatever you want.
7.Payment method?
- T/T, L/C, we also accept most other convenient methods of payment.
Note: G.652D fiber in the table, the fiber type can also be specified according to customer requirements.
Characteristics:
1.Excellent mechanical and temperature performance
2.Special tube filling compound ensure a critical protection of fibre and resist the water
3.Loose tube stranding cable core ensures the cable structure stable
4.Single steel wire as the central strength member to withstand axial loads
5.100% core filling water prevent cable jelly to ensure the cable watertight
6.AL tape longitudinal cover cable core as moisture barrier
7.Inner sheath effectively lower the external mechanical loading
8.Corrugated steel tape longitudinal cover cable core and provide good crush resistance
9.Outer sheath protects cable from ultraviolet radiation
Installation: Direct buried
Applications: Long distance, LAN communication
Standards: YD/T 901 / IEC 60794-3-10
Temperature Range: Transportation:-40ºC~+70ºC;Installation:-5ºC~+50ºC;In use:-40ºC~+70ºC
