• Model NO.：AI-8C
• Transport Package：Cartob Box
• Specification：As in Description
• Trademark：Signal Fire
• Origin：Wuhan, China
• Production Capacity：1000 Sets,Month

Basic Info.

Model NO. AI-8C Transport Package Cartob Box Specification As in Description Trademark Signal Fire Origin Wuhan, China Production Capacity 1000 Sets/Month

Product Description

AI-8C Fusion Splicer Arc Signal Fire Optic Factory Six Motors

Description

Signal Fire AI-8C use the latest core alignment technology with auto focus and six motors, it is a new generation of fiber fusion splicer. It is fully qualified with trunk construction of medium and short distance, FTTH project,security monitoring and other fiber cable splicing projects. The machine uses industrial quad-core CPU, fast response, is currently one of the fastest fiber splicing machine in the market; with 5-inch 800X480 high resolution screen, the operation is simple and intuitively; and up to 300 times focus magnifications, making it is
very easy to observe the fiber with naked eyes. 6 seconds speed core alignment splicing, 15 seconds heating,the working efficiency increased by 50% compared to ordinary splicing machines. Under the conditions of rigorous testing, the performance is still outstanding; toolbox is small, exquisite, durable, and with unique bench design. The design of operating platform reflects the humanistic care; unique lighting design, it is convenient for night construction or repair. Screen brightness is adjustable and it is convenient for outdoor sunshine environment operation. The core parts are using imported brands, aviation metal body material with exquisite details. With the combination of advanced technology and design, the new generation of optical fiber fusion splicer will bring you a reliable and comfortable user experience.

Features

1.5 inches high Resolution colorful LCD display, image can be turned according to position
2.Average splice time: 10 second
3.Average tube-heat time: 25 second
4.Automatic heat mode
5.Lithium battery: Rechargable and up to 200 times of continuous splice and heat after fully charged
6.X or Y axis Separately views with 360 times magnification, or Simultaneously 220 times
7.Cutting-edge technology for image processing
8.New technology of fiber core alignment, enhanced accuracy, PAS Technology
9.New developed technology providing strong wind and dust resistance
10.Automatic self-inspection: Display inspection, Forward inspection
11.Cleave length: 9~16mm (0.25mm) 10~16mm (0.9mm)
12.Splicing mode: Auto & Manual & Full-Auto
13.Storing 6,000 groups of latest splice results
14.New technology of fiber core alignment, enhanced accuracy
15.New 3-in-1 cutting fixture for rubber-insulated wire, pigtail & bare fiber (Patented technology)
16.New Multipurpose 1+N fixture (Patented technology)
17.1+N: one 3-in-1 fixture ( for rubber-insulated wire, fiber optic pigtail, bare fiber) & optional fixtures ( for SC/LC/FC connector).

Specifications


Fiber alignment	Core/cladding alignment / Manual alignment
Splicing time	5S(AI-8C)
Heating time	Automatic heating(Preheating)
Focus mode	Six motors Auto focus
Applicable Fibers	SM(G.652&G.657),MM(G.651)DS(G.657),NZDS(G.655)
Splice Loss	0.025dB(SM),0.01dB(MM), 0.04dB(DS/NZDS)
Control technology	Real-time control and calibration of fusion ARC
Return loss	Better than 60DB
Fiber diameter	Cladding Diameter(80-150μm),Coating Diameter(100-1000μm)
Fiber Cleave Length	Coating less than 250μm(8-16mm),Coating less than 250-1000μm(16mm)
Shrinkable tube	60mm,40mm
Size	130mm*122*148
Power supply	Input AC100-240V 50 / 60HZ, output DC13.5V / 4A, the current



Related Products


Item No.	Name	Specification	Package	Ref.picture

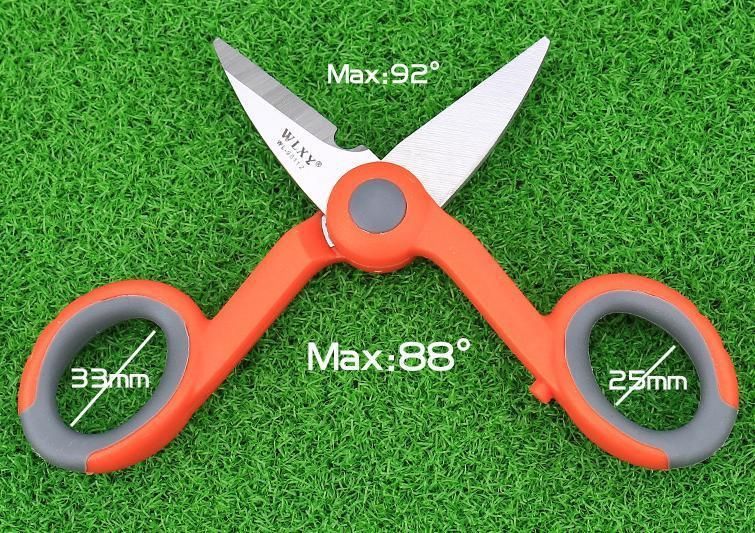

T1001	Kevlar scissors	WL-9011Z	1PCS/BOX

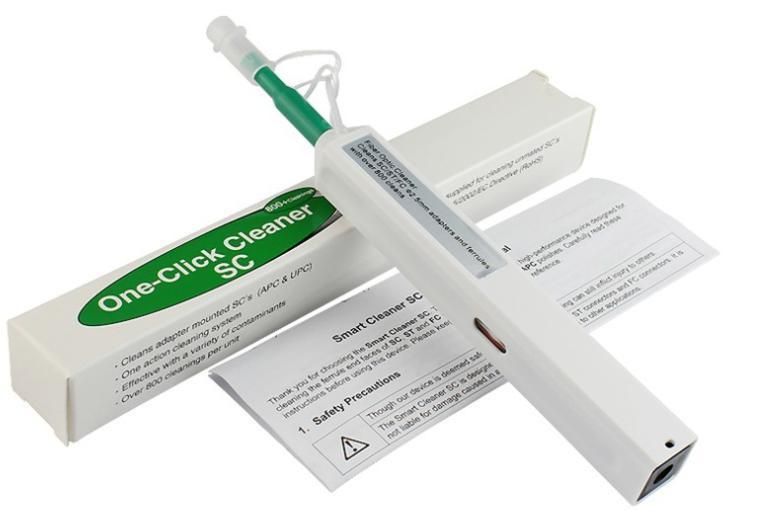

T1008	Fiber optic cleaner	Clean SC/ST/FC Φ2.5mm adapters and ferrules	1 PC/Box

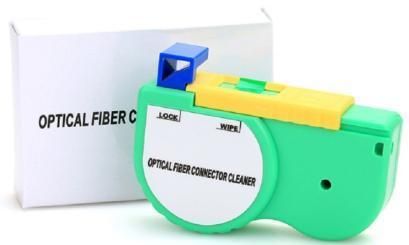

T1009	Fiber optic connector cleaner	Clean FC/SC/ST/E2000,LC/MU,MT etc.	2 PC/Box

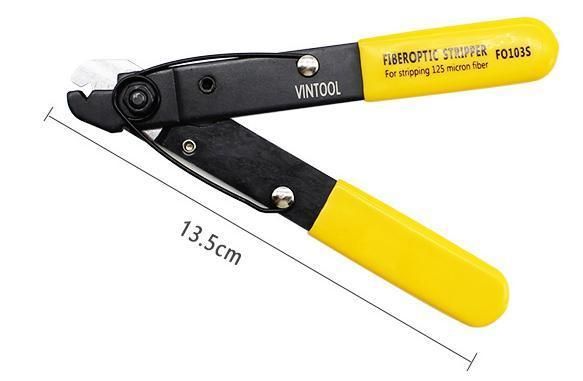

T1010	Fiber Optic Stripper	For 125μm Fiber	1 PC/box

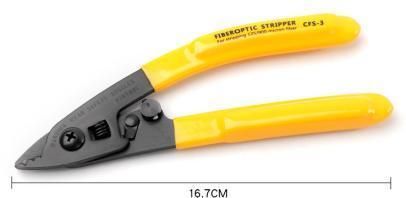

T1011	Fiber Optic Stripper	For 125/900μm Fiber	1 PC/box

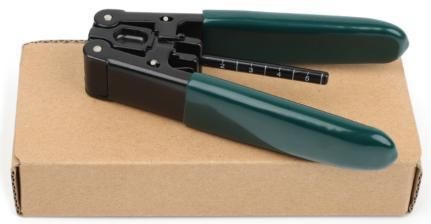

T1012	Fiber Optic Stripper	For 3.0×2.0mm Fiber Cable	1 PC/box

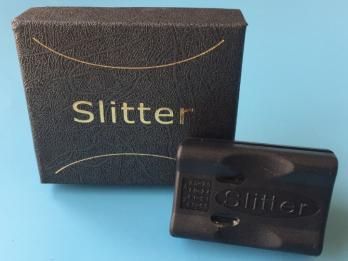

T1014	Fiber optic slitter (Longitudinal type)	For stripping fiber optice tubes of 1.5~1.9 mm,2.0~2.4mm,2.5~2.9mm,3.0~3.3mm	1 PC/box
T1015	Fiber optic slitter (Transverse  type)	For stripping fiber 3.2mm-5.6mm	1 PC/box

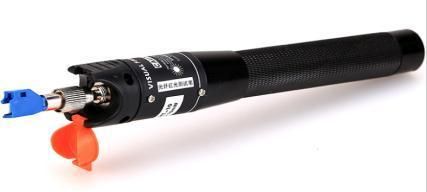

T1017	Visual Fault Locator	20kM

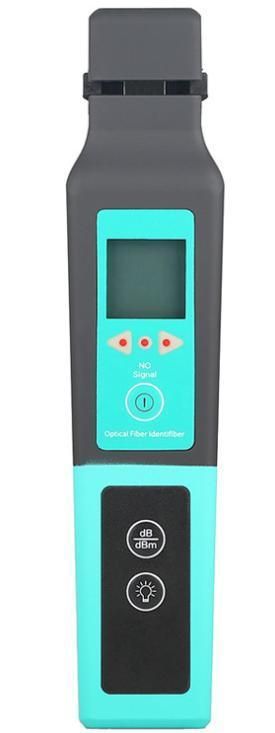

T1021	Optical Fiber Identifier	80nm-1700nm	1PC/Box

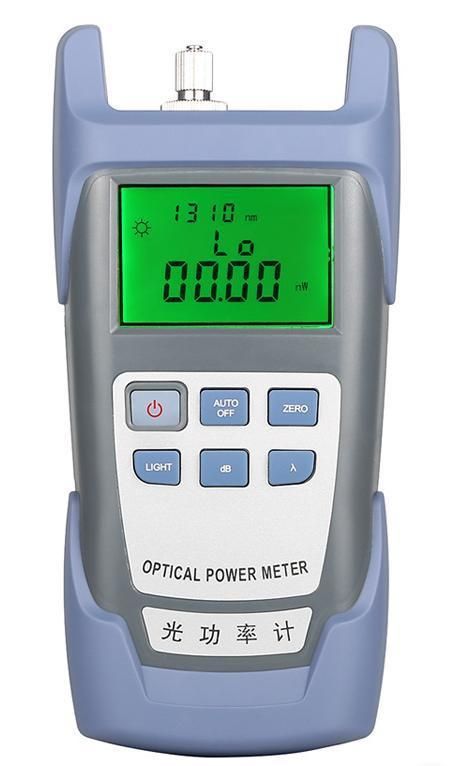

T1022	Optical Power Meter	850/980/1300/1310/1490/1550/1625nm	1PC/Box

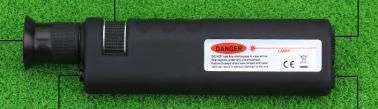

T1023	400 Times Optical Fiber Magnifier	To check SC-FC-ST	1PC/Box
