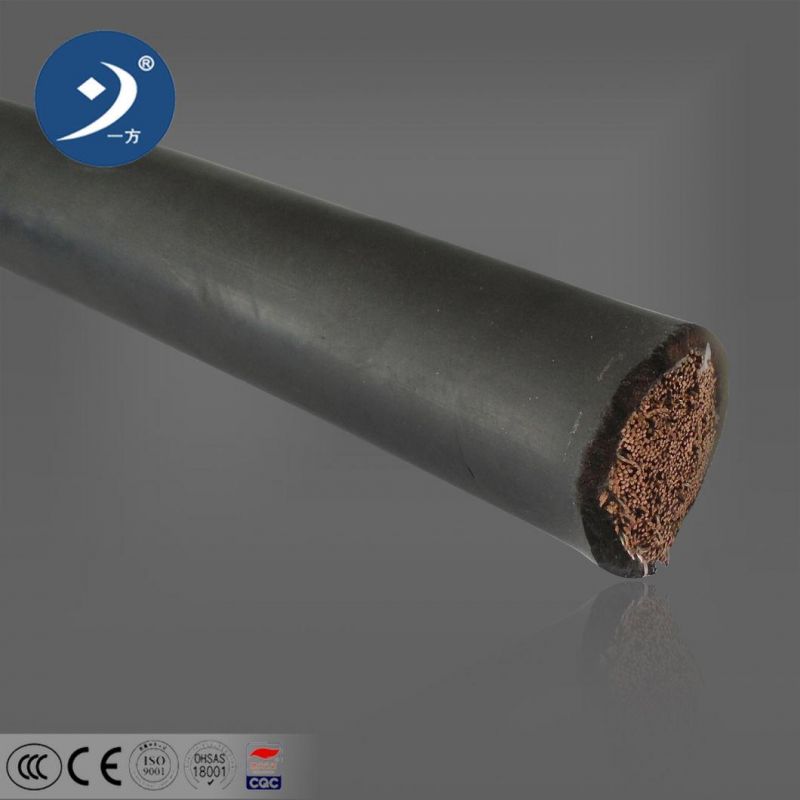

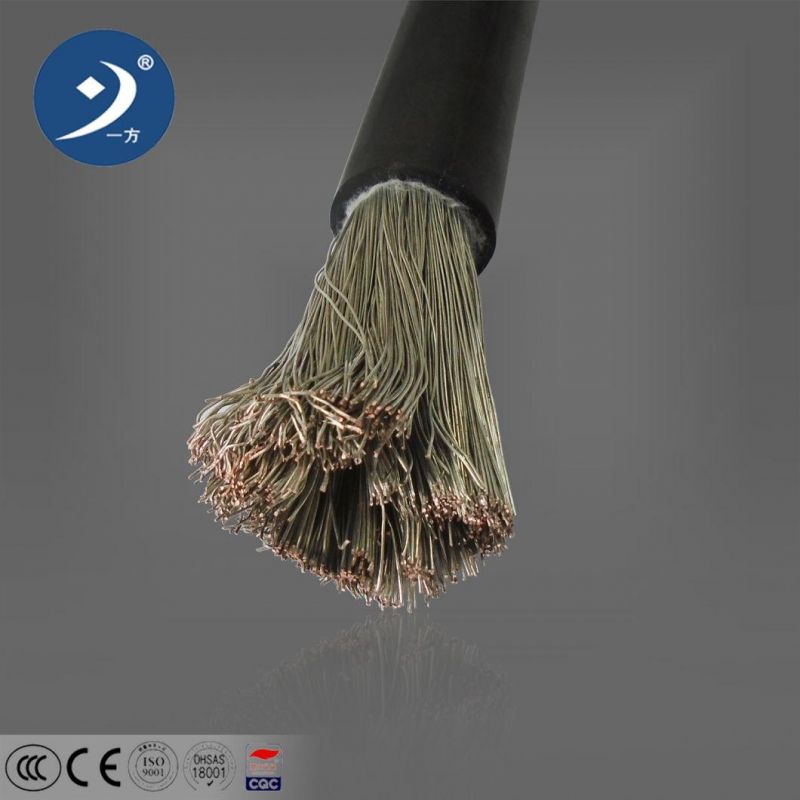

40AWG 35mm2 50 mm2 70 mm2 95 mm2 Flexible PVC Welding Cable
YIFANG ELECTRIC GROUP INC.- Type：Insulated
- Conductor Type：Stranded
- Application：Portable, Mining, Welding Machines etc
- Conductor Material：Copper
- Sheath Material：Rubber
- Insulation Material：Rubber
Base Info
- Model NO.：Welding Cable
- Material Shape：Round Wire
- Range of Application：Welding Machine and Portable Industry Machine
- Certification：ISO9001, CE, UL, CCC, RoHS
- Brand：Yifang
- Rated Voltage：600V or Below
- Jacket：Optional
- Core Number：1 Core
- Nominal Cross-Section：0.5-95mm2
- Transport Package：Coil, Drum, etc
- Specification：25 50 5mm2
- Trademark：YIFANG
- Origin：Zhengzhou, Henan, China
- HS Code：8544492100
- Production Capacity：500km,Month
Description
Model
Name
Main applications
Working temperature
of core ≤0C
YH
Natural Rubber Sheath for Welding Cable
Always used indoor
65
YHF
Neoprene Rubber Sheath Welding Cable
Always used outdoor
65
Synthetic elastomer Sheath Welding Cable
6> Technical Parameters Rubber Welding Cable 10/16/25/35/50/7095/120/150/185mm2
Conductor Nominal Section (mm2)
Conductive Core
Thickness of Section Sheath (mm)
Average Outer Diameter (mm2)
20oC Conductor Resistance≤(Ω/km)
Reference Weight(kg/km)
Number/Diameter of Core(mm)
Min
Max
YH
YHF
10
322/0.20
1.8
7.5
9.7
1.91
146
153.51
16
513/0.20
2.0
9.2
11.5
1.16
218.9
230.44
25
798/0.20
2.0
10.5
13.0
0.758
316.6
331.15
35
1121/0.20
2.0
11.5
14.5
0.536
426
439.87
50
1596/0.20
2.2
13.5
17.0
0.379
592.47
610.55
70
2214/0.20
2.4
15.0
19.5
0.268
790
817.52
95
2997/0.20
2.6
17.0
22.0
0.198
1066.17
1102.97
120
1702/0.30
2.8
19.0
24.0
0.161
1348.25
1392.55
150
2135/0.30
3.0
21.0
27.0
0.129
1678.5
1698.72
185
1443/0.40
3.2
22.0
29.0
0.106
1983.8
2020.74
Our company
Yifang Electric group mainly specialized in wire&cables,including designment,production and sale.

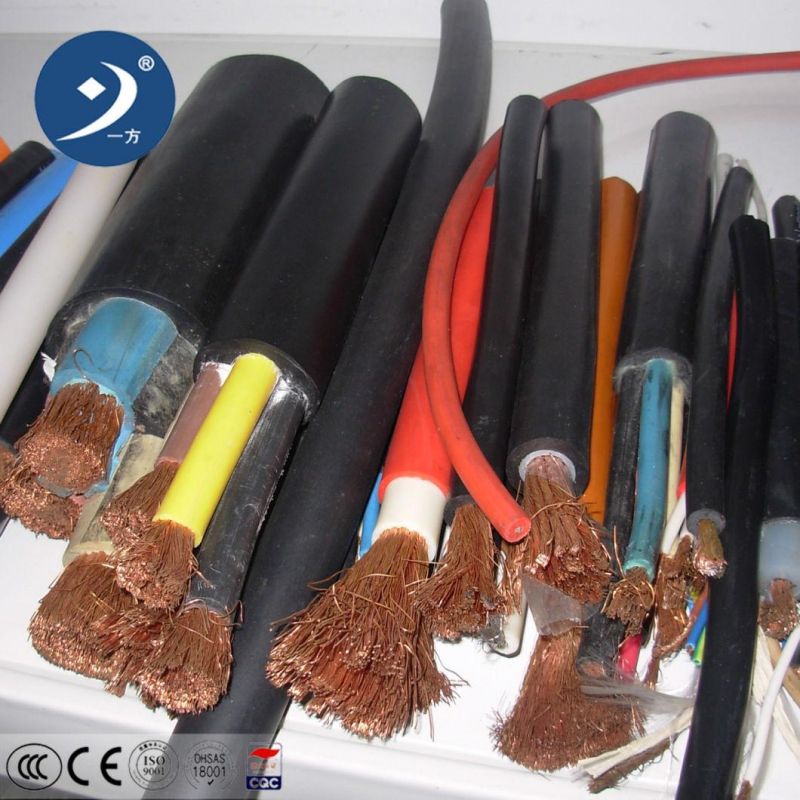

Products are mainly covering low,medium,high voltage(1KV to 220KV) XLPE Insulated power cable,PVC insulated power cable,ABC cable,building cable control cable,rubber cable welding cable Etc.
Our XLPE cable can be manufactured according to the company's specification which is equivalent to IEC 60502,IEC60332,IEC60754. Some indexes are superior to above international standard.
Our certificate
FAQ
1.Q:Are you a factory or trading company?
A: Manufacturing base in Henan ,China, with more than 500 workers.
2.Q:How can I visit there?
A: Sure,If you need,we will arrange the driver to pick you up.
3.Q:How can I get some samples?
A: Contact me on below,Determin sample and address for shipping.
4.Q:Have you ever supplied cables to our country?
A: Yifang Cables have been sold to over 100 countries and regions in the world. can you contact me for details.
5.Q:What is your MOQ?
A: MOQ Normally 500 meters for big diameter cables.Please contact me for detail info if you have specific cable requirement.
6. Q:When can I get the price?
A: Usually quote within 6 hours after we get your inquiry.
7.Q:How long is your delivery time?
A: According to your order's quantity.Usually our lead time is 3 - 20 working days.
