High Voltage EV Cable

Wuxi Huacheng Cable Co., Ltd.
  • Type：Insulated
  • Conductor Type：Stranded
  • Application：Connection of Battery to Engine
  • Conductor Material：Copper
  • Sheath Material：Silicone Rubber Ei2
  • Insulation Material：Silicone Rubber

Base Info

  • Model NO.：FHLR2GCB2G
  • Material Shape：Round Wire
  • Range of Application：LSOH
  • Certification：ISO9001, CE, RoHS, Edag , Dekra,
  • Brand：Hoochan
  • Transport Package：Carton, Wood Drum, Reel
  • Specification：2.5MM2--120MM2
  • Trademark：HOOCHAN
  • Origin：China
  • HS Code：8544492100
  • Production Capacity：1200km,Month

Description

Basic Info.

Model NO. FHLR2GCB2G Material Shape Round Wire Range of Application LSOH Certification ISO9001, CE, RoHS, Edag / Dekra/ Brand Hoochan Transport Package Carton, Wood Drum, Reel Specification 2.5MM2--120MM2 Trademark HOOCHAN Origin China HS Code 8544492100 Production Capacity 1200km/Month

Product Description

Conductor:bare copper
Insulator: silicone rubber
Shielding: Tinned copper
Separator: Al-foil tape
Jacket: Silicone rubber
Color: Orange



Rated Volt.:AC600/DC1000V
Voltage test: AC5000/5 Min.
Rated Temp.:-60ºC~+180ºC


Mechanical properties

Tensile strength: 7.5N/mm2 min.

Elongation at break of insulation: ≥200%

Min.Bending radius: 5×OD

Characteristics:
Silicone rubber wire & cable have very good flexibility and good performance of resistance to high temperature, range from -55ºC up to 180ºC.
The use of silicone rubber, a high grade corona resistant insulation material, gives the cable excellent dielectric strength.

APPLICATION:
It is good to be used as connection cable between HV battery to engine wiring of Hybrid and pure electric vehicle.

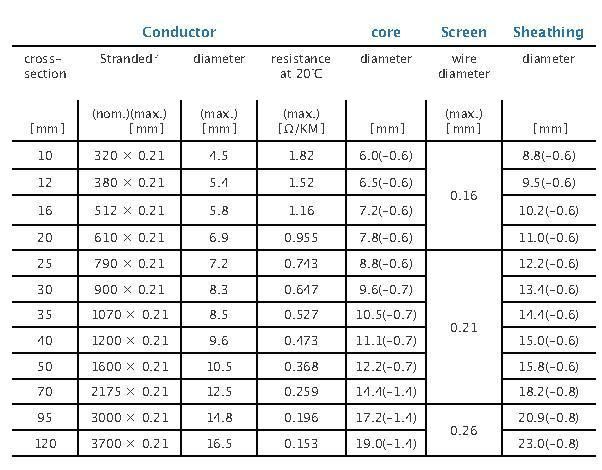

Size sheet

High Voltage EV Cable
