• Model NO.：ftth
• Core：4 Core
• Certification：RoHS, ISO9001, Reach, Tlc, etc
• Brand：Tw-Scie or OEM
• Sheath Material：LSZH PE
• Model No：FTTH Optical Fiber Cable
• Fiber Count：4 Core
• Color of Loose Tube：Blue, Orange, Green, Brown
• Strength Member：Steel or FRP
• Jacket Color：Black, White
• Installation Style：Indoor & Outdoor Self-Support Drop Cable
• Range of Temperature：-20°c~+60°c
• Cable Dimension：3.1*2.0mm
• Cable Weight：8.2kg,Km
• Transport Package：Wooden Drum
• Specification：SGS ROHS REACH ISO
• Trademark：TW-SCIE or OEM
• Origin：Dongguan, Guangdong, China (Mainland)
• HS Code：854470000
• Production Capacity：200km,Day

ItemsDescriptionNumber of fiber1coreFibertypeG657Adiameter250µmStrength membermaterialGalvanized steel wire/FRP/KFRPCable sheath thickness/Max. 0.8mm/Min. 0.4mm//Outer sheathmaterialLSZHdiameter1.8±0.2mmCable size (Height * width)3.0(±0.1) mm ×2.0 (±0.2)mmCable weight8.5 KG±1KGInstallation Temperature range(ºC)-20+60Operation and transport temperature(ºC)-40+70Min Bending Radius(mm)Long term 10DMin Bending
Radius(mm)Short term20DMin allowable
Tensile Strength(N)Long term 40Min allowable
Tensile Strength(N)Short term80    Crush Load (N/100mm)Long term500    Crush Load (N/100mm)short term1000

Fiber characteristic:
 Fiber styleUnitSM
 G652SM
G652DMM
50/125MM
62.5/125MM
OM3-300conditionnm1310/15501310/1550850/1300850/1300850/1300attenuationdB/km≤≤≤≤3.0/1.0≤3.0/1.00.36/0.230.34/0.223.0/1.0--------Dispresion1550nmPs/(nm*km)----≤18--------Dispresion1625nmPs/(nm*km)----≤22-------- Bandwith850nmMHZ.KM-------->=400 >=160 Bandwith1300nmMHZ.KM-------->=800 >=500 Zero dispersion wavelengthnm1300-1324>=1302,
≤1322-------->= 1295,
≤1320Zero dispresion slopenm≤0.092≤0.091------------PMD Maximum Individual Fibr ≤0.2≤0.2--------≤0.11PMD Design Link ValuePs(nm2*k
m)≤0.12≤0.08------------Fibre cutoff wavelength λcnm>= 1180,
≤1330>=1180,
≤1330------------Cable sutoff
wavelength λccnm≤1260≤1260------------MFD1310nmum9.2+/-0.49.2+/-0.4------------1550nmum10.4+/-0.810.4+/-0.8------------Numerical
Aperture(NA) --------0.200+/
-0.0150.275+/-0.
0150.200+/-0
.015Step(mean of bidirectional
measurement)dB≤0.05≤0.05≤0.10≤0.10≤0.10Irregularities over fiber
length and pointdB≤0.05≤0.05≤0.10≤0.10≤0.10        DicontinuityDifference backscatter
coefficientdB/km≤0.05≤0.03≤0.08≤0.10≤0.08Attenuation uniformitydB/km≤0.01≤0.01   Core dimaterum  50+/-1.062.5+/-2.550+/-1.0Cladding diameterum125.0+/-0.1125.0+/-0.1125.0+/-0.1125.0+/-0.1125.0+/-0.1Cladding non-circularity%≤1.0≤1.0≤1.0≤1.0≤1.0Coating diameterum242+/-7242+/-7242+/-7242+/-7242+/-7Coating/chaffinch
concentrically errorum≤12.0≤12.0≤12.0≤12.0≤12.0Coating non circularity%≤6.0≤6.0≤6.0≤6.0≤6.0Core/cladding conentricity errorum≤0.6≤0.6≤1.5≤1.5≤1.5Curl(radius)um≤4≤4------------


Requirement for Order:
1. Fiber sort: Single mode G652,G655,G657, Multi mode 50/125,62.5/125,OM3,OM4.
2. Fiber brand: YOFC, Corning, Fiberhome , OFS etc.
3. Sheath material: PE,LSZH, PVC( can be required).
4. Sheath color: Black ,can be required.

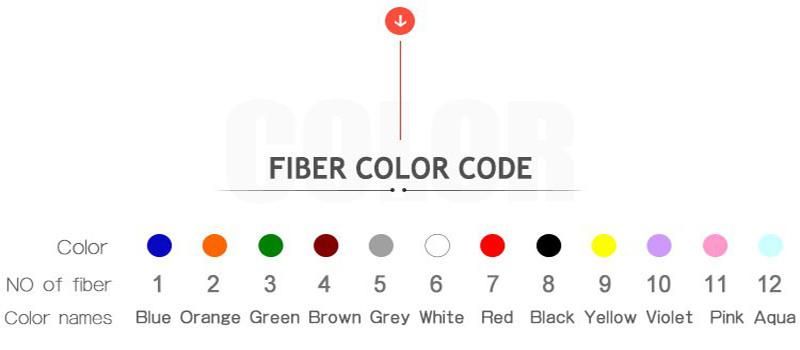

5. The fiber and tube color: according to stranded color, can be required.
6. The cable Size: shall be in accordance with the table, can be required.
7. Length of cable: generally is 2KM, can be required.
8. Other requirement:can be negotiated.

Package :
1. Packing material: Wooden drum
2. Packing length: Customzied

More Products:



FAQ:

1.Are you a real manufacturer?

Yes.  We are a real manufacturer  with 10 years' history.

2.What is your fiber brand ?

Corning, YOFC, FiberHome, etc



3.Can you accept small order?

Yes, small order is available .We support new project of our customers as we know business is always from small order.



4.What is your warranty period?

25 years for fiber optic cable



5.Which kind of certification you have ?

ISO9001, SGS, UL, RoHs.



6.What is your delivery time?

Usually within 3-10 working days



7.What about your annual production capacity?

Outdoor/Indoor Fiber Optic Cable, our annual output is 8,000,000 KM;

FTTH/FTTX/FTTA Cable, it is 6,000,000 KM per year;

Patch Cord/Pigtails, it is 12,400,000 Pieces per year.



8.What is your payment way?

 T/T, L/C, Western Union and Paypal.
