• Model NO.：AAAC 120mm2
• Material Shape：Round Wire
• Range of Application：Overhead Power Transmission
• Certification：ISO9001, CE, UL, CCC, RoHS, VDE
• Brand：Hnbf Cable
• Standard：DIN Standard
• Transport Package：Exported Wooden Drum or Rolls
• Specification：120mm2 AAAC Conductor
• Trademark：HNBF Cable
• Origin：China
• HS Code：7614900000
• Production Capacity：900000m,Month

Basic Info.

Model NO. AAAC 120mm2 Material Shape Round Wire Range of Application Overhead Power Transmission Certification ISO9001, CE, UL, CCC, RoHS, VDE Brand Hnbf Cable Standard DIN Standard Transport Package Exported Wooden Drum or Rolls Specification 120mm2 AAAC Conductor Trademark HNBF Cable Origin China HS Code 7614900000 Production Capacity 900000m/Month

Product Description

Product Discription

Application

Conductor(AAAC) have been widely used in power transmission lines with various voltage levels, and also used in power lines across great rivers, heavy ice area, and other places special geographical characteristics.

The conductor have excellent advantages of high strength, large current carrying capacity and good catenary property as well as wear-resistance, anti-crush and corrosion-proof with simple structure, convenient installation and maintenance, low cost for the line, large transmission capacity.

Specifications

Conductor(AAAC) bear conductor meets or exceeds the following ASTM Specifications:
B-398 Aluminum Alloy 6201-T81 Wire for Electrical Purpose.
B-399 Concentrical-Lay-Stranded 6201-T81 Aluminum Alloy Conductors

Part of Technical Data:

Nominal Area	Conductor Stranding	Sectional Area	Outter Diameter	Weight	Rated Strength	Max. Conductor DC Resistance at 20ºC
mm2	No./mm	mm2	mm	kg/km	daN	Ω/km
120	19/2.80	116.99	14	322	3268	0.2854

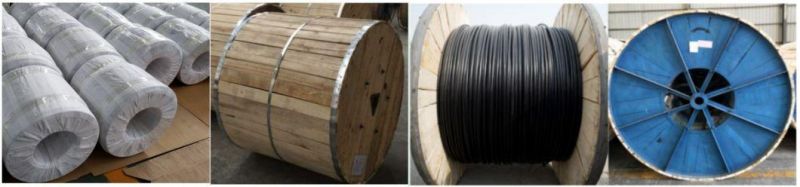

Packing and Delivery

Woven Bag wrapping(soft packing/rolls) size:
Advantages: low price, light weight and space saving.
Disadvantages: workers are inconvenient to use (cannot roll), production is slightly troublesome, and labor costs are slightly higher.

Wooden Drum Packing Details: The wooden drum will be fumigated. In order to prevent rolling, it will also be reinforced with environmentally friendly materials. This packaging method is easy to construct, easy to install, easy to produce, but slightly more expensive.

Wooden Steel Drum:  Packing Details: This wooden-steel drum is suitable for cables with an outer diameter of more than 30mm. Packing Details: Usually use international wooden drums and rolls, can also as buyer's requirements. The Package size will according to the cable's size.

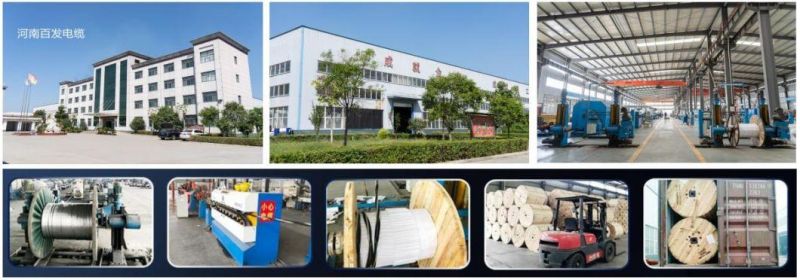

Our Factory

The annual production capacity is 1,450,000.00 km cables and wires. In our factory, there are above 300 staffs totally including workers and supervisors, besides, we also have our own rights for importation and exportation. Our main products are Bare Conductor(acsr, acar, aaac, aac), ABC Cable(aerial bundled cable), Electrical Wire, and Power Cable.

 Certifications

Our company has passed ISO 9000 quality management system certification, ISO 9000 occupational health and safety management system certification, ISO 9000 environmental management system certification, CCC China National Compulsory Product Certification, CE Certificate of Conformity, and Rohs.

International Fair
We participate in the Canton Fair and foreign exhibitions every year. Our products sales network has covered more than 20 provinces and municipalities in China. Most of products are sold to many countries for overseas marketing including the following areas like South America, North America, Latin America, South Asia, Southeast Asia, Africa, and Europe etc.

Why Choose Us?

Our advantages
* Advanced production and testing equipment.
* Strict controlling of raw materials.
* Raw material origin, factory direct sales, competitive price.
* Inquiry and consulting support.
* Free sample and sample testing support.
* Fast delivery.
* Good pre-sale and after-sale services.
