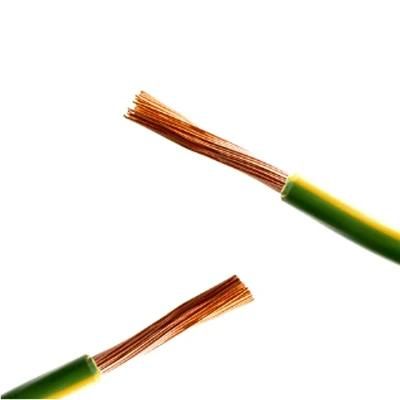

Single Core 6mm 600V Copper PVC Insulated Building Electrical Wire
People's Cable Group Co., Ltd.- Type：Insulated
- Conductor Type：Solid or Stranded
- Application：Overhead, Heating, Underground, Building, Home, Constrction
- Conductor Material：Copper
- Sheath Material：PVC
- Insulation Material：PVC, XLPE, Silicone Rubber, PE
Base Info
- Model NO.：BV 6
- Material Shape：Round Wire
- Range of Application：Fire Resistant, Flame Retardant, Lsoh
- Certification：ISO9001, CE, CCC, RoHS
- Brand：People′s Cable Group
- Rated Voltage：300,300V, 300,500V, 450,750V
- Standard：IEC, GB, JIS, BS, ASTM, DIN, UL
- Color：Black, Red, Green, Grey, Yellow,Green, Required
- Packing Length：100m
- OEM：Yes
- Manufacturer：Factory
- Core：1, 2, 3
- Electric Wire Price：According to Size and Quantity
- Transport Package：Rolls or According to Cusotmers′ Request
- Specification：1.5-240mm2
- Trademark：RMJT
- Origin：Henan, China
- HS Code：8544492100
- Production Capacity：5000000km,Year
Description
Flexible cables(cords) Non-sheathed flat cords 60227IEC42(RVB) 300/300 2 0.5~0.75 Cords for indoor illumination loops 60227IEC43 (SVR) 300/300 1 0.5~0.75 Light-duty PVC sheathed cords 60227IEC52(RVV) 300/300 2,3 0.5~0.75 Ordinary PVC sheathed cords 60227IEC53(RVV) 300/500 2,3,4,5 0.75~2.5 Copper conductor PVC insulated stranded cords for connecting RVS 300/300 2 0.5~0.75 Technical Parameters: FAQ:Nominal Section(mm2) Number /diameter of core (mm) Thickness of insulation(mm) outer diameter (mm) BV weight (kg/km) BLV weight (kg/km) Thickness of sheath(mm) 1.5 1/1.38 0.70 2.78 20.07 / 0.80 2.5 1/1.78 0.80 3.38 31.72 16.32 0.80 4 1/2.25 0.80 3.85 46.70 22.09 0.90 6 1/2.76 0.80 4.36 66.43 29.39 0.90 10 7/1.35 1.00 6.05 113.15 50.71 0.90 16 7/1.70 1.00 7.10 170.56 71.55 0.90 25 7/2.14 1.20 8.82 267.85 110.96 1.20 35 7/2.52 1.20 9.96 361.34 143.78 1.20 50 19/1.78 1.40 11.70 490.78 195.74 1.40 70 19/2.14 1.40 13.50 691.22 264.77 1.40 95 19/2.52 1.60 15.80 954.92 363.58 1.60 120 37/2.03 1.60 17.41 1191.27 443.70 1.60 150 37/2.25 1.80 19.35 1465.85 547.47 1.80 185 37/2.52 2.00 21.64 1837.14 685.12 2.00 240 61/2.24 2.20 24.56 2384.59 883.48 2.20 300 61/2.50 2.40 27.30 2963.24 1093.44 2.40

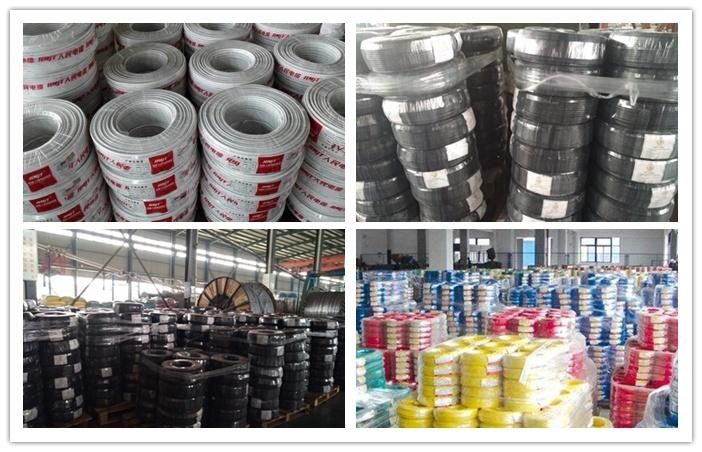

Electric Wire Package
About Us

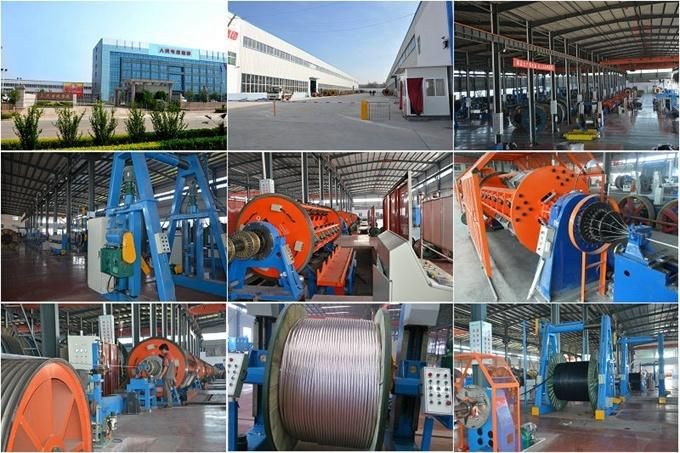

People's Cable Group Co., Ltd. Was founded in 2007, with good transport facilities which adjacent to the 310 national highway-Lian Huo highway. Our company had 2 factories(Zhitian factory and Zhulin factory), occupies total area of more than 300,000 square meters, with building area 230,000 square meters. The real capital assets more than 10 million USD, with 630 staff members, 65 of which are professional and technical experts.
Our mainly products as follow:
1--pvc insulated electric wire whatever copper conductor,aluminum conductor, CCA(copper clad aluminum), CCS(copper clad steel).

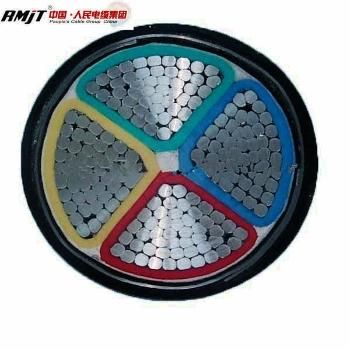

2--pvc and xlpe insulated power cable with or without armor upto 35kv.
3--rubber cable like welding cable, mine cable, EPR cable and so on.
4--aerial bundled cable(ABC cable) up to 10kv.

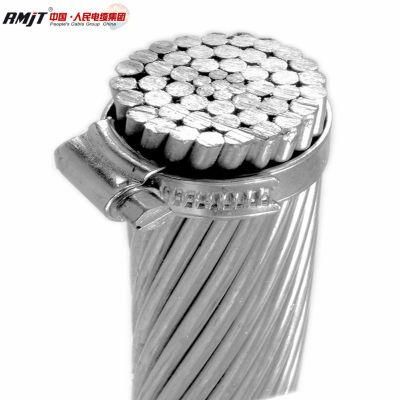

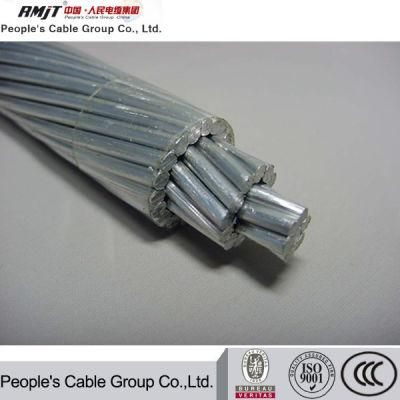

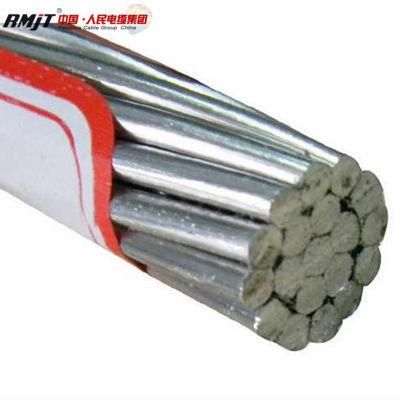

5--bare conductor like AAC, AAAC, ACSR, ACAR, ACSR/AW, aluminum clad steel wire, galvanized steel wire, PC steel wire and so on.
Certification
As top rank of the cable supplier in China, we have obtained CCC, ISO9001, ISO14001, CE, OHSAS certificates, passed the SGS and BV test, and our brand "RMJT" be given China famous brand.
Customer Visit
We have a professional sales team with each of them has engaged in this job for 3-10 years,
so that we can provide the comprehensive and professional technology for you. W the perfect quality and after sales service,till now we have exported to more than 80 countries, welcome to visit us and establish win-win business relationship!
If you didn't find the species of cables you need, please contact us directly, we will reply you quickly.
Are you a trading company or manufacturer?
We are professional manufacturer in Henan, China.
What is the MOQ?
Mostly we sell from stock for normal items, you can buy any quantity unless it is customed-made.
Can you offer me a free sample?
Yes, after price confirmation, you can require for samples to check our quality. Sample is free but the freight charge should be paid.
How long to get the sample?
After you pay the freight charge and send us confirmed files, the samples will be ready for delivery in 3-7 days. The samples will be sent to you via express and arrive in 3~5 days.
How is your package?
Normally packed with coils and cartons, and wooden/steel wooden drums, other ways can be done according you.
How is the payment?
T/T, L/C is accepted.
What is the lead time for mass production?
Honestly, it depends on the order quantity and the season you place the order. The best record we keep is delivering 10 kilometers cable within a week. Generally speaking, we suggest that you start inquiry two months before the date you would like to get the products at your country.
Welcome your inquiry! Any question please feel free to contact me.
