Coax Jumper Cable Assembly LMR400 with N/SMA/TNC Connector
Otto Cable Technology Co., Ltd.- Application：Local Communication Cable, Coaxial Cable, RF Cable
- Conductor Material：BC,CCA
- Cover Material：PVC,PE,LSZH
- Type：Coaxial
- Material Shape：Round Wire
- Conductor Type：Solid
Base Info
- Model NO.：LMR400
- Wire Core Material：BC,CCA

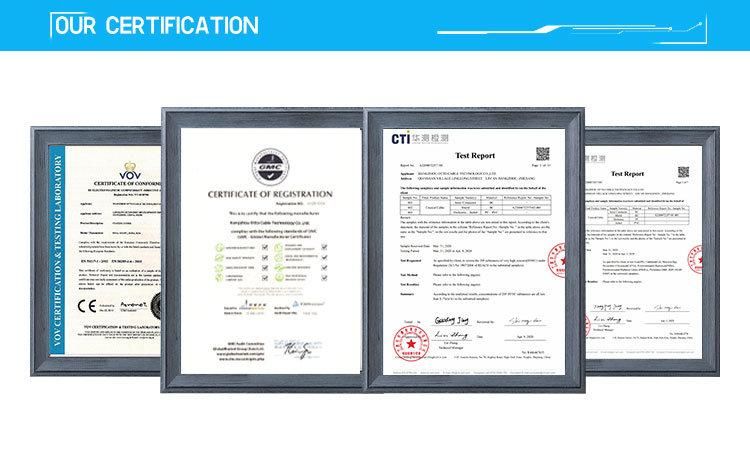

- Certification：CE, ISO, RoHS, SGS
- Model：Coaxial
- Brand：Otto Cable
- Transport Package：Pallet; Carton; Spool
- Specification：10.29mm
- Trademark：OTTO CABLE
- Origin：China
- HS Code：8544200000
- Production Capacity：50km,Day
Description
Basic Info.
Model NO. LMR400 Wire Core Material BC/CCA Certification CE, ISO, RoHS, SGS Model Coaxial Brand Otto Cable Transport Package Pallet; Carton; Spool Specification 10.29mm Trademark OTTO CABLE Origin China HS Code 8544200000 Production Capacity 50km/DayProduct Description
Coax Jumper Cable Assembly LMR400 with N/SMA/TNC Connector
Application:
• Wireless Communications Systems
• DAS
• Mobile Antennas
• Cellphone Signal Repeaters
Features:
• 50 Ohm
• Good shielding effectiveness
• 0 - 6GHz
• Excellent performance at high frequency
• Replacement for RG8, 7D-FB, 8D-FB.
• REACH/RoHS compliant, CE certified.
• OEM/ODM
Assemblies:
• N, TNC, BNC, SMA......
• Customized Cable length / color/ roll size/ packing
• Various colors of Heat shrinkable tube
Construction
| Item | Material | Diameter(mm) |
| Inner Conductor Dielectric First Shield Second Shield Jacket | Copper Clad Aluminum Foam PE Bonded Aluminum Foil Tinned Copper Wire Braid PVC | 2.74 7.24 7.39 N/A 10.30 |
Electrical Characteristics
| Impedance (Ω) Capacitance (pF/m) Velocity of Propagation (%) Return Loss Screening Effectiveness(db) Voltage With Stand Installation Temp(ºC) Operating Temp(ºC) Bending radius(mm) | 50±3 78.4 85.0 ≥18 ≥90 2000.0 -20 to +85 -20 to +85 Min. 200 |
Attenuation (@20ºC)
| Frequency(MHz) | Max Attenuation(dB/100m) |
| 150 450 900 1500 1800 2000 2500 | 5.6 9.7 13.8 18.0 20.1 21.6 24.5 |
