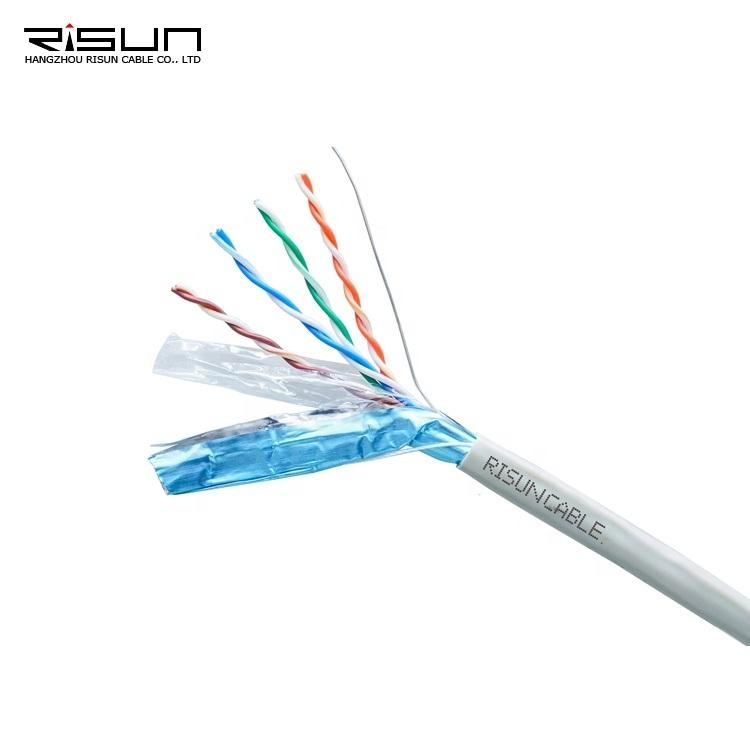

Cat5e 24AWG 1000FT FTP Ethernet Bare Copper Network Cable
Hangzhou Risun Cable Co., Ltd.- Application：Local Communication Cable, LAN Cable
- Conductor Material：BC,CCS,CCA,TC,CU,CCAG
- Cover Material：PVC,PE,LSZH
- Type：Cat 5
- Material Shape：Round Wire
- Conductor Type：Solid
Base Info
- Model NO.：FTP CAT5E
- Wire Core Material：Bare Copper Wire
- Certification：CE, ISO, RoHS, CPR,ETL,SGS
- Model：FTP Cat5e
- Brand：Risun or OEM
- Color：as Request
- Insulation：HDPE
- Shield：Al,Pet Foil
- Flame Retardant：Available
- UV：Available
- Transport Package：305m,Pull Box, 2boxes,CTN
- Specification：0.51cu, 1.00HDPE, 6.2PVC, LSZH, PE
- Trademark：Risun or OEM
- Origin：Hangzhou, China(Mainland)
- HS Code：8544491100
- Production Capacity：20000 Boxes , Month
Description
Basic Info.
Model NO. FTP CAT5E Wire Core Material Bare Copper Wire Certification CE, ISO, RoHS, CPR,ETL,SGS Model FTP Cat5e Brand Risun or OEM Color as Request Insulation HDPE Shield Al/Pet Foil Flame Retardant Available UV Available Transport Package 305m/Pull Box, 2boxes/CTN Specification 0.51cu, 1.00HDPE, 6.2PVC, LSZH, PE Trademark Risun or OEM Origin Hangzhou, China(Mainland) HS Code 8544491100 Production Capacity 20000 Boxes / MonthProduct Description
Cat5e 24AWG 1000FT FTP Ethernet Bare Copper Network Cablecompany information
construction| conductor | 24awg (solid or strand) cu |
| insulation | HDPE 0.90±0.02mm |
| shield | Polyester Tape/Al Foil |
| Drain Wire | 0.4mm TC |
| sheath | PVC+PE/PE+PE |
| cores/pairs | 8/4 |
mechanical properties
| elongation | min. 300% |
| temperature range | -20 up to +75° c |
| tensile strength | min 1.68kg/mm² |

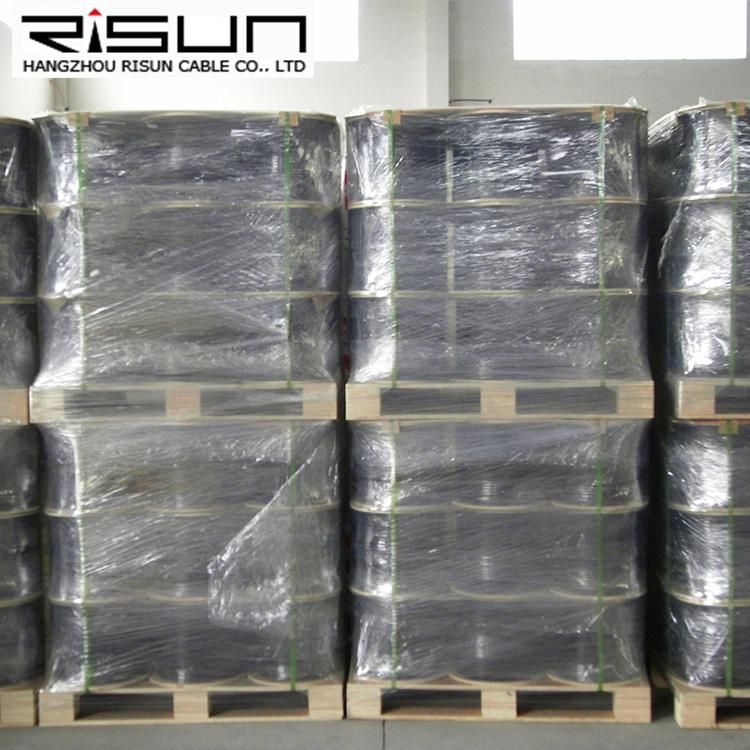

packing

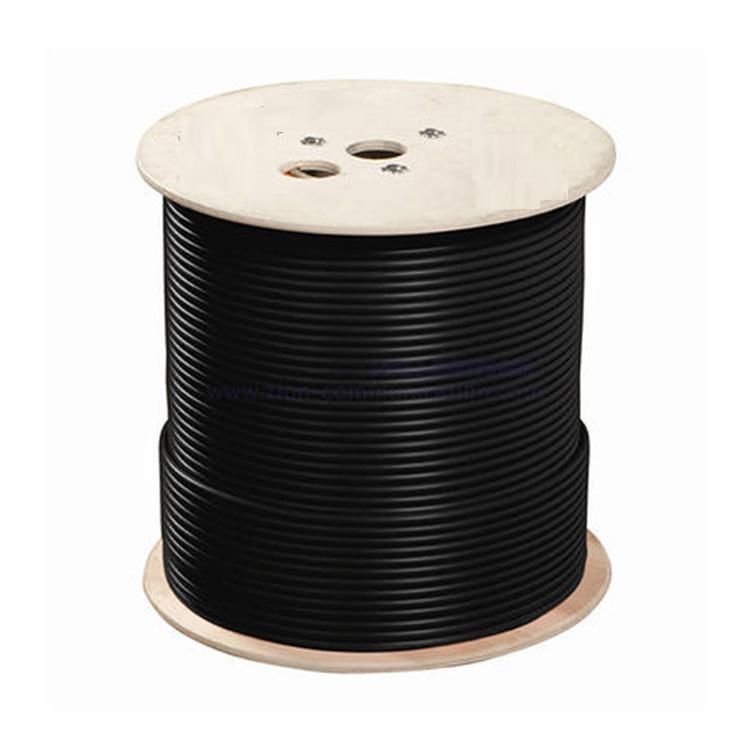

1) packing lengths: 305m/Wooden Drum, or other lengths available according to client's request.
2) inner packing: wooden reel, plastic reel, and paper reel available.
3) outer packing: carton box, pull box
4) other packing available according to client's request.
5) any question, please contact us without hesitation. we'll reply as soon as we can.

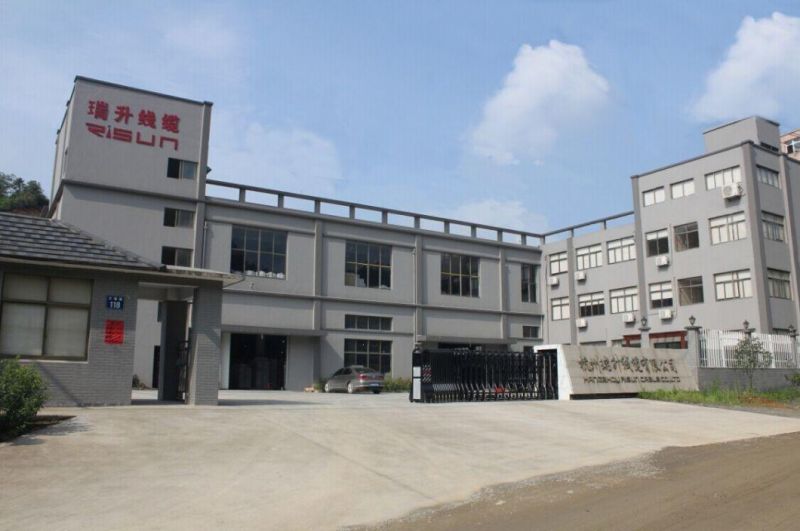

Company Profile
Risun is a manufacturer and exporter of high quality lan cable/network cable,coaxial cable, alarm cable and telephone cable in china.
95% of our goods for the export market. 14 years of experience in this field makes us very familiar with export handling.we have customer in more than 40 countries all over the world.
in the past 14 years, we have already get ETL, CE, ROHS, ISO9001,CPR certification.
process of production
Welcome to RISUN,we will be happy to serve you!
