50 Ohm 3D-FB Coaxial Twin Cable Dual Cable for Antenna
Otto Cable Technology Co., Ltd.- Application：Local Communication Cable, Coaxial Cable, RF Cable
- Conductor Material：BC,CCS
- Cover Material：PVC,PE,LSZH
- Type：Coaxial
- Material Shape：Round Wire
- Conductor Type：Solid
Base Info
- Model NO.：3D-FB Dual
- Wire Core Material：BC,CCS
- Certification：CE, ISO, RoHS
- Model：3D-FB Dual
- Brand：Otto Cable
- Transport Package：Pallet; Carton; Spool
- Specification：5.00mm
- Trademark：OTTO CABLE
- Origin：Zhejiang, China
- HS Code：8544200000
- Production Capacity：150km,Day
Description
Basic Info.
Model NO. 3D-FB Dual Wire Core Material BC/CCS Certification CE, ISO, RoHS Model 3D-FB Dual Brand Otto Cable Transport Package Pallet; Carton; Spool Specification 5.00mm Trademark OTTO CABLE Origin Zhejiang, China HS Code 8544200000 Production Capacity 150km/DayProduct Description
50 Ohm 3D-FB Coaxial Twin Cable Dual Cable for AntennaApplication:
• Antennas
• Base Station Atenna

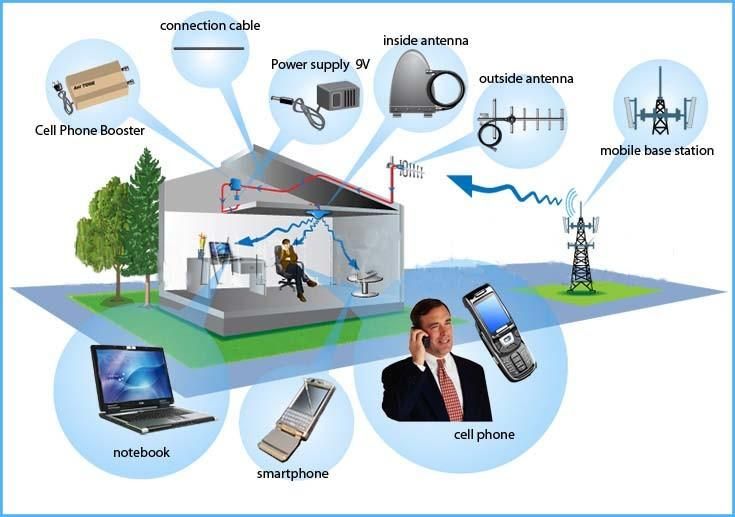

• Cellphone Signal Repeaters
• Signal transmission
Features:
• 50 Ohm
• Good shielding effectiveness
• 0 - 6GHz
• Excellent performance at high frequency
• Replacement for RG58
• REACH/RoHS compliant, CE certified.
• OEM/ODM

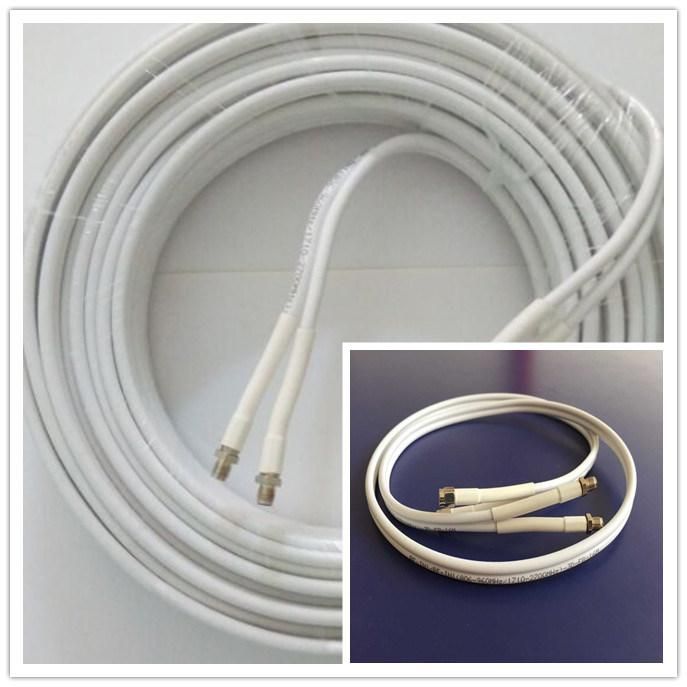

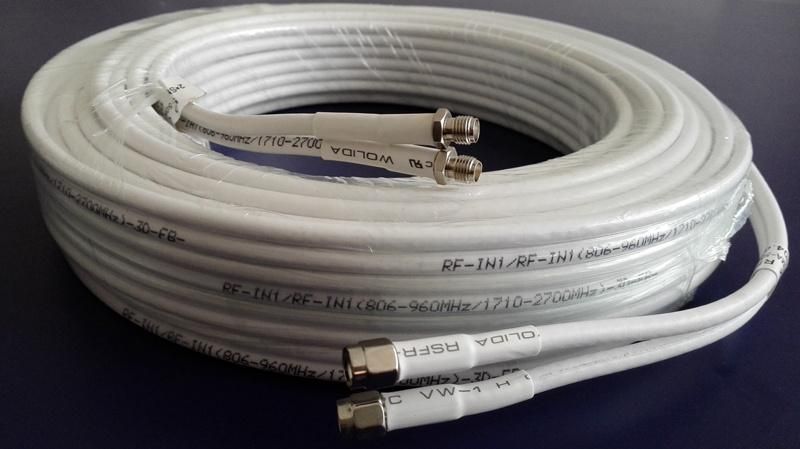

Assemblies:

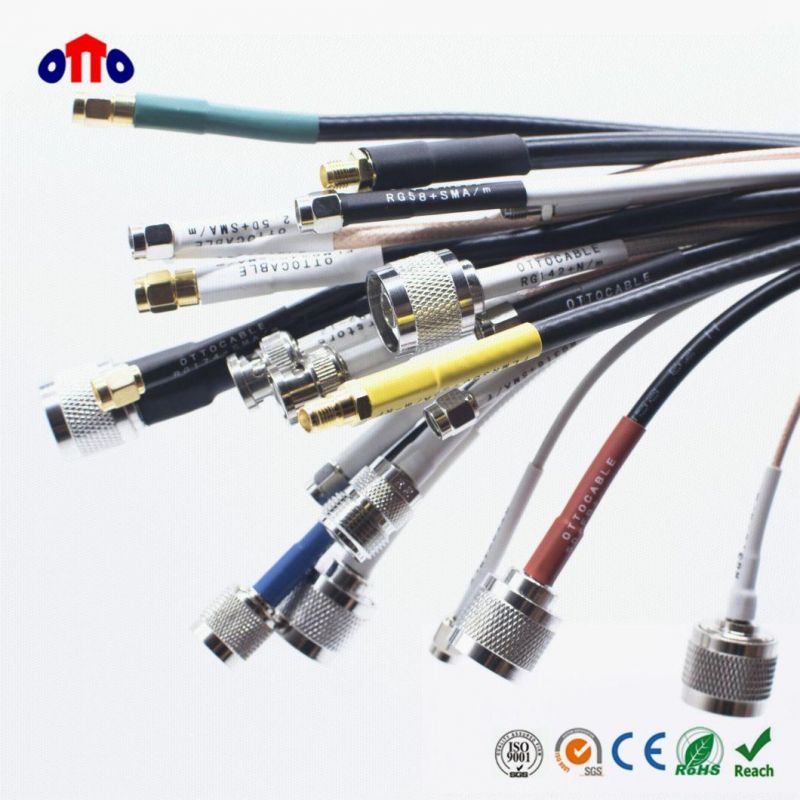

• N, TNC, BNC, SMA......

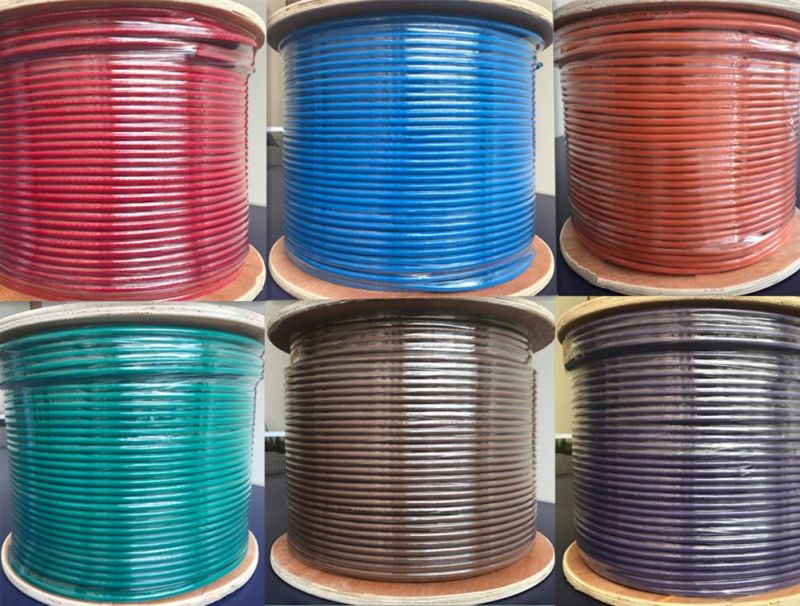

• Customized Cable length / color/ roll size/ packing
• Various colors of Heat shrinkable tube
Construction
| Item | Material | Diameter(mm) |
| Inner Conductor Dielectric First Shield Second Shield Jacket | Bare Copper / Copper Clad Steel Foam PE Bonded Aluminum Foil Tinned Copper Wire Braid PVC/LSZH | 1.00 3.00 3.10 3.60 5.00 |
Electrical Characteristics
| Impedance (Ω) Capacitance (pF/m) Velocity of Propagation (%) Return Loss Screening Effectiveness(db) VSWR Installation Temp(ºC) Operating Temp(ºC) Bending radius(mm) | 50±3 82 81.0 ≥20 ≥75 ≤1.2 -25 to +70 -25 to +70 27.0 |
Attenuation (@20ºC)
| Frequency(MHz) | Max Attenuation(dB/100m) |
| 900 1200 1500 1800 2000 2200 2500 | 31.8 37.2 41.5 45.6 48.2 50.6 54.1 |
