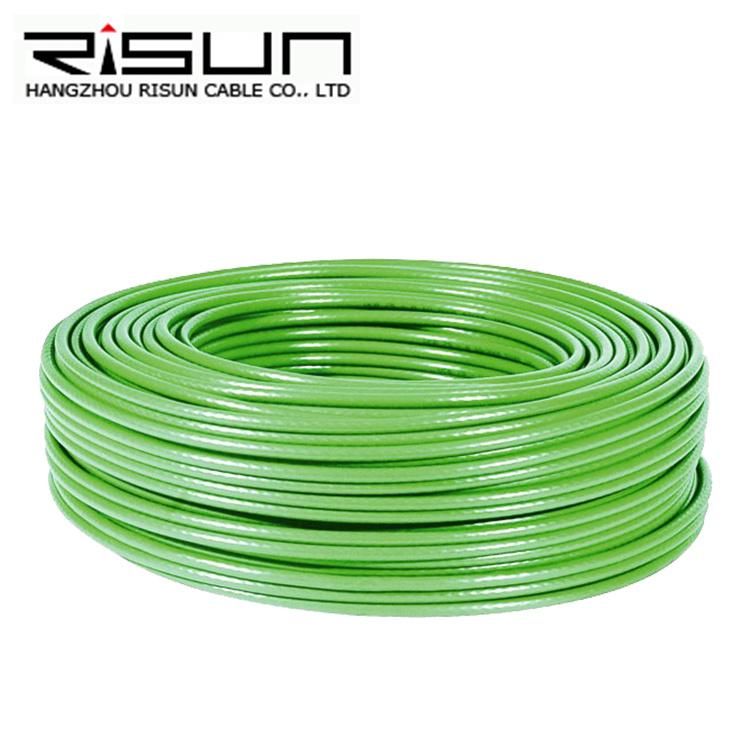

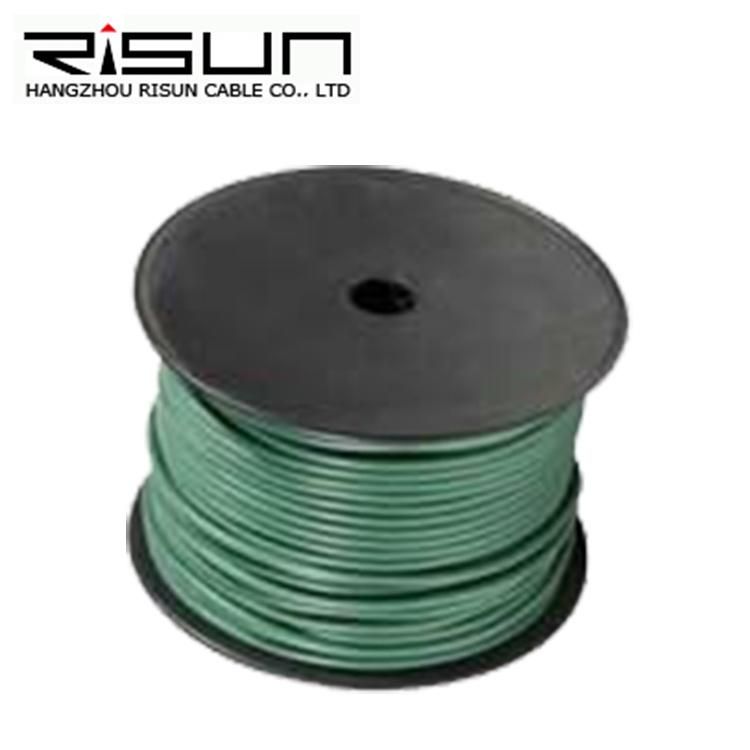

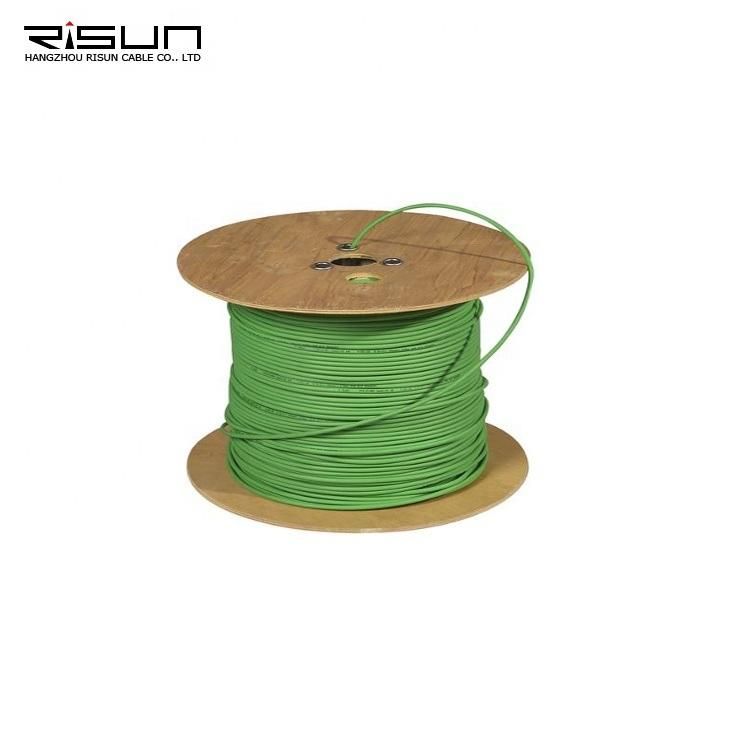

Kx6 Green 75ohm Coaxial Cable Used for CCTV Cable
Hangzhou Risun Cable Co., Ltd.- Application：Coaxial Cable
- Conductor Material：Bc,Tc
- Cover Material：PVC,PE,LSZH
- Type：Coaxial Cable
- Material Shape：Round Wire
- Conductor Type：Solid
Base Info
- Model NO.：75ohm coaxial cable
- Wire Core Material：Bare Copper Wire
- Certification：CE, ISO, RoHS, CPR,ETL,SGS
- Model：Kx6 Coaxial Cable
- Brand：Risun or OEM
- Color：Green
- Inner Conductor：7*0.20mmcu
- Shield：80% CCA or 95% Cu
- Dielectric：3.70mm Spe
- Jacket：6.10mmpvc
- Export Length：100m,Roll, 305m,Drum,500m,Drum
- Transport Package：305pull,Box, 2boxes,CTN
- Specification：KX6 Cable
- Trademark：Risun or OEM
- Origin：Hangzhou, China(Mainland)
- HS Code：8544491100
- Production Capacity：20000 Boxes , Month
Description
ConductorDielectric Shield Jacket Material PVC Dia. (mm) 6.10±0.10
NOMINAL ATTENUATION[@ 68° F. (20° C)]
Application & Certificates:
Q4. DO YOU PROVIDE SAMPLES? IS IT FREE OR EXTRA?A: Yes,we welcome sample order to test and check quality.we could offer the sample for free charge but do not pay freight.
Secondly We quote according to your requirements or our suggestions.
Thirdly customer confirms the samples and places deposit for formal order.
Fourthly We arrange the production.
Q6.IS IT OK TO PRINT MY LOGO ON CABLES ?
| Impedance(Ω) | 75±3 |
| Velocity of Propagation | 66% |
| Capacitance(pF/m) | 67.3 |
NOMINAL ATTENUATION[@ 68° F. (20° C)]
| Frequency(MHz) | Attenuation (dB/100m) |
| 10 | 5.0 |
| 50 | 8.10 |
| 100 | 13.0 |
| 200 | 18.5 |
| 400 | 22.5 |
| 850 | 34.5 |
| 950 | 37.5 |
| 1000 | 45.0 |
Application & Certificates:
Company Introduction
Packing:
We can offer same as per customer's requirement for option! Mainly we can offer Wooden Drum ,Plastic Drum,Pallet for choice.Any Other Packing Requirement can be acceptable.

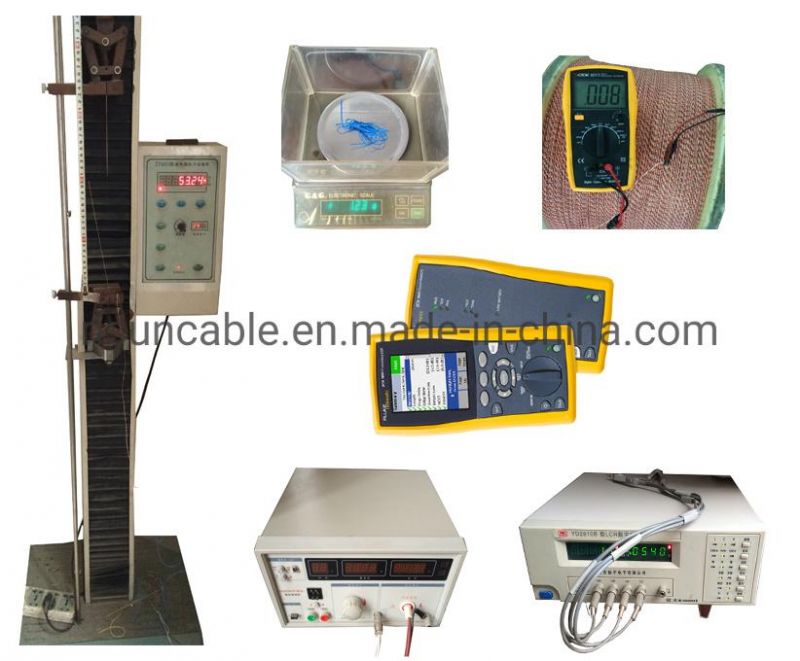

Production line:
FAQ
Q1. ARE YOU TRADING COMPANY OR MANUFACTURER?
A: We are factory.Q2. HOW LONG IS YOUR DELIVERY TIME?
A:Generally it is 5-10 days, or it is 20-30 days if the goods are not in stock,its is according to quantity.Q3. DO YOU HAVE ANY MOQ LIMIT FOR ORDER?
A: Normally, 10kms per one specification and one colorQ4. DO YOU PROVIDE SAMPLES? IS IT FREE OR EXTRA?A: Yes,we welcome sample order to test and check quality.we could offer the sample for free charge but do not pay freight.
Q5. HOW TO PROCEED AN ORDER FOR CABLES?
A: Firstly let us know your requirements or application.Secondly We quote according to your requirements or our suggestions.
Thirdly customer confirms the samples and places deposit for formal order.
Fourthly We arrange the production.
