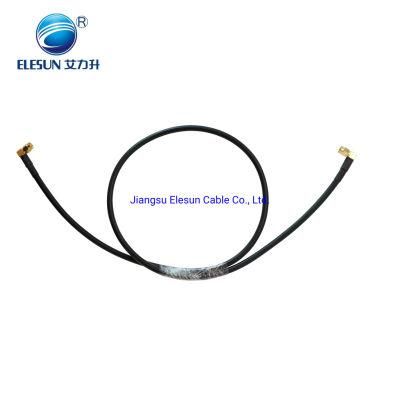

Manufacture RF WiFi Antenna Extension Cable N Male to SMA Male Rg8 Rg213 Jumper Cable for Telecommunication
Jiangsu Elesun Cable Co., Ltd.- Application：Antenna Cable
- Material of Inner Conductor：Bare Copper
Base Info
- Model NO.：RG213 Cable assembly
- Structure of Inner Conductor：7,0.75mm
- Material of Insulation：Solid PE
- Diameter of Insulation：7.25mm
- Material of Braiding(Double Shielding)：Bare Copper
- Structure of Braiding(Double Shielding)：144*0.15mm
- Material of Jacket：PVC
- Diameter of Jacket：10.20mm
- Working Temp：-40ºC,80ºC
- Impedance：50Ω±2
- Voltage：1500V
- Weight：156kg,Km
- Transport Package：100m,Roll,CTN
- Specification：34*33*19cm
- Trademark：ELESUN
- Origin：China
- HS Code：8544200000
- Production Capacity：2000PCS,Day
- Package size per unit product：38.00cm * 38.00cm * 30.00cm
- Gross weight per unit product：16.000kg
Description
RG213/U coaxial cable specificationsMaterial of Inner Conductor Bare Copper Structure of Inner Conductor 7/0.75mm Material of Insulation Solid PE Diameter of Insulation 7.25mm Material of Braiding(Double Shielding) Bare Copper Structure of Braiding(Double Shielding) 144*0.15mm Material of Jacket PVC Diameter of Jacket 10.20mm Working temp -40ºC/80ºC Impedance 50Ω±2 Voltage 1500V Weight 156KG/KM
2.Electrical Specifications
3.Application
The RG 213 coax cable is a low-loss coated cable that is noncontaminating. Coax Cables transmit radio signals, video signals, measurement signals and data signals and are often used in home entertainment systems. The RG 213 is generally considered the superior coax cable because it is low-loss and consists of seven braided strands of bare copper.
(1) CATV-community antenna television.
(2) CCTV-closed-circuit television.
(3) DBS-direct broadcasting satellite.
4. Packing
1) Packing Lengths: 100/roll, 200 m/roll, 300m/roll. 305m/roll
2) Inner Packing: Wooden reel, plastic reel, and paper reel
3) Outer Packing: Carton box, pull out box, pallet available
4) Other packing available according to clients' request
2.Electrical Specifications
| Characteristic Impedance(Ohm) | 75 |
| Nominal Velocity of Propagation (%) | 85 |
| Nominal Capacitance(pF/m) | 50 |
| Sparker Test(VAC) | 4000 |
| SRL(dB, min) | 20 |
3.Application
The RG 213 coax cable is a low-loss coated cable that is noncontaminating. Coax Cables transmit radio signals, video signals, measurement signals and data signals and are often used in home entertainment systems. The RG 213 is generally considered the superior coax cable because it is low-loss and consists of seven braided strands of bare copper.
(1) CATV-community antenna television.
(2) CCTV-closed-circuit television.
(3) DBS-direct broadcasting satellite.
4. Packing
1) Packing Lengths: 100/roll, 200 m/roll, 300m/roll. 305m/roll
2) Inner Packing: Wooden reel, plastic reel, and paper reel
3) Outer Packing: Carton box, pull out box, pallet available
4) Other packing available according to clients' request
