LAN Cable Cat5e UTP Ethernet Cable Communication Cable
GENERAL CLAD CO., LTD.- Application：Local Communication Cable, Coaxial Cable, LAN Cable
- Conductor Material：Copper
- Cover Material：PVC
- Type：Cat 5
- Material Shape：Round Wire
- Conductor Type：Solid
Base Info
- Model NO.：CAT5E
- Wire Core Material：Bare Copper Wire
- Certification：CE, ISO, RoHS
- Color：Grey, Blue, Black, Yellow, Red etc
- Transport Package：Carton Box
- Specification：305m,roll
- Trademark：General Clad
- Origin：China
- Production Capacity：10000 Boxes, Month
Description

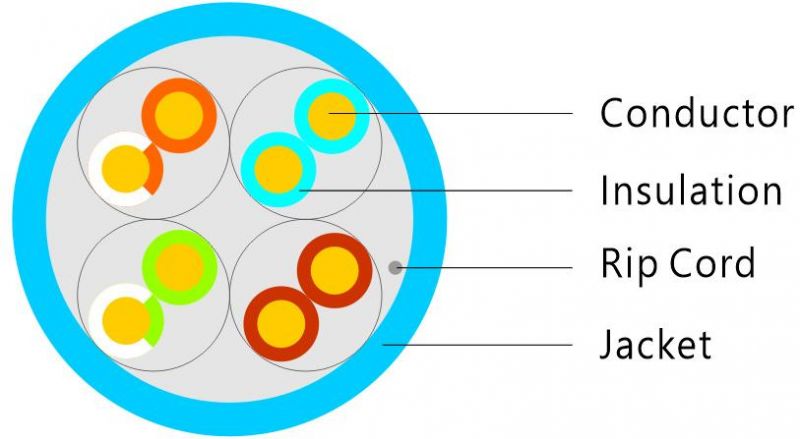

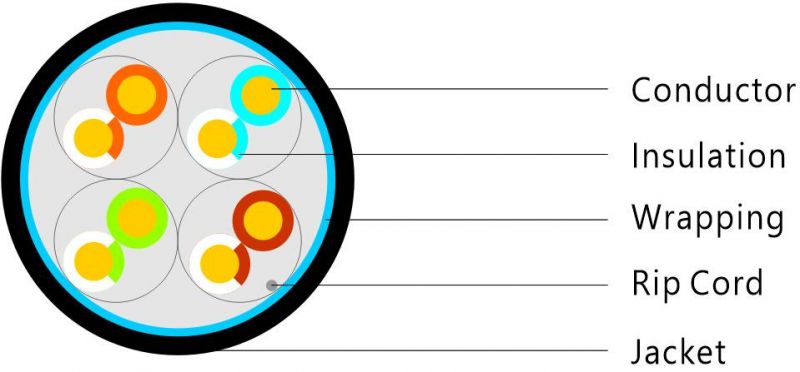

Standard UL444, TIA/EIA568, ISO/IEC11801
24 awg wire gauge
A single bare copper conductor
Insulating high density polyethylene
Fill as needed
Color code belt as needed
Core color code as required
Line of 25-100
Sheath PVC/LLDPE/LSZH(as required)
Tear the rope as needed
1.0~ 350.0mhz delay (ns/100m) ≤45
At 20ºC, the maximum dc resistance (ohms/km) of the conductor is less than or equal to 93.8
Conductor resistance unbalance (%) ≤1.0
Line-to-ground capacitance unbalance (PF/100m) ≤330
100 Base - TX
100 VG - AnyLAN
155 Mbps ATM
622 Mbps ATM
PRODUCT USAGE

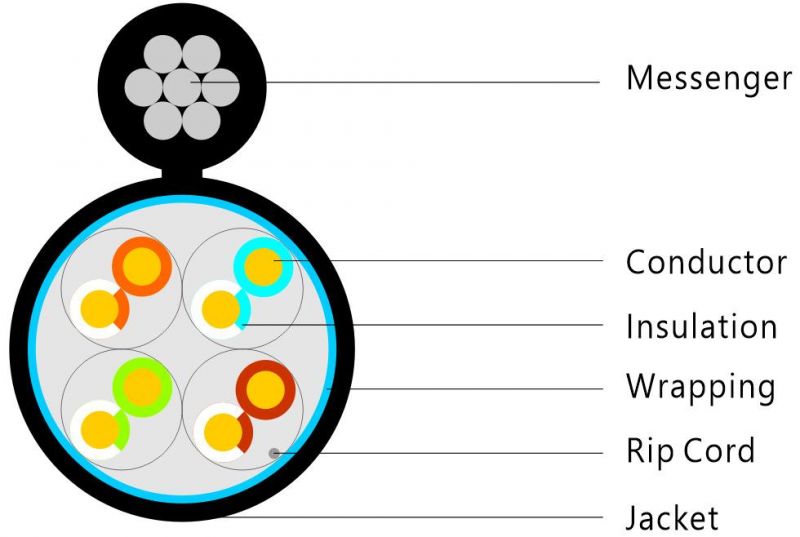

The standard super five types of network structure, double sheath, suitable for outdoor wiring USES (buried/overhead/walk in cable trench, etc.), applicable to gigabit network transmission and the application of the following. Compact structure, easy to install and use. Connection, more suitable for outdoor video monitoring (up to 1500 meters) long distance transmission, two ends twisted pair video transmission, strong anti-jamming ability, make the cost of monitoring and control system is better than that of coaxial video system. Product is sheathed with black PE material, waterproof and hardy and excellent weather resistance and other characteristics, especially suitable for the north and the colder climate, sheath protection performance is good, not cracking and hardening.
Package
