305m/1000FT Cable Network CAT6 Cable 23AWG CAT6 Network Cable
Shenzhen Angnet Technology Co., Ltd.- Application：Local Communication Cable, LAN Cable
- Conductor Material：BC,CCS,CCA,TC,CU,CCAG
- Cover Material：PVC,PE
- Type：Cat5e,CAT6
- Material Shape：Round Wire
- Conductor Type：Stranded
Base Info
- Model NO.：Cat5e,Cat6
- Wire Core Material：Bc,CCA
- Certification：CE, ISO, RoHS
- Brand：Angnet,OEM
- Conductor Diameter：23AWG
- Insulation：HD-PE
- Length：1000FT,305meter
- Color：Customized
- Conductor：Copper ,CCA
- Shielding：Al Foil
- Jacket Material：LSZH or RoHS PVC
- Cable Type：Cat5e , CAT6
- Packing：305m Easy Pull Box
- Jacket Color：Blue, White ,Black,Grey,OEM
- Number of Conductors：8
- Connector Type：Standard RJ45
- Transport Package：1 PCS,Bag
- Specification：23AWG(1*0.57mm)
- Trademark：ANGNET
- Origin：Shenzhen Guangdong China
- HS Code：8544492100
- Production Capacity：240000box,Month
Description
Basic Info.
Model NO. Cat5e/Cat6 Wire Core Material Bc/CCA Certification CE, ISO, RoHS Brand Angnet/OEM Conductor Diameter 23AWG Insulation HD-PE Length 1000FT/305meter Color Customized Conductor Copper /CCA Shielding Al Foil Jacket Material LSZH or RoHS PVC Cable Type Cat5e / CAT6 Packing 305m Easy Pull Box Jacket Color Blue/ White /Black/Grey/OEM Number of Conductors 8 Connector Type Standard RJ45 Transport Package 1 PCS/Bag Specification 23AWG(1*0.57mm) Trademark ANGNET Origin Shenzhen Guangdong China HS Code 8544492100 Production Capacity 240000box/MonthProduct Description
305m/1000FT Cable Network CAT6 Cable 23AWG CAT6 Network Cable

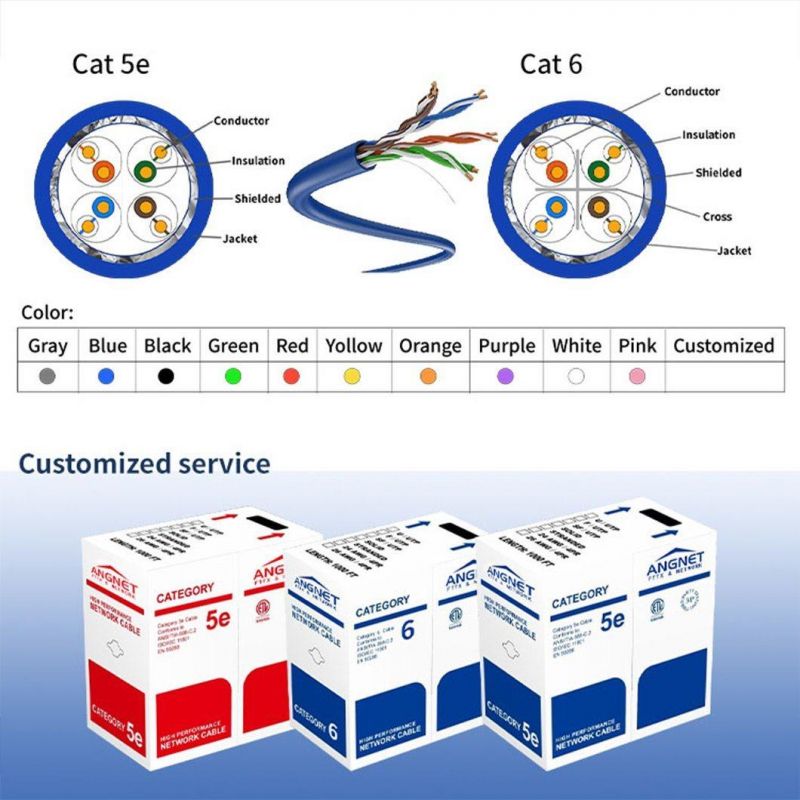

Product Show/ Network Cable
Application/ Network Cable
1. High-Performance Data Communications Cable
2. Suitable for 250MHz High-Speed Data Applications
3. Designed for Indoor Installations.
4. Flame Retardant Plenum Jacket
5. Excellent Attenuation and Crosstalk Characteristics
6. Exceeds EIA/TIA 568 C.2-1, CSA and ISO/IEC 11801 specifications
7. ETL Listed, RoHS Compliant
Specfication/ Network Cable
| Model | Cat6 cable |
| Conductor Size | Solid: 23AWG or Customizable. |
| Conductor Material | Bare Copper , CCA, CCS |
| Nuber Of Conductor | 4 pair (8 core ) |
| Flammability Grade: | CM |
| Insulation Material | HDPE |
| Insulation Thickness | 0.55mm |
| Jacket Material | ROHS PVC, LSZH or Customizable |
| Jacket Thickness | 0.92-0.95mm |
| DC Resistance(Max.) | 9.5Ω/100m |
| DC Resistance Imbalance | 2.50% |
| Working Capacitance(Max.) | 5.4nF/100m |
| Insulation Resistance | 10000MΩ.km |
| Transmission Velocity | 65% |
| Operating Temperation | -20 °C - +75 °C |
| Jacket Color | As client's request. |
Fatures/ Network Cable
* High-Performance Data Communications Cable
* Suitable for 250MHz High Speed Data Applications
* Designed for Indoor Installations.
* Flame Retardant Plenum Jacket
* 4 Pair Easily Identified Color-Striped Pairs
* Excellent Attenuation and Crosstalk Characteristics

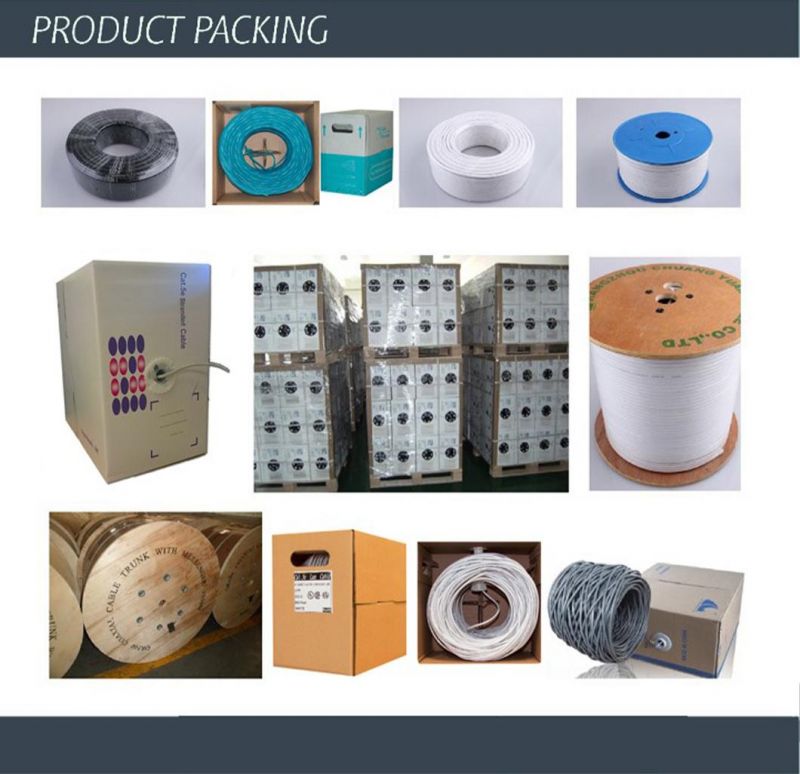

Packaging & Shipping/ Network Cable
Production Flow/ Network Cable
FAQ/ Network Cable
Q1: Are your trading company or manufacture ?
A: We are factory verified by SGS
Q2: Do you provide OEM service ?
A: Yes, we can print your logo or label on the products or on the box.
Q3: Can you provide free samples ?
A: Some of low value samples can be free for you, but you need pay for the shipping cost.
Q4: How can you guarentee the quality ?
A: Build on our perfect quality management system, all of our products were 100% tested before the shipment.
Q5: What is your delivery time ?
A: Generally, sample: 3~5 working days. formal order: 7-10 working days.
Q6: What's your payment terms ?
A: We accept T/T, Western Union, Money Gram, Paypal.
For samples: 100% payment. Formal order: 30% as deposit, 70% balance payment before shipment.
