GYFXTY-Fg Glass Yarn Armored Uni-Loose Tube All Dielectric Optical Fiber Cable (Span 80meter)
Ningbo Haishu Efon Communication Equipment Limited- Application：Communication
- Type：Single-mode Fiber
- Connection Structure：Other
- Material Shape：Round Wire
- Allowed Lateral Pressure：100(N,100mm)<1000(N,100mm)
- Allowed Tensile Strength：1000N<10000N
Base Info
- Model NO.：GYFXTY-FG
- Core：2-24
- Certification：RoHS, UL, CE, ISO9001, VDE, CCC
- Brand：Efon
- Sheath Material：PE,LSZH Sheath,Flame Retardant PE,Anti-Rodent PE
- Cable Structure：Uni-Loose Tube ADSS
- Fiber Count：2-24 Cores
- Installation Tensile：1800n
- Bend Radius (Under Installation)：20 X External Diameter of Cable
- Strength Member：Two Parallel FRP and Fiber Reinforce Glass Yarn
- out Sheath：HDPE,LSZH Sheath,Flame Retardant Sheath,Anti-Roden
- Applications：Outdoor Aerial
- Operating Temperature：-40°c~+70°c
- Certificate：ISO9001 TCL RoHS
- Material of Jacket：Black Polyethylene (PE)
- Transport Package：PP Bag
- Specification：CE
- Trademark：OEM
- Origin：China
- HS Code：85447000
- Production Capacity：1000000PCS,Month
Description
Fiber Type
G.652
G.655
50/125^m
62.5/125^m
Attenuation
(+20X)
850 nm
<3.0 dB/km
<3.3 dB/km
1300 nm
<1.0 dB/km
<1.0 dB/km
1310 nm
<0.36 dB/km
<0.40 dB/km
1550 nm
<0.22 dB/km
<0.23 dB/km
Bandwidth
850 nm
>500 MHz-km
>200 Mhz-km
1300 nm
>500 MHz-km
>500 Mhz-km
Numerical Aperture
0.200±0.015 NA
0.275±0.015 NA
Cable Cut-off Wavelength λcc
<1260 nm
<1450 nm
Nominal Diameter (mm) Nominal Weight (kg/km) Allowable Tensile Load (N) Allowable Crush Resistance Aerial Install span with 1%sag Short Term Long Term Short Term NESC Medium NESC Heavy 2~12 4.5*8.0 39 1800 750 2000 80meters 50meters 14~24 4.9*8.4 45 1800 750 2000 60meters 40meters Nominal Diameter (mm) Nominal Weight (kg/km) Allowable Tensile Load (N) Allowable Crush Resistance Aerial Install span with 1%sag Short Term Long Term Short Term NESC Medium NESC Heavy 2~12 6.5 35 1000 400 1000 50meters 30meters 14~24 7.0 40 1200 500 1000 40meters 20meters Note: Larger spans can be achieved if necessary with installation sags larger than 1% of span. This datasheet can only be a reference, but not a supplement to the contract. Please contact our We produce and tesr cable comply with following standard Mechanical Performance Max Tension Performance IEC 60794-1-2-E Max. Operation Tension IEC 60794-1-2-E1 Crush Test IEC 6079 -1-2-E3 Impact Test IEC 60794-1-2-E4 Repeated Bending IEC 60794-1-2-E6 Torsion Test IEC 60794-1-2-E7 Cable bend IEC 60794-1-2-E11A Attenuation Coefficient ITU-T G.652 Structural Test IEC-60793-1-20 Environmental Performance Temperature Cycling IEC 60794-1-2-F1 Water Penetration IEC 60794-1-2-F5B Filing Compound Flow IEC 60794-1-E14 You May Like Payment For large orders, T/T , L/C, and E-credit lines are all offered. For small orders, credit-cards are accepted. Shipping & Delivery We will send the products within 10 days. We ship small batched by air, or large orders by container. Return and Warranty: All products have been tested before ship out All products have 5 years warranty. If there is no man-made problem ,we will replace or repair for you freely. We own the best after-sale service. If any problems happen ,our team will do our best to solve for customers.
(N/100mm)Long Term NESC Light 800 100meters 800 80meters
(N/100mm)Long Term NESC Light 300 80meters 300 70meters
sales people for more detailed information.
Hybrid designs (containing single mode and multi mode fiber) and composite designs (containing
copper conductors) are also available.

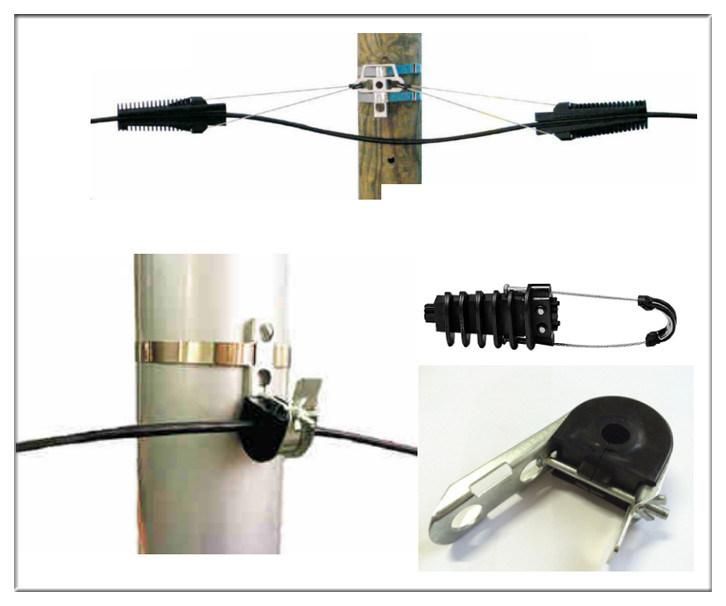

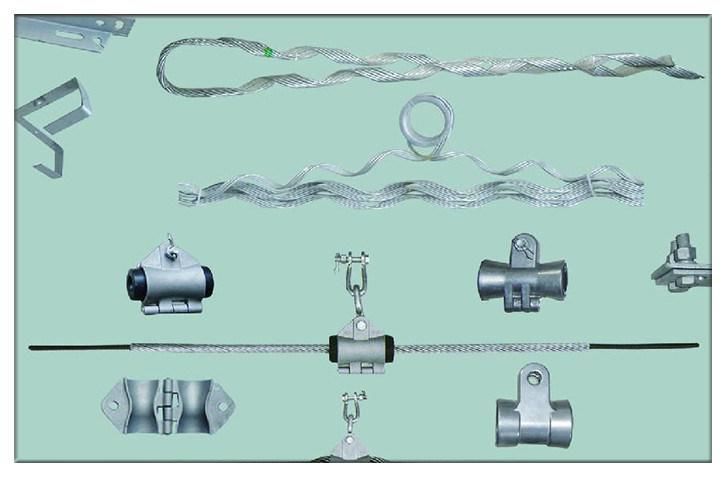

You May Need : Cable Fitting for ADSS drop cable
