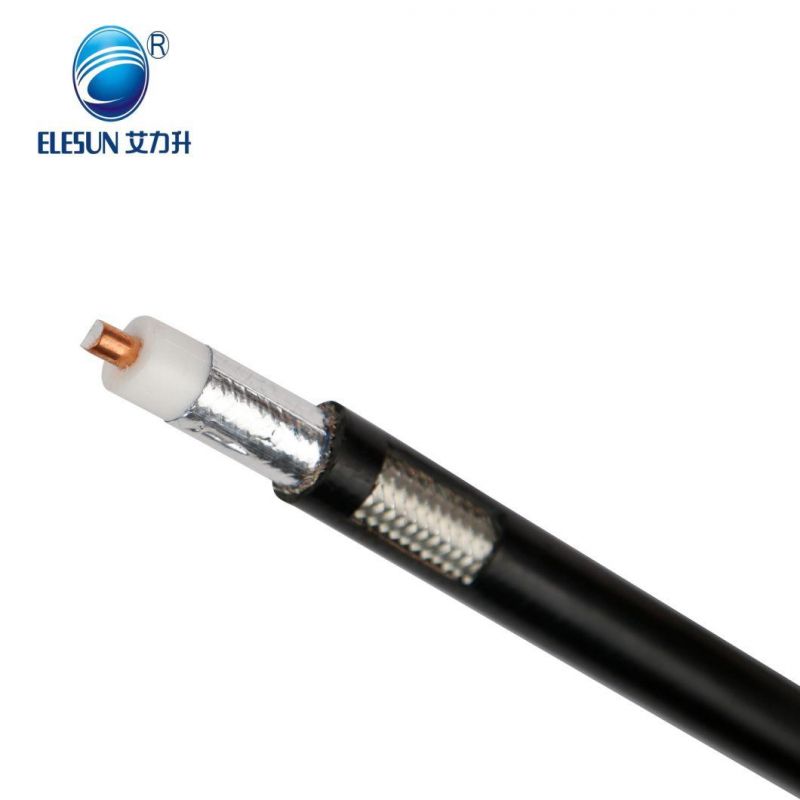

50ohm Low Loss 8d-Fb Alsr400 Coax Cable
Jiangsu Elesun Cable Co., Ltd.- Application:Local Communication Cable, Coaxial Cable, Long Distance Symmetric Cable, RF Cable, Submarine Cable, Antenna Cable
- Conductor Material:BC,CCS,CCA,TC,CU,CCAG
- Cover Material:PVC
- Type:Alsr400
- Material Shape:Round Wire
- Conductor Type:Solid
Base Info
- Model NO.:ALSR400
- Wire Core Material:Bare Copper Wire
- Certification:CE, ISO, RoHS, CCC, UL
- Model:Alsr400
- Brand:Elesun
- Material of Inner Conductor:Bc (Bare Copper)
- Structure of Inner Conductor:1,2.74mm
- Material of Insulation:Fpe(Foam PE)
- Diameter of Insulation:7.24mm
- 1st Shielding:Aluminum Tape
- Material of Braiding(2ND Shielding):Tc (Tinned Copper)
- Structure of Braiding(2ND Shielding):144*0.15mm
- Material of Jacket:PE, PVC, LSZH, Fr-PVC, Fr-LSZH
- Diameter of Jacket:10.29mm
- Working Temp:-40ºC,80ºC
- Impedance:50Ω±2
- Voltage:2500V
- Swr(0-2500MHz):≤1.2
- Min.Bending Radius:51.5mm
- Transport Package:150m,Roll,CTN
- Specification:38*38*30
- Trademark:ELESUN
- Origin:China
- HS Code:8544200000
- Production Capacity:10000m,Day
Description
Description:
. Conductor:BC(Bare Copper)
. Insulation Material: Foam PE
.1st Shielding: Aluminum Tape
.2nd Shielding: Tinned Copper Braiding
. Impedance:50Ω±2
.Jacket: PE, PVC, LSZH
. Color: Black,White
Typical Application:
1A.LSR400 is the same specification as LMR400, generally designed for jumper assemblies in wireless communications systems
2.ALSR400 can replace for RG8 air-dielectric type cable.
3.ALSR400 has PE jacket, PVC jacket, LSZH jacket Flame-retardant LSZH jacket, Flame-retardant PVC jacket for different environment
Best Feature:
1. ALSR400/ LMR 400 cable features a flexible outer conductor, allowing the tightest bend radius of any cable of similar size and performance. ALSR400(LMR400) low loss coaxial cable specificationsMaterial of Inner Conductor BC (Bare Copper) Structure of Inner Conductor 1/2.74mm Material of Insulation FPE(Foam PE) Diameter of Insulation 7.24mm 1st Shielding Aluminum Tape Material of Braiding(2nd Shielding) TC (Tinned Copper) Structure of Braiding(2nd Shielding) 144*0.15mm Material of Jacket PE, PVC, LSZH,FR-PVC,FR-LSZH Diameter of Jacket 10.29mm Working temp -40ºC/80ºC Impedance 50Ω±2 Voltage 2500V SWR(0-2500MHz) ≤1.2 Min.Bending Radius 51.5mm
. Conductor:BC(Bare Copper)
. Insulation Material: Foam PE
.1st Shielding: Aluminum Tape
.2nd Shielding: Tinned Copper Braiding
. Impedance:50Ω±2
.Jacket: PE, PVC, LSZH
. Color: Black,White
Typical Application:
1A.LSR400 is the same specification as LMR400, generally designed for jumper assemblies in wireless communications systems
2.ALSR400 can replace for RG8 air-dielectric type cable.
3.ALSR400 has PE jacket, PVC jacket, LSZH jacket Flame-retardant LSZH jacket, Flame-retardant PVC jacket for different environment
Best Feature:
1. ALSR400/ LMR 400 cable features a flexible outer conductor, allowing the tightest bend radius of any cable of similar size and performance. ALSR400(LMR400) low loss coaxial cable specifications
