FTP Cat5e Outdoor UV Rated Cable with Messenger

Hangzhou Risun Cable Co., Ltd.
  • Application：Local Communication Cable, LAN Cable
  • Conductor Material：Copper
  • Cover Material：PVC
  • Type：Cat 5
  • Material Shape：Round Wire
  • Conductor Type：Solid

Base Info

  • Model NO.：FTP CAT5E
  • Wire Core Material：Bare Copper Wire
  • Certification：CE, ISO, RoHS, CPR,ETL,SGS
  • Model：FTP Cat5e
  • Brand：Risun or OEM
  • Color：as Request
  • Insulation：HDPE
  • Shield：Al,Pet Foil
  • UV, Jelly, Fr：Available
  • Messenger：1.16+,-0.1mm Steel
  • Transport Package：305m,Pull Box, 2boxes,CTN
  • Specification：0.51cu, 1.00HDPE, 6.2PVC, LSZH, PE
  • Trademark：Risun or OEM
  • Origin：Hangzhou, China(Mainland)
  • HS Code：8544491100
  • Production Capacity：20000 Boxes , Month

Description

Company information:FTP Cat5e Outdoor UV Rated Cable with Messenger

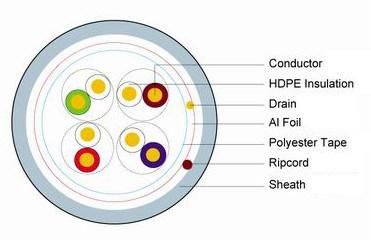

Configuration:
4 Pairs LAN Cable with Messenger

1. Conductor: 0.51±0.01mm(24AWG) Bare copper

2. Insulation: 0.97±0.03mm HDPE

3. Cores/Pairs: 8/4
4. Shield: Al/Pet Foil
5. Drain: 0.4mm TC

4. Sheath: 6.2±0.3mm PVC (PE, LSZH)

Options: Jelly Compound, Jacket: UV, FR, RoHS complied.
FTP Cat5e Outdoor UV Rated Cable with Messenger

Mechanical Properties:



ElongationMin. 300%Temperature Range-20 up to +75° CTensile StrengthMin 1.68kg/mm²



Electrical Properties:



Conductor ResistanceMax. 9.38 ohm/100mResistance UnbalanceMax. 2%Insulation Resistance150 ohm/KMMutual CapacitanceMax. 5600pF/100mCapacitance UnbalanceMax. 330pF/100mImpedance100+/-15 ohmSpark Test2000VVelocity of Propagation67%



Technical Performance:



          Attenuation         RL    Next        PS Next       (Mhz)          (dB/100M)        (dB)     (dB)      (dB/100m)       1MHz               2.0         20    65.3          63.5       4MHz               4.1         23    56.3          54.2       8MHz               5.8        24.5    52.4          50.5      10MHz               6.6         25    51.3          49.2      16MHz               8.2         25    49.3          47.4      20MHz               9.3         25    48.8          46.9      25MHz              10.4         24    45.3          43.4   31.25MHz              11.7         23    43.0          41.8     62.5MHz              17.0         21    39.2          37.2     100MHz              22.0         20    36.3          34.4Packing:
24AWG Bare Copper Cat5e Outdoor with Messenger

RISUN has it's own style of carton artwork. A carton factory support us to supply the most suitable carton for you. Your brand and artwork is also available.

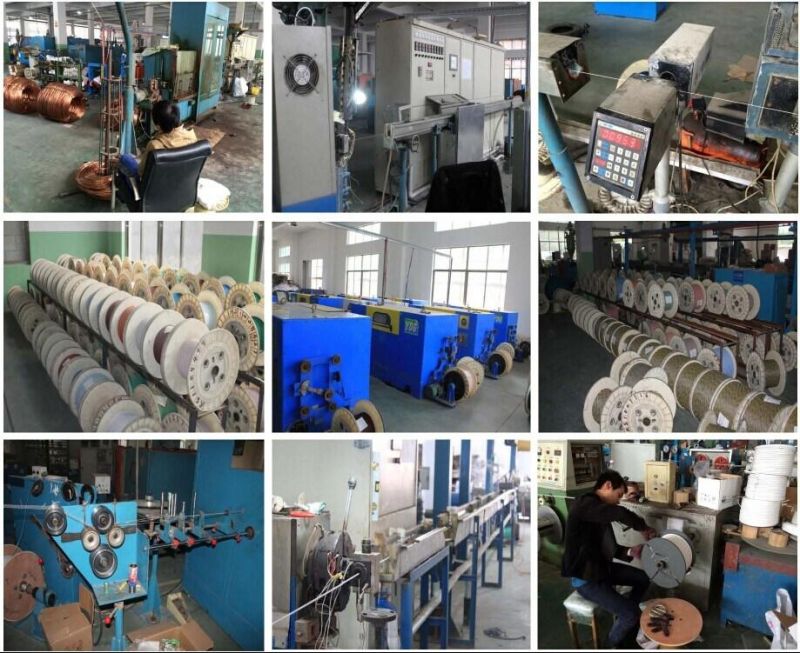

Production line:



4 Pairs LAN Cable with Messenger

RISUN has two complete production line. 10 thousands box of UTP Cat5e cable per month.


                                                        WELCOME TO RISUN!!!



Our Tenet: If we can not be the best, we be the most suitable.
