• Model NO.：LC
• Core：Single Core, Double Core,Multicore
• Certification：RoHS, CE, ISO9001
• Brand：OEM
• Sheath Material：LSZH
• Cable Diameter Szie：0.9mm,1.6mm,1.8mm,2.0mm,2.4mm,2.8mm,3.0mm
• Cable Jacket Color：Blue,Orange,Yellow,Aqua, Magenta,Black, Gray,Pink
• Cable Jacket Material：LSZH,PVC, Ofnr, Ofnp, PE, Rised
• Connector Housing Color：Blue,Orange,Yellow,Aqua, Magenta,Black, Gray,Pink
• Cable Length：1m, 2m, or Customization
• Label：Sticker, Paper
• Boot Type：LC Uniboot, Slotted Boot, Smooth Boot, Rubber Boo
• Transport Package：Zipper Bag, Carton Box
• Specification：SGS; RoHs
• Trademark：koc
• Origin：Made in Shenzhen
• HS Code：85447000
• Production Capacity：500000 PCS,Month

 Single modeMultimodeInsertion LossTypical≤0.2dB, Maximum≤0.3dB≤0.25dBReturn Loss≥50 dB (PC)
≥60 dB (APC)≥30 dBRepeatability≤0.1Durability≤0.2 dB typical change, 1000 matingsInterchangeability≤0.2dBTensile strength>70NOperating Temperature-40 to + 85°C

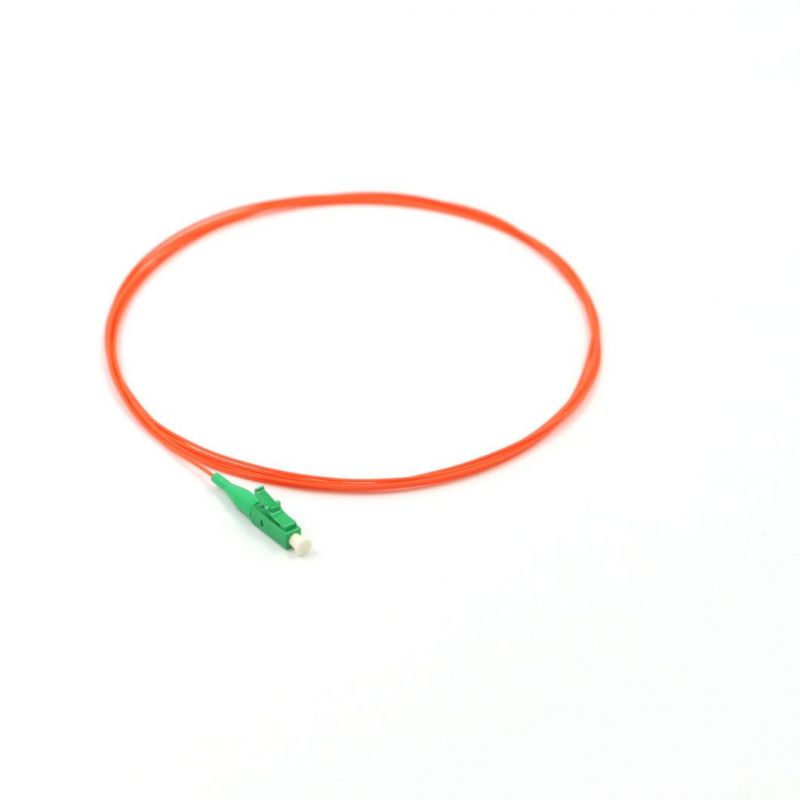

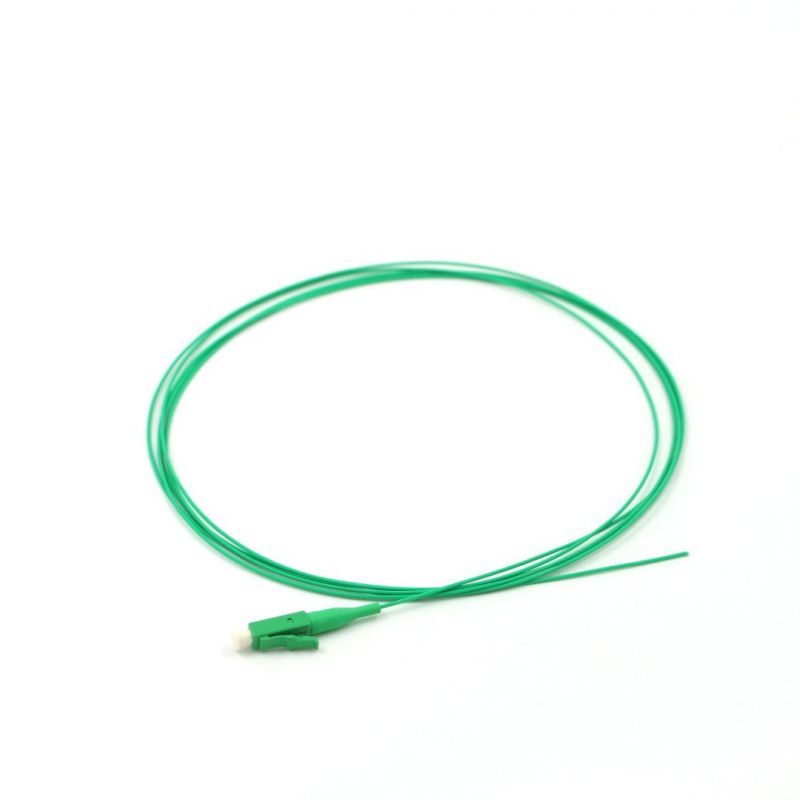

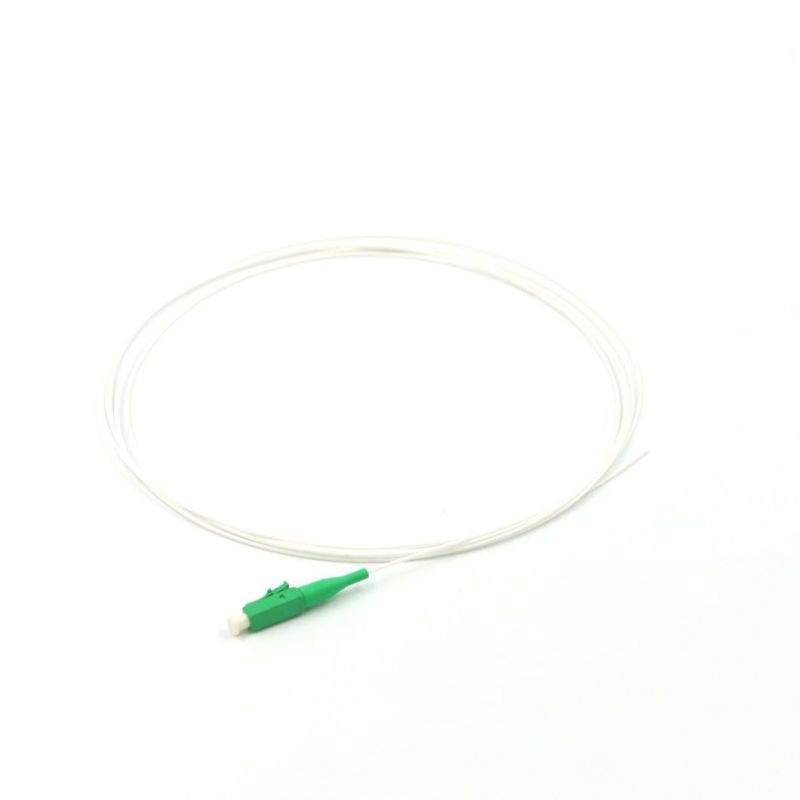

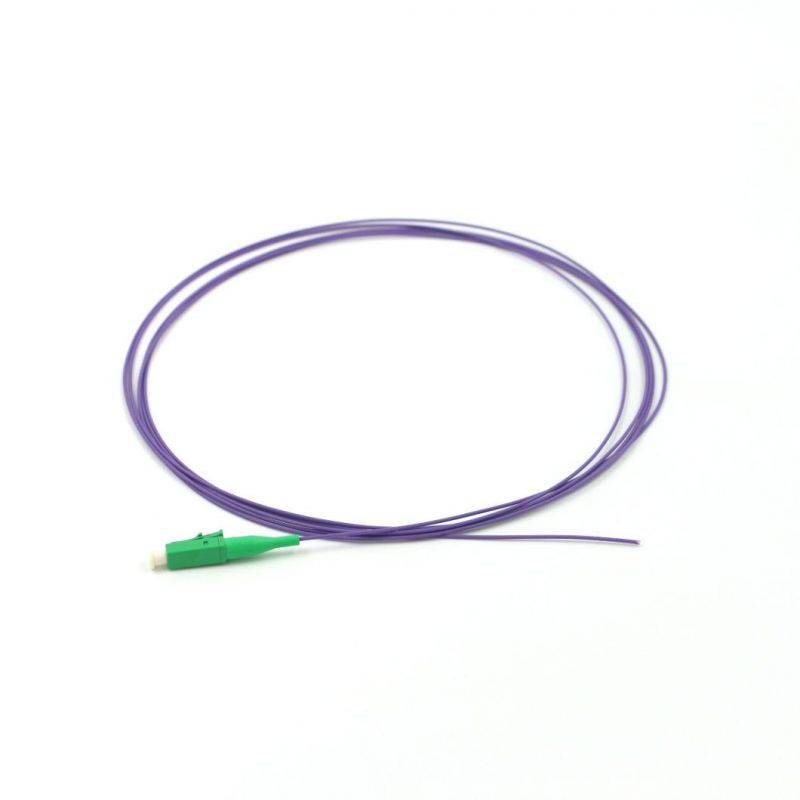

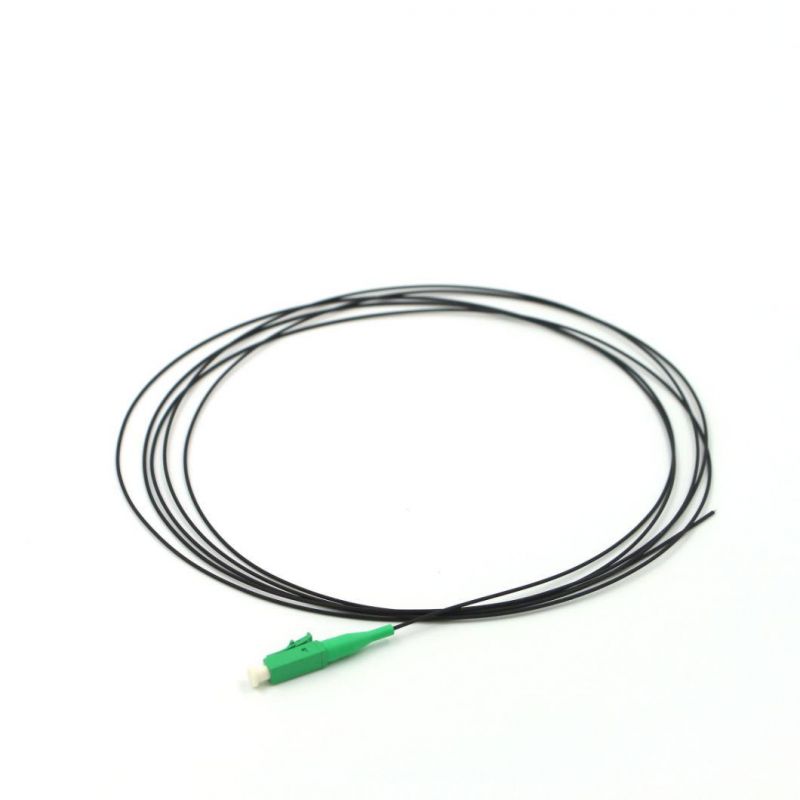

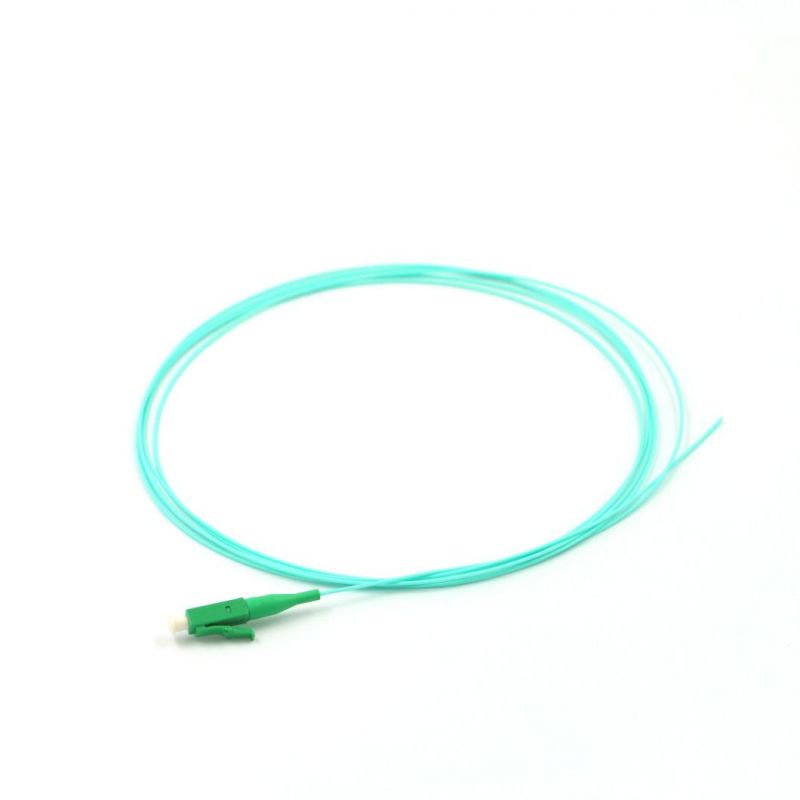

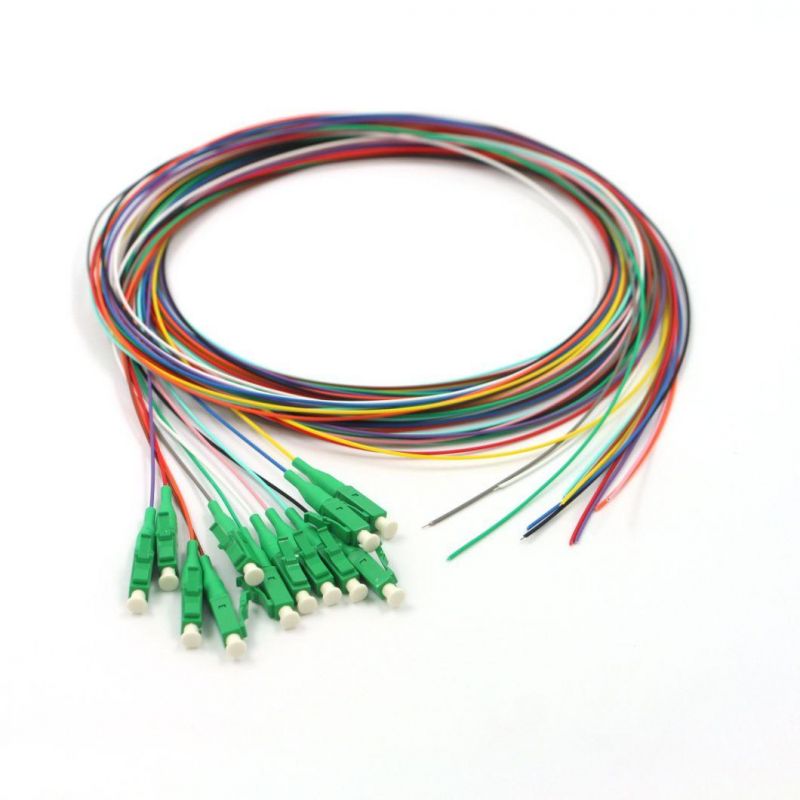

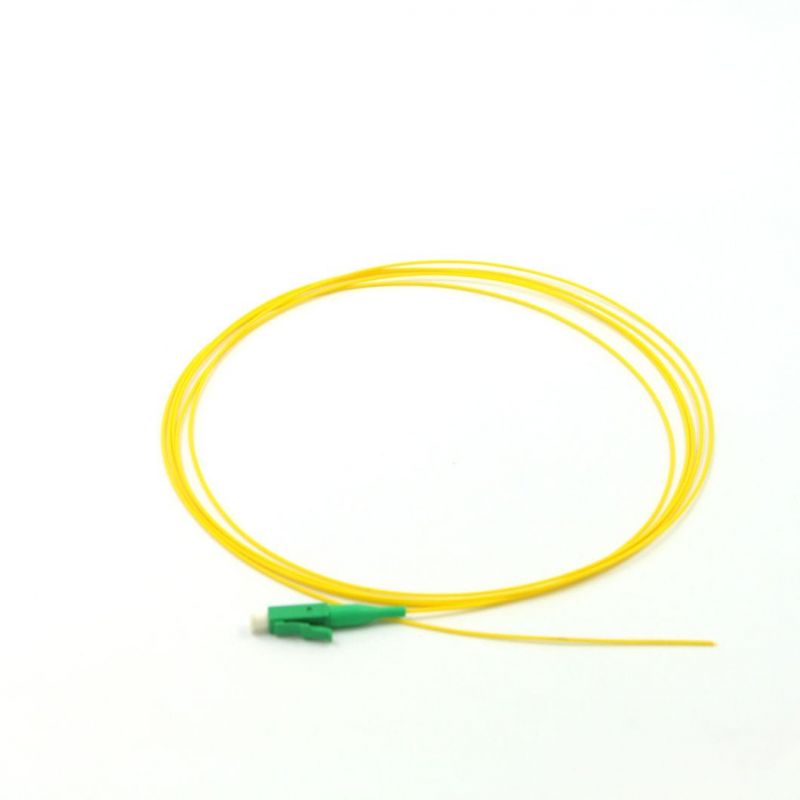

ORDERING OPTIONSConnector ColorBoot (cable) SizeBoot ColorFiber TypeCable numberApplicationLengthBeige0.9mmBeige9/125μm (SM)SimplexPCCustomizedBlue2.0mmBlack50/125μm(MM)DuplexAPC Green3.0mmBlue62.5/125μm(MM)Fan-out (4f)    Green Fan-out (6f)    Gray Fan-out (8f)    Red Fan-out (12f)    White Fan-out (24f)     Note: The price range is for Pigtail  LC/APC  OS2  SIMPLEX 0.9mm  1 meters.
