OEM Professional Fiber Optic Splice Closure with Good Service
Shenzhen Opelink Technology Co., Ltd.- Application：Communication, Medicine
- Type：Single-mode Fiber
- Connection Structure：SC
- Material Shape：Round Wire
- Allowed Lateral Pressure：100(N,100mm)<1000(N,100mm)
- Allowed Tensile Strength：100N<1000N
Base Info
- Model NO.：Fiber optic Splice Closure
- Core：Multicore
- Certification：RoHS, UL, ISO9001
- Brand：OEM
- Sheath Material：PC
- Pressure Testing Valve：1 Set
- Earthing Deriving Device：1 Set
- Seal Fitting：1 Piece
- Fosc Cover：1 Piece
- Fiber Optic Splice Tray：Max 4 Trays
- Weight：3000g to 3600g
- Plastic Hoop：1 Set
- Base：1 Set
- Desiccant：1 Bag
- Earthing Wire：1 Piece
- Transport Package：Carton Box
- Specification：dome closure
- Trademark：Opelink
- Origin：China
- HS Code：85367000
Description
Basic Info.
Model NO. Fiber optic Splice Closure Core Multicore Certification RoHS, UL, ISO9001 Brand OEM Sheath Material PC Pressure Testing Valve 1 Set Earthing Deriving Device 1 Set Seal Fitting 1 Piece Fosc Cover 1 Piece Fiber Optic Splice Tray Max 4 Trays Weight 3000g to 3600g Plastic Hoop 1 Set Base 1 Set Desiccant 1 Bag Earthing Wire 1 Piece Transport Package Carton Box Specification dome closure Trademark Opelink Origin China HS Code 85367000Product Description

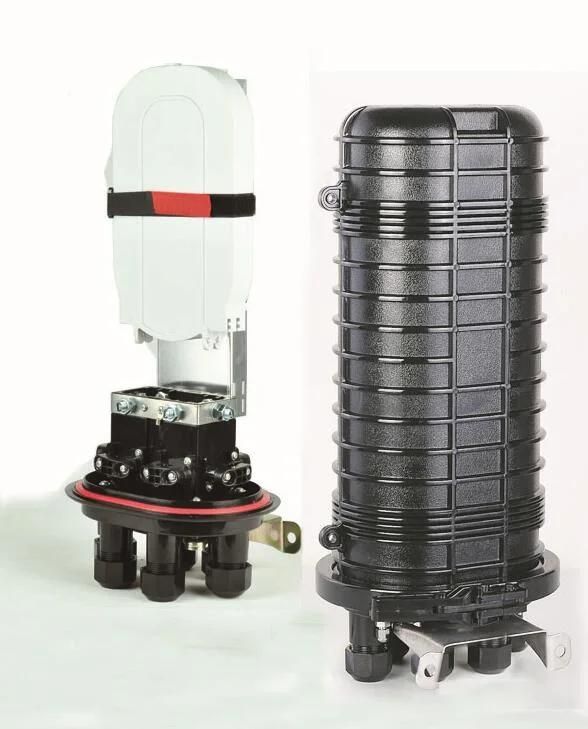

OEM Professional Fiber optic Splice Closure with Good Service
1. Scope of application
This Installation Manual suits for the Fiber Optic Splice Closure (Hereafter abbreviated as FOSC), as the guidance of proper installation.
The scope of application is: aerial, underground, pipeline, hand-holes. The ambient temperature ranges from -40 to 65ºC.
2. Basic structure and configuration
2.1 Dimension and capacity
| Outside dimension (Height x Diameter) | 540mm×205mm |
| Weight (excluding outside box) | 3000 g- 3600g |
| Number of inlet/out ports | 4 pieces in general |
| Diameter of fiber cable | Φ8mm~Φ36mm |
| Capacity of FOSC | Bunchy:24-96 (cores), Ribbon: up to 288 (cores) |

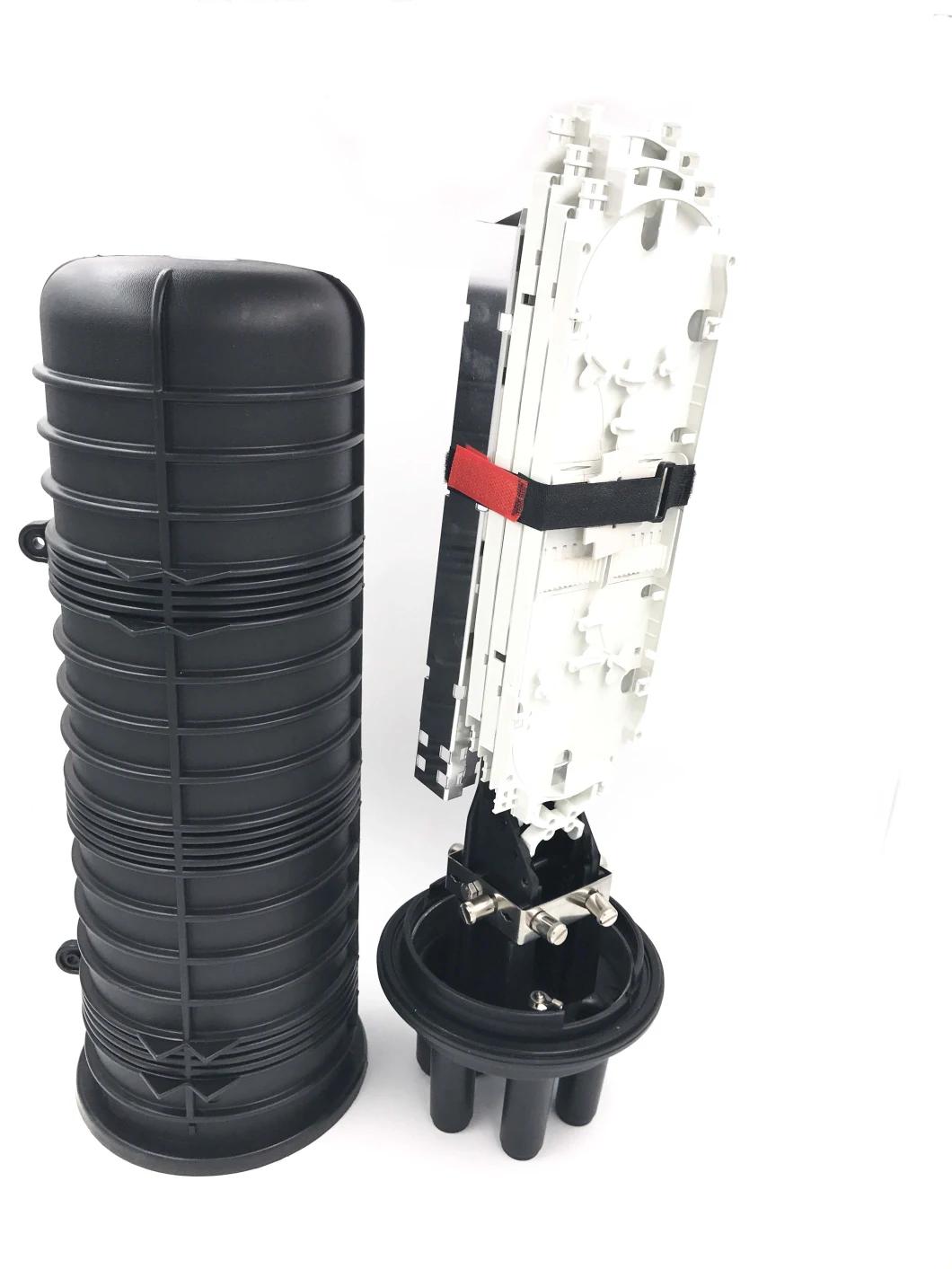

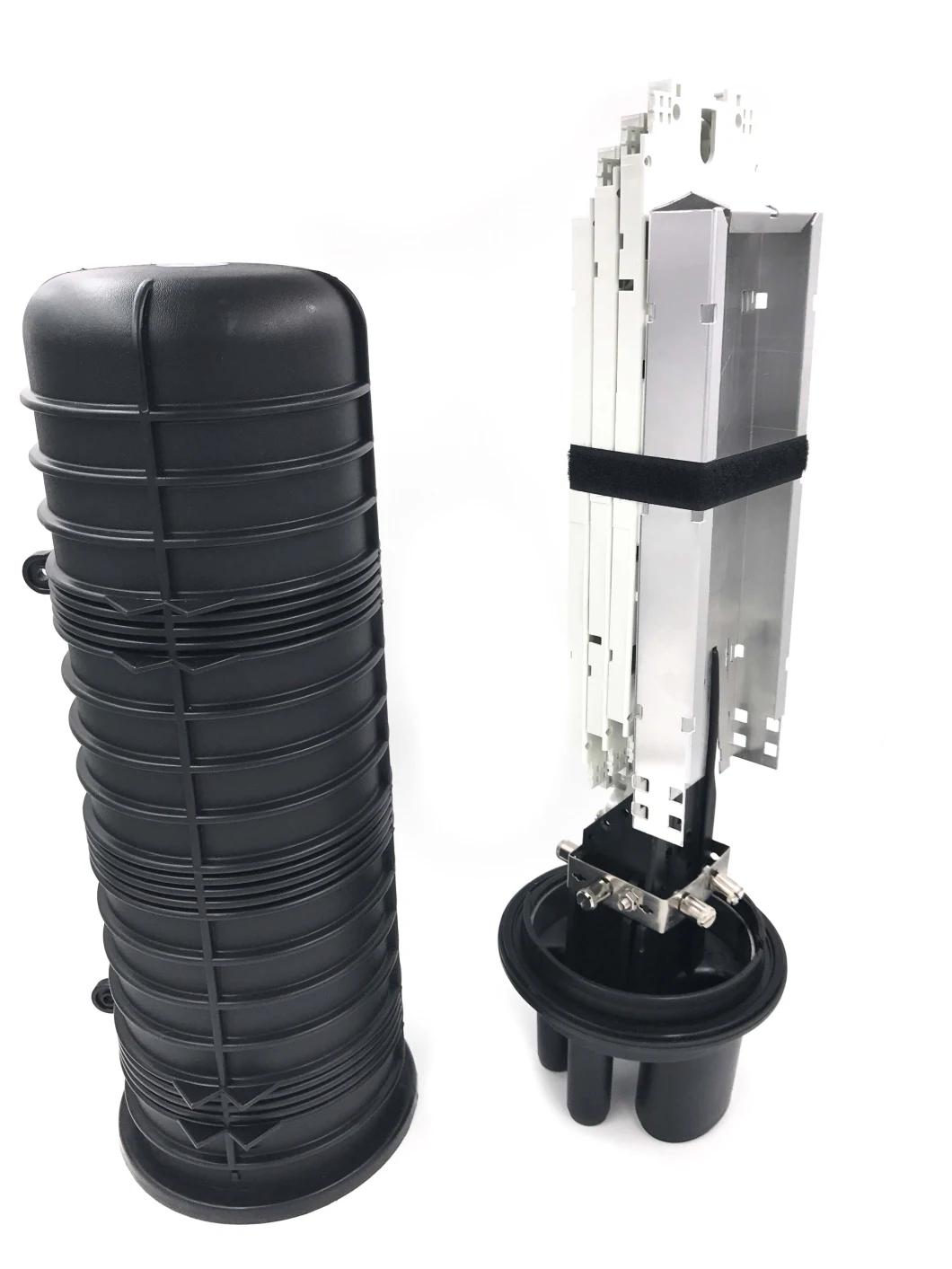

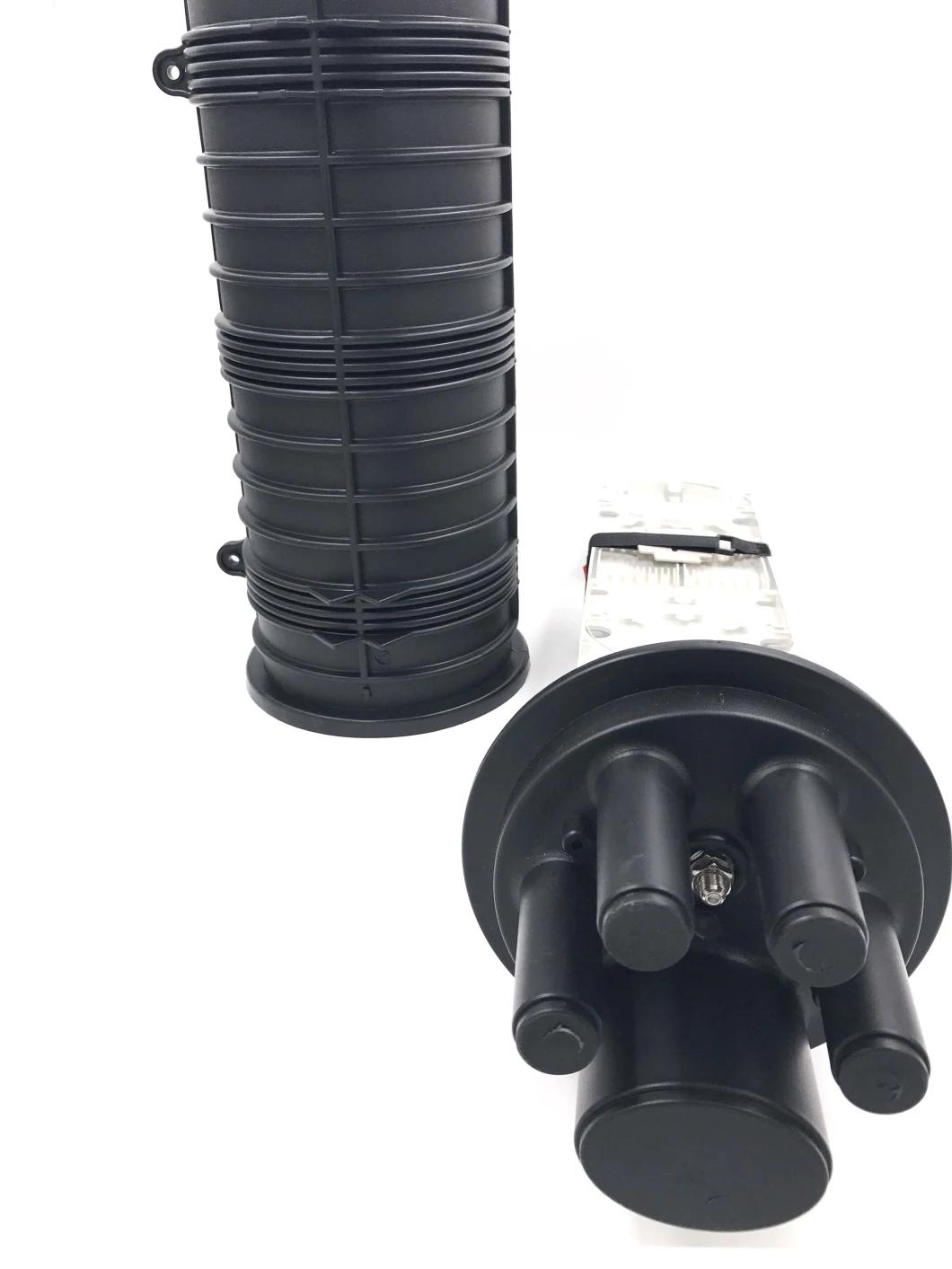

2.2 Main components
| No. | Name of components | Quantity | Usage | Remarks |
| 1 | FOSC cover | 1 piece | Protecting fiber cable splices in whole | Height x Diameter 450mm x 170mm |
| 2 | Fiber optic splice tray (FOST) | Max. 4 trays (bunchy) Max.: 4 trays (ribbon) | Fixing heat shrinkable protective sleeve and holding fibers | Suitable for: Bunchy: 24(cores) Ribbon: 12 (pieces) |
| 3 | Base | 1set | Fixing internal and external structure | |
| 4 | Plastic hoop | 1 set | Fixing between FOSC cover and base | |
| 5 | Seal fitting | 1 piece | Sealing between FOSC cover and base | |
| 6 | Pressure testing valve | 1 set | After inject air, it is used for pressure testing and sealing testing | Configuration as per requirement |
| 7 | Earthing deriving device | 1 set | Deriving metal parts of fiber cables in FOSC for earthing connection | Configuration as per requirement |
2.3 Main accessories and special tools
| No. | Name of accessories | Quantity | Usage | Remarks |
| 1 | Heat shrinkable protective sleeve | Protecting fiber splices | Configuration as per capacity | |
| 2 | Nylon tie | Fixing fiber with protective coat | Configuration as per capacity | |
| 3 | Heat shrinkable fixing sleeve (elliptical) | Fixing and sealing single fiber cable | Configuration as per requirement | |
| 4 | Heat shrinkable fixing sleeve (circular) | Fixing and sealing mass of fiber cable | Configuration as per requirement | |
| 5 | Branching clip | Branching fiber cables | Configuration as per requirement | |
| 6 | Earthing wire | 1 piece | Putting through between earthing devices | |
| 7 | Desiccant | 1 bag | Put into FOSC before sealing for desiccating air. | |
| 8 | Labeling paper | 1 piece | Labeling fibers | |
| 10 | Buffer tube | decided by customers | Hitched to fibers and fixed with FOST, managing buffer. | Configuration as per requirement |
| 11 | Aluminum foil paper | 1piece | To protect the bottom of closure and inlet/outlet tubes when heating heat shrinkable fixing sleeve with fire sprays |
