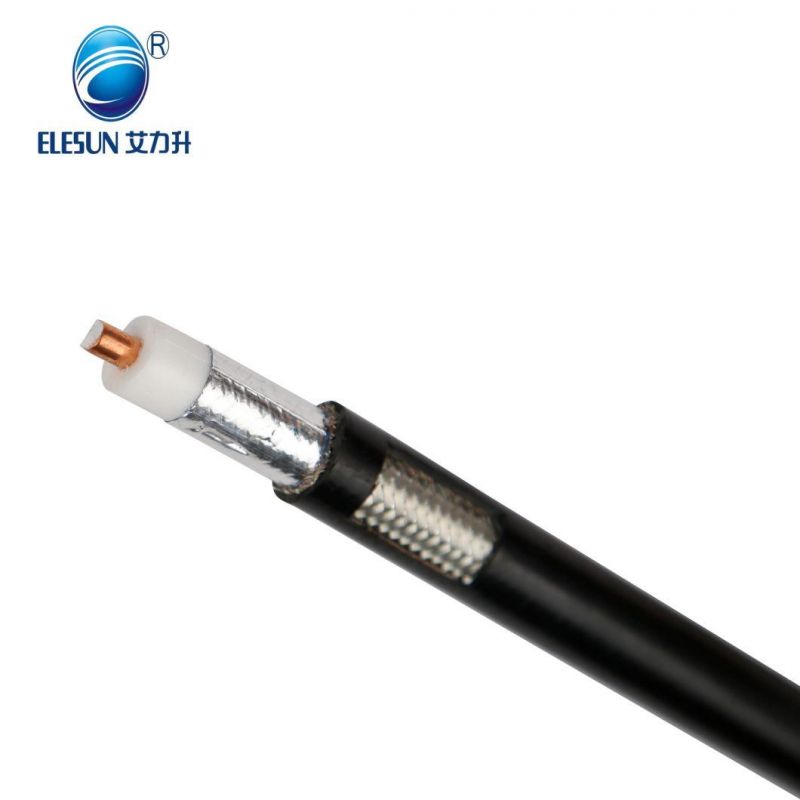

UL Approved Communication Cable LSR400 Coaxial Cable
Jiangsu Elesun Cable Co., Ltd.- Application：Local Communication Cable, Coaxial Cable, Long Distance Symmetric Cable, RF Cable, Submarine Cable, Antenna Cable
- Conductor Material：BC,CCS,CCA,TC,CU,CCAG
- Cover Material：PVC
- Type：Alsr400
- Material Shape：Round Wire
- Conductor Type：Solid
Base Info
- Model NO.：LSR400
- Wire Core Material：Bare Copper Wire
- Certification：CE, ISO, RoHS, CCC, UL
- Model：Alsr400
- Brand：Elesun
- Material of Inner Conductor：Bc (Bare Copper)
- Structure of Inner Conductor：1,2.74mm
- Material of Insulation：Fpe(Foam PE)
- Diameter of Insulation：7.24mm
- 1st Shielding：Aluminum Tape
- Material of Braiding(2ND Shielding)：Tc (Tinned Copper)
- Structure of Braiding(2ND Shielding)：144*0.15mm
- Material of Jacket：PE, PVC, LSZH, Fr-PVC, Fr-LSZH
- Diameter of Jacket：10.29mm
- Working Temp：-40ºC,80ºC
- Impedance：50Ω±2
- Voltage：2500V
- Swr(0-2500MHz)：≤1.2
- Min.Bending Radius：51.5mm
- Transport Package：150m,Roll,CTN
- Specification：38*38*30cm
- Trademark：ELESUN
- Origin：China
- HS Code：8544200000
- Production Capacity：10000m,Day
Description
Description:. Conductor:BC(Bare Copper)
. Insulation Material: Foam PE
.1st Shielding: Aluminum Tape
.2nd Shielding: Tinned Copper Braiding
. Impedance:50Ω±2
.Jacket: PE, PVC, LSZH
. Color: Black,White
Typical Application:
1A.LSR400 is the same specification as LMR400, generally designed for jumper assemblies in wireless communications systems
2.ALSR400 can replace for RG8 air-dielectric type cable.
3.ALSR400 has PE jacket, PVC jacket, LSZH jacket Flame-retardant LSZH jacket, Flame-retardant PVC jacket for different environment
Best Feature:
1. ALSR400/ LMR 400 cable features a flexible outer conductor, allowing the tightest bend radius of any cable of similar size and performance. ALSR400(LMR400) low loss coaxial cable specifications
