Tinned Copper Fluoroplastic Insulated Cable Electric Wire 20AWG with UL1331
Dongguan Dewei Wire Co., Ltd.- Type：Insulated
- Conductor Type：Stranded
- Application：Overhead, Heating, Underground
- Conductor Material：Copper
- Insulation Material：FEP
- Material Shape：Round Wire
Base Info
- Model NO.：UL1331 20AWG
- Certification：ISO9001, UL, RoHS
- Brand：Dewei
- Fluoroplastic Cable：UL1331 20AWG
- Transport Package：305m,Coil, 5 Coils in a Box
- Specification：UL1331
- Trademark：DEWEI
- Origin：Dongguan, China
- HS Code：8544492100
- Production Capacity：500000m,Week
Description
Overview
Con.of conductor. Diameter Thickness of insulator Over diameter Packing NO/mm mm mm mm mt/coils 30# 7/0.1 0.3 0.51 1.27 305 28# 1/0.32 0.32 0.51 1.39 305 26# 7/0.16 0.48 0.51 1.51 305 19/0.1 0.5 0.51 1.52 305 24# 7/0.203 0.61 0.51 1.63 305 19/0.12 0.6 0.51 1.62 305 22# 7/0.254 0.76 0.51 1.78 305 19/0.16 0.8 0.51 1.82 305 20# 7/0.31 0.93 0.51 1.97 305 19/0.19 0.96 0.51 1.98 305 18# 7/0.39 1.17 0.51 2.19 305 19/0.235 1.18 0.51 2.2 305 16# 7/0.5 1.5 0.51 2.52 305 19/0.3 1.51 0.51 2.53 305 14# 19/0.37 1.86 0.51 2.88 200 12# 19/0.47 2.35 0.51 3.37 100 10# 37/0.43 3.02 0.51 4.04 100 1,All raw material we selected the high quality one.
2,Professional & Skilful workers care every details in handling the producing.
3,Quality Control Department specially responsible for quality checking in each process.
Specification
Product Description
AWG

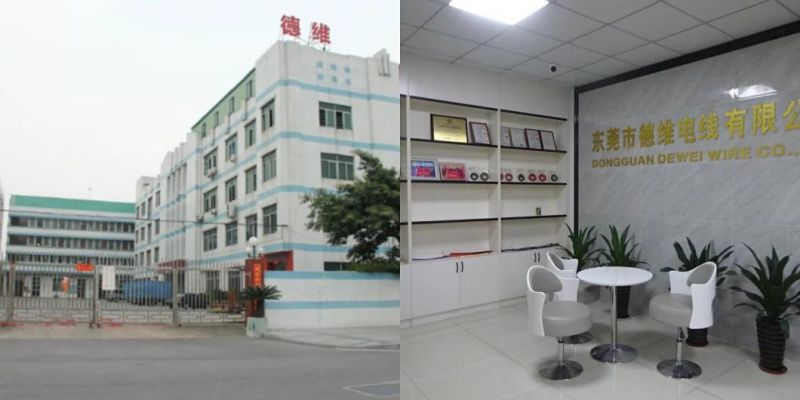

Manufacturing Shop

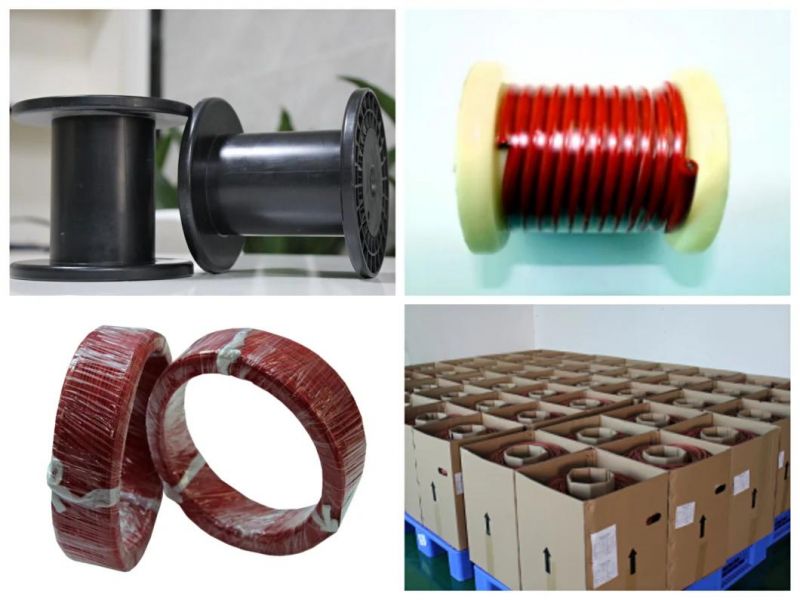

Packaging & Shipping
Certifications
FAQ
2,Professional & Skilful workers care every details in handling the producing.
3,Quality Control Department specially responsible for quality checking in each process.
