• Model NO.：Electric Wire
• Material Shape：Round Wire
• Range of Application：Fire Resistant,Flame Retardant,Lsoh
• Certification：ISO9001, CE, CCC, BV, SGS
• Brand：People′s Cable Group
• Rated Voltage：300,300V, 300,500V, 450,750V
• Standard：IEC, GB, JIS, BS, ASTM, DIN, UL
• Color：Black, Red, Green, Grey, Yellow,Green, Required
• OEM：Yes
• Manufacturer：Factory
• Core：1, 2, 3, 4, 5, 6
• Popular Size：1.5mm,2.5mm,4mm,6mm,10mm,16mm,25mm,35mm,50mm
• Electric Wire Price：According to Size and Quantity
• Transport Package：Rolls or According to Cusotmers′ Request
• Specification：0.75-240mm2
• Trademark：RMjT
• Origin：Henan, China
• HS Code：8544492100
• Production Capacity：5000000km,Year

CategoryDescriptionsTypeRated voltageNo. of coresNominal Cross .section mm2.Non-sheathed cables and wires for fixed wiringSingle core solid conductor non-sheathed cables for common uses60227IEC01
(BV)450/75011.5~400Aluminum conductor PVC insulated cablesBLV450/75012.5~400Copper conductor PVC insulated flexible cablesBVR450/75012.5~70Copper conductor PVC insulated wiresBV300/50010.75~1.0Single core solid conductor non-sheathed cables for internal wiring of equipment with conductor operating temperature of 70°C60227IEC05
(BV)300/50010.5~1.0Single core solid conductor non-sheathed cables for internal wiring of equipment with conductor operating temperature of 90°C60227IEC07
(BV-90)300/50010.5~2.5Single core flexible conductor non-sheathed cables for common uses60227IEC02
(RV)450/75011.5~240Single core flexible conductor non-sheathed cables for internal wiring of equipment with conductor operating temperature of 70°C60227IEC06
(RV)300/50010.5~1.0Single core flexible conductor non-sheathed cables for internal wiring of equipment with conductor operating temperature of 90°C60227IEC08
(RV-90)300/50010.5~2.5Sheathed cables for fixed wiringLight-duty PVC sheathed cables60227IEC10(BVV)300/5001,2,3,
4,51.5~35Copper conductor PVC insulated PVC sheathed flat cablesBVVB300/5002,30.75~10Aluminum conductor PVC insulated PVC sheathed circular cablesBLVV300/50012.5~10Aluminum conductor PVC insulated PVC sheathed flat cablesBLVVB300/5002,32.5~10Flexible cables(cords)Non-sheathed flat cords60227IEC42(RVB)300/30020.5~0.75Cords for indoor illumination loops60227IEC43
(SVR)300/30010.5~0.75Light-duty PVC sheathed cords60227IEC52(RVV)300/3002,30.5~0.75Ordinary PVC sheathed cords60227IEC53(RVV)300/5002,3,4,50.75~2.5Copper conductor PVC insulated stranded cords for connectingRVS300/30020.5~0.75
Technical Parameters:Nominal Section(mm2)Number /diameter of core   (mm)Thickness of insulation(mm)outer diameter     (mm)BV weight (kg/km)BLV weight (kg/km)Thickness of sheath(mm)1.51/1.380.702.7820.07/0.802.51/1.780.803.3831.7216.320.8041/2.250.803.8546.7022.090.9061/2.760.804.3666.4329.390.90107/1.351.006.05113.1550.710.90167/1.701.007.10170.5671.550.90257/2.141.208.82267.85110.961.20357/2.521.209.96361.34143.781.205019/1.781.4011.70490.78195.741.407019/2.141.4013.50691.22264.771.409519/2.521.6015.80954.92363.581.6012037/2.031.6017.411191.27443.701.6015037/2.251.8019.351465.85547.471.8018537/2.522.0021.641837.14685.122.0024061/2.242.2024.562384.59883.482.2030061/2.502.4027.302963.241093.442.40

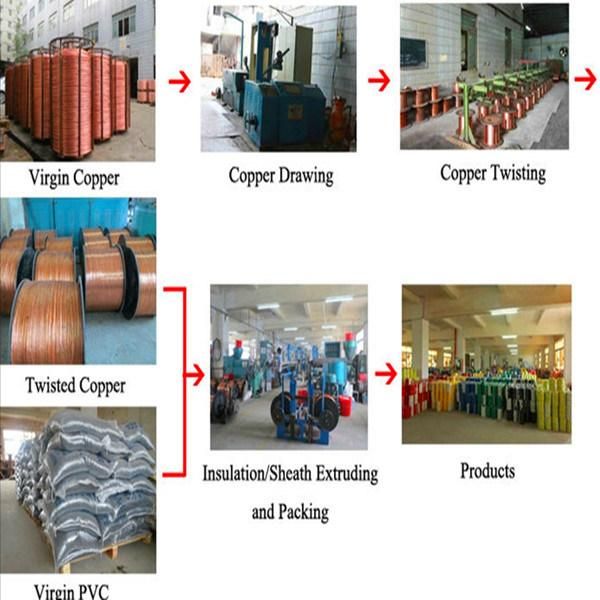

Electric Wire Production Progress

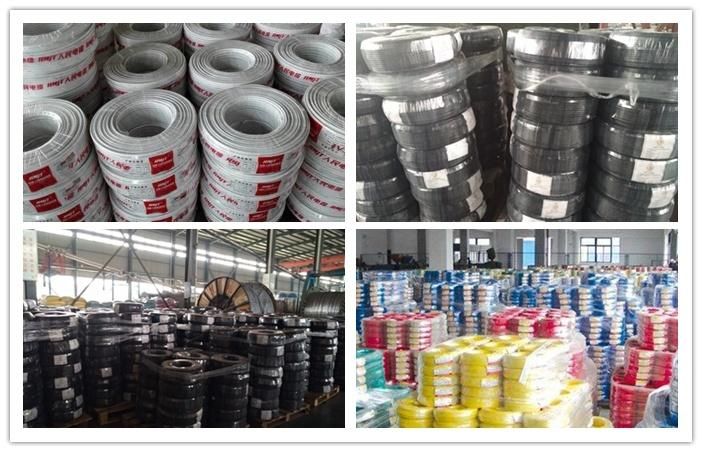

Electric Wire Package

Certification
As top rank of the cable supplier in China, we have obtained CCC, ISO9001, ISO14001, CE, OHSAS certificates, passed the SGS and BV test, and our brand "RMJT" be given China famous brand.

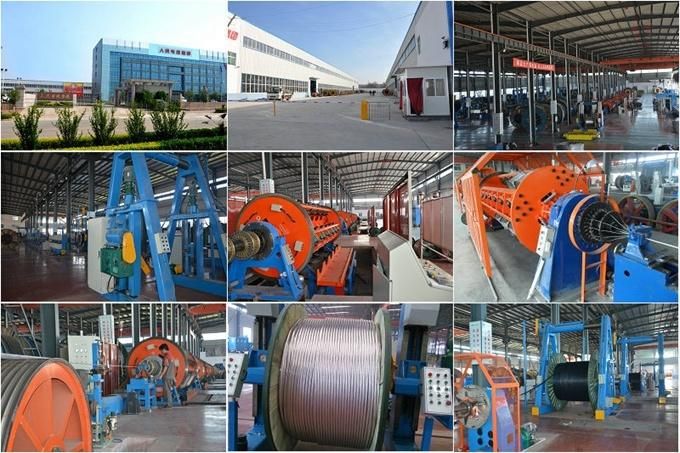

About Us
People's Cable Group Co., Ltd. Was founded in 2007, with good transport facilities which adjacent to the 310 national highway-Lian Huo highway. Our company had 2 factories(Zhitian factory and Zhulin factory), occupies total area of more than 300,000 square meters, with building area 230,000 square meters. The real capital assets more than 10 million USD, with 630 staff members, 65 of which are professional and technical experts.
Our mainly products as follow:
1--pvc insulated electric wire whatever copper conductor,aluminum conductor, CCA(copper clad aluminum), CCS(copper clad steel).
2--pvc and xlpe insulated power cable with or without armor upto 35kv.
3--rubber cable like welding cable, mine cable, EPR cable and so on.
4--aerial bundled cable(ABC cable) up to 10kv.
5--bare conductor like AAC, AAAC, ACSR, ACAR, ACSR/AW, aluminum clad steel wire, galvanized steel wire, PC steel wire and so on.


Customer Visit
We have a professional sales team with each of them has engaged in this job for 3-10 years,
so that we can provide the comprehensive and professional technology for you. With the perfect quality and after sales service,till now we have exported to more than 80 countries, welcome to visit us and establish win-win business relationship!


FAQ:

I didn't find the cable which I need in this page?
If you didn't find the species of cables you need, please contact us directly, we will reply you quickly.

Are you a trading company or manufacturer?
We are professional manufacturer in Henan, China.

What is the MOQ?
Mostly we sell from stock for normal items, you can buy any quantity unless it is customed-made.

Can you offer me a free sample?
Yes, after price confirmation, you can require for samples to check our quality. Sample is free but the freight charge should be paid.

How long to get the sample?
After you pay the freight charge and send us confirmed files, the samples will be ready for delivery in 3-7 days. The samples will be sent to you via express and arrive in 3~5 days.

How is your package?
Normally packed with coils and cartons, and wooden/steel wooden drums, other ways can be done according you.

How is the payment?
T/T, L/C is accepted.

What is the lead time for mass production?
Honestly, it depends on the order quantity and the season you place the order. The best record we keep is delivering 10 kilometers cable within a week. Generally speaking, we suggest that you start inquiry two months before the date you would like to get the products at your country.

Welcome your inquiry! Any question please feel free to contact me.
