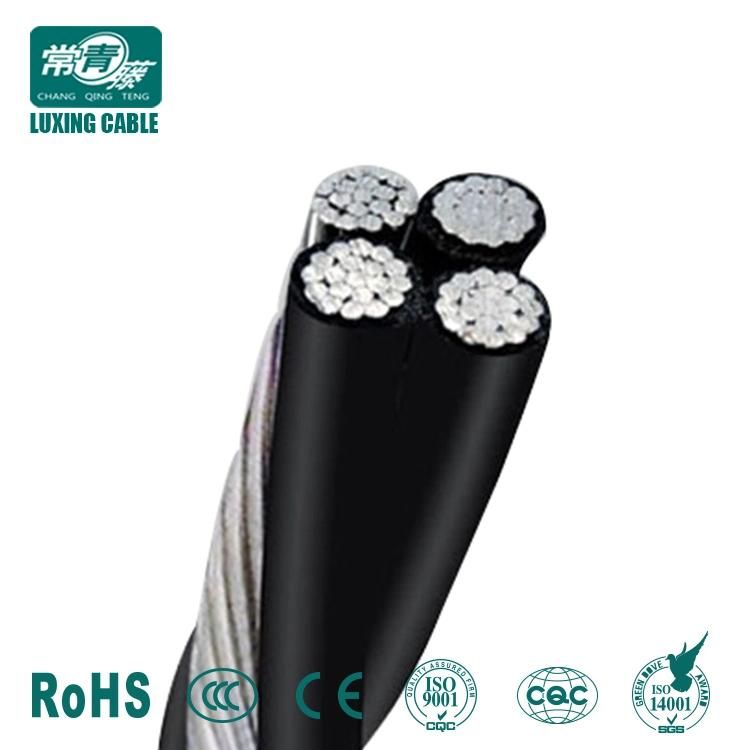

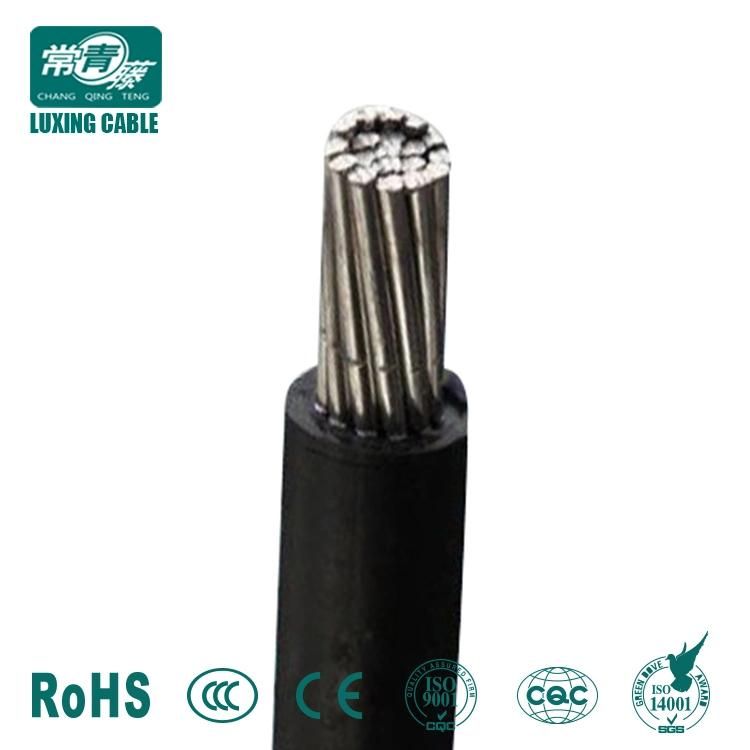

0.6/1kv Al XLPE/Aerial Bundled/ABC Cable for Aluminum
Shandong New Luxing Cable Co., Ltd.- Application：Construction, Underground, Industrial, Power Station
- Voltage：Low and Medium Voltage Cable
- Current：DC & AC
- Insulation Material：XLPE
- Sheath Material：PVC
- Material Shape：Round Wire
Base Info
- Model NO.：ABC Cable
- Wire Core Material：Aluminum Wire
- Certification：ISO, CCC, CE, RoHS
- Model：Electric Cables
- Brand：Luxing Cables
- Rated Voltage：Low Voltage Cable, Medium Voltage Cable
- Standard：IEC, BS, VDE, GB,T
- Normal Sectional Area：1.5-800mm2
- Conductor：Copper or Aluminum
- Insulation：XLPE,PVC
- Armoured：Steel Tape Armoured, Steel Wire Armoured
- Sheath：PVC,PE,Flame Retardant
- Insulation Color：Brown, Black, Grey,Blue, Yelllow,Green

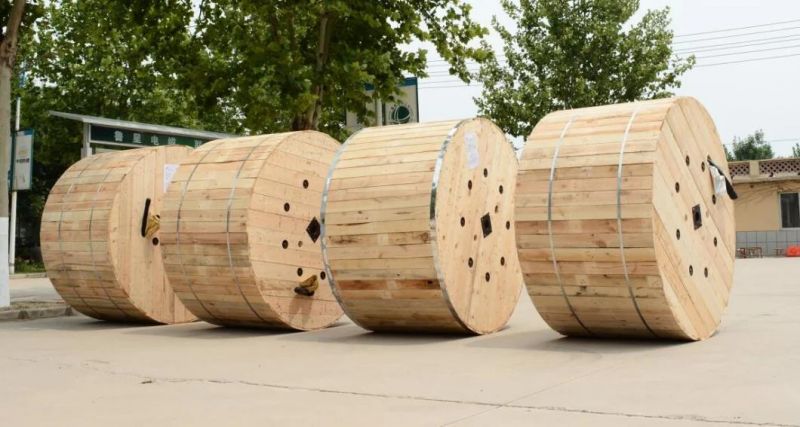

- Transport Package：Wooden Drum, Steel Wooden Drum, Steel Iron Drum
- Specification：1-35KV electric cables
- Trademark：CHANG QING TENG
- Origin：Dezhou, Shandong
- HS Code：8544492100
- Production Capacity：1000000meters,Month
Description
Laying occasionCopper core Aluminum core Steel core(intensive)aluminum stranded core JKV JKLV(BLVW) JKLGV(BLVWG or BLGVW) Aerial fixed laying lines or service wire,only for 0.6/1kv line. JKYJ JKLYJ JKLGYJ Aerial fixed laying lines,cables and trees should be set up to consider keeping a certain distance,during cable working,it is allowed to contact frequent with trees. JKYJ/Q JKLYJ/Q JKLGYJ/Q Aerial fixed laying lines,cables and trees should be set up to consider keeping a certain distance,during cable working,it is allowed to contact temporary with trees. JKYJ/J JKLYJ/J JKLGYJ/J Aerial fixed laying lines,cables and trees should be set up to consider keeping a certain distance,during cable working,it is allowed to contact frequent with trees,allow low laying.
3.Operating characteristic1)rated voltage 0.6/1kv,10kv
2)max permissible continuous operating temperature of conductor:PVC insulated ≤70ºC.XLPE insulated ≤90ºC.
3)during short circuit(lasting less than 5s),the maximum temperature of the cable:PVC insulated is 160ºC;XLPE insulated should not exceed 250ºC.
4)laying temperature of cable should not less than -20ºC,cable should be preheated when below -20ºC.
5)bending radius:
-0.6/1kv
D<25mm,should not less than 4D;steel core( intensive) should not less than 6D.
D≥25mm,should not less than 6D;steel core(intensive) should not less than 10D.
-10kv
single core cable should not less than 20D,steel core strand should not less than 25D.
multi-core cable should not less than 15D,steel core strand should not less 20D.
4.Why buy cables from luxing cable factory?
1) Reliable material;

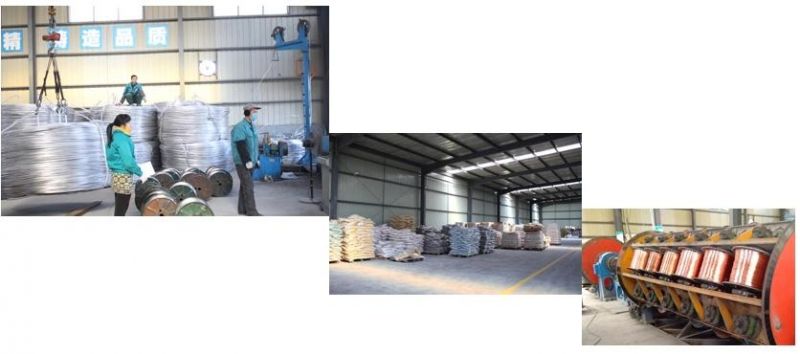

-Each raw material into the plant, must undergo a rigorous selection and testing,
-To ensure that the best material to you.
2) Strict production;

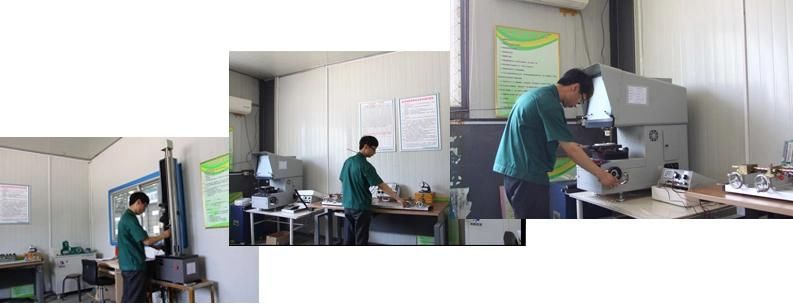

-24 production processes, 24 detection processes,
-Each of the strict control procedures to ensure cable safety.

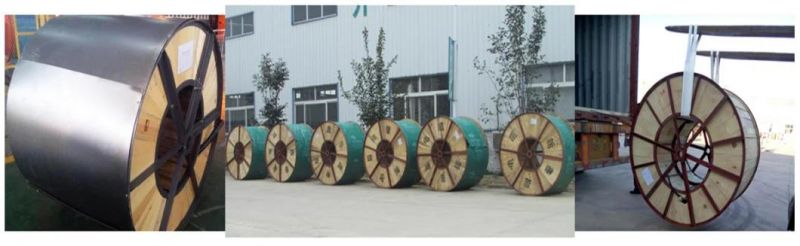

3) Safe packaging ;
-Using wood fumigation plate, plus metal packaging,
-reliable transport so that cable safely arrived at your site.
3.Operating characteristic1)rated voltage 0.6/1kv,10kv
2)max permissible continuous operating temperature of conductor:PVC insulated ≤70ºC.XLPE insulated ≤90ºC.
3)during short circuit(lasting less than 5s),the maximum temperature of the cable:PVC insulated is 160ºC;XLPE insulated should not exceed 250ºC.
4)laying temperature of cable should not less than -20ºC,cable should be preheated when below -20ºC.
5)bending radius:
-0.6/1kv
D<25mm,should not less than 4D;steel core( intensive) should not less than 6D.
D≥25mm,should not less than 6D;steel core(intensive) should not less than 10D.
-10kv
single core cable should not less than 20D,steel core strand should not less than 25D.
multi-core cable should not less than 15D,steel core strand should not less 20D.
