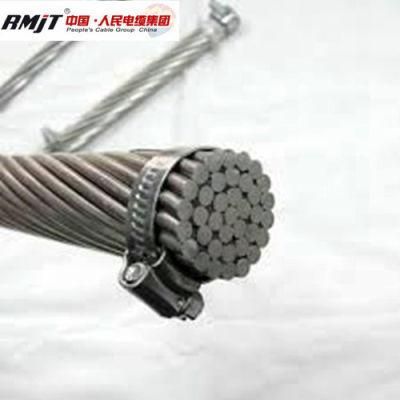

Electric Wire Overhead Aluminum Conductor AAC with ISO Certificate
People's Cable Group Co., Ltd.- Type：Bare
- Conductor Type：Stranded
- Application：Overhead
- Conductor Material：Aluminum
- Sheath Material：Bare
- Insulation Material：Bare
Base Info
- Model NO.：aac
- Material Shape：Round Wire
- Range of Application：Overhead
- Certification：ISO9001, CE, CCC, BV
- Brand：Rmjt
- Name：AAC Conductor
- Standard：ASTM B231,BS 215,DIN 48201
- Code Name：Rose,Iris,Poppy,Daisy,Tulip,Canna,Cosmos,Cowslip
- Usage：transmission Line
- Country：China
- OEM：Yes
- Transport Package：Wooden Drum
- Specification：ASTM BS GB IEC DIN
- Trademark：RMJT
- Origin：China
- HS Code：7614900000
- Production Capacity：10000000meters,Year
Description
Code NameArea Stranding Approx. Overall Diameter Weight Nominal Breaking Load D.C. Resistance at 20ºC No. Dia. mm2 mm2 mm mm kg/km kN ohm/km 10 10 7 1.35 4.05 27.4 1.95 2.8633 16 16 7 1.71 5.12 43.8 3.04 1.7896 25 25 7 2.13 6.40 68.4 4.50 1.1453 40 40 7 2.70 8.09 109.4 6.80 0.7158 63 63 7 3.39 10.2 172.3 10.39 0.4545 100 100 19 2.89 12.9 274.8 17.00 0.2877 125 125 19 3.27 14.5 343.6 21.25 0.2302 160 160 19 3.66 16.4 439.8 26.40 0.1798 200 200 19 4.09 18.3 549.7 32.00 0.1439 250 250 19 3.29 20.5 687.1 40.00 0.1151 315 315 37 3.71 23.0 867.9 51.97 0.0916 400 400 37 3.94 26.0 1102.0 64.00 0.0721 450 450 37 4.15 27.5 1239.8 72.00 0.0641 500 500 37 4.39 29.0 1377.9 80.00 0.0577 560 560 37 3.63 30.7 1542.9 89.60 0.0515 630 630 61 3.85 32.6 1738.3 100.80 0.0458 710 710 61 4.09 34.6 1959.1 113.60 0.0407 800 800 61 4.33 36.8 2207.4 128.00 0.0361 900 900 61 4.57 39.0 2483.3 144.00 0.0321 1000 1000 61 3.96 41.1 2759.2 160.00 0.0289 1120 1120 91 4.18 43.5 3093.5 179.20 0.0258 1250 1250 91 4.18 46.0 3452.6 200.00 0.0231 1400 1400 91 4.43 48.7 3866.9 224.00 0.0207 1500 1500 91 4.58 50.4 4143.1 240.00 0.0193
4.Packing
Packing in wooden drums,steel wooden drums or as customer's requirement.

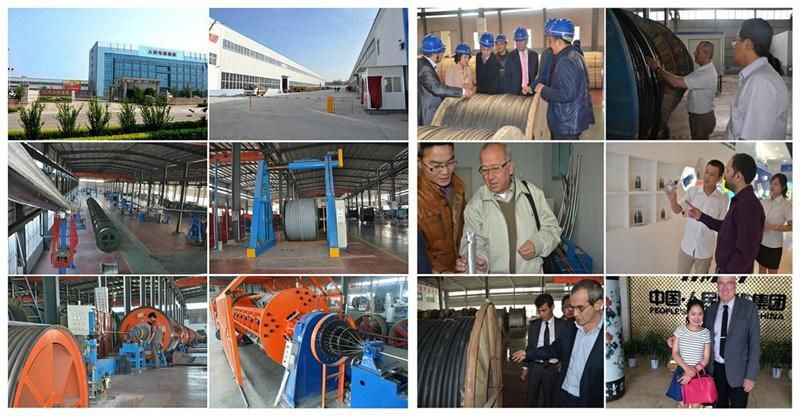

5.Customer Visit
We have a professional sales team with each of them has engaged in this job for 3-10 years, so that we can provide the comprehensive and professional technology for you. With the perfect quality and after sales service, till now we have exported to more than 80 countries, welcome to visit us and establish win-win establish relationship!

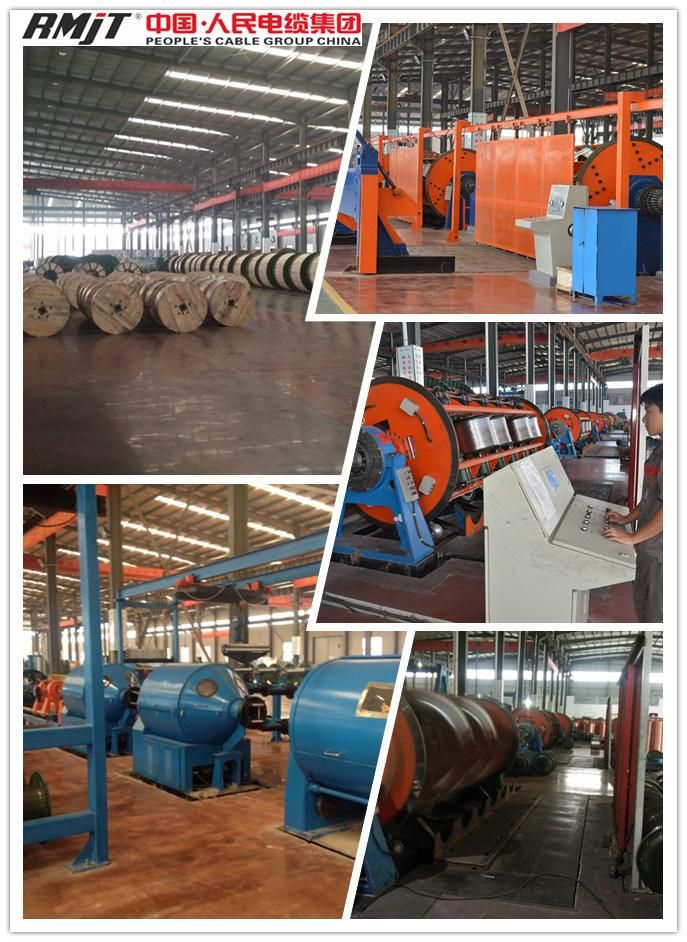

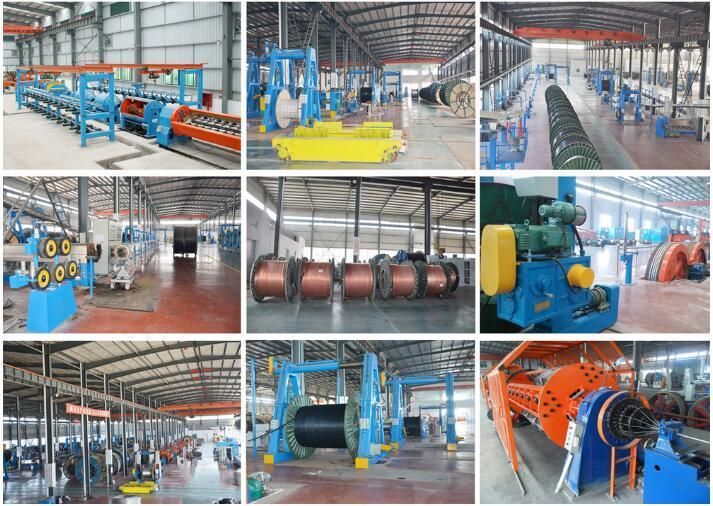

6.Production process:
AAC conductor producing process is drawing stranding and cabling,our factory possess 2 subsidiaries,Zhulin factory is professional bare conductor workshop with 20 production line.
7.Certificate
As first rank of the cable supplier in China, we have obtained CCC, ISO9001, ISO14001, OHSAS certificates, passed the SGS and BV test, and our brand "RMJT" be given China famous brand.
8.About us:
People's Cable Group Co., Ltd. was founded in 2007, located in Zhengzhou Gongyi economic development zone. Our company has 2 factories (Zhitian factory and Zhulin factory), occupies total area of more than 300,000 square meters, with building area 230,000 square meters.
9.Contacts
Vivian Wong
T: 86-371-55632835 | M: 86-17719852022
