Low Price AAAC Conductor All Aluminum Alloy Elgin 6524 Mcm
People's Cable Group Co., Ltd.- Type：Bare
- Conductor Type：Stranded
- Application：Overhead
- Conductor Material：Aluminum
- Material Shape：Round Wire
- Certification：ISO9001, CCC
Base Info
- Product Name：Bare Overhead Aluminio De Conductor AAC
- Standard：BS IEC ASTM DIN and So on
- Section Area：10mm2-1000mm2
- Conductor：Aluminium
- Transport Package：Wooden Drum or Steel&Wooden Drum
- Specification：35mm 50mm 70mm 95mm
- Trademark：RMJT
- Origin：Henan China
- HS Code：7614900000
- Production Capacity：5000000
Description
Code wordSize of Conductor Stranding and Wire Diameter Overall Diameter Max.D.C. Resistance at 20°C AWG or MCM mm mm ohm/km AWG or MCM mm mm ohm/km Peachbell 6 7/1.554 4.67 2.1692 Verbena 700 37/3.493 24.45 0.0813 Rose 4 7/1.961 5.89 1.3624 Nasturtium 715.5 61/2.75 24.76 0.0795 Lris 2 7/2.474 7.42 0.8577 Violet 715.5 37/3.533 24.74 0.0795 Pansey 1 7/2.776 8.33 0.6801 Cattail 750 61/2.817 25.35 0.0759 Poppy 1/0 7/3.119 9.36 0.539 Petunia 750 37/3.617 25.32 0.0759 Aster 2/0 7/3.503 10.51 0.4276 Lilac 795 61/2.90 26.11 0.0715 Phlox 3/0 7/3.932 11.8 0.339 Arbutus 795 37/3.724 26.06 0.0715 Oxlip 4/0 7/4.417 13.26 0.2688 Snapdragon 900 61/3.086 27.78 0.0632 Valerian 250 19/2.913 14.57 0.2275 Cockscomb 900 37/3.962 27.73 0.0632 Sneezewort 250 7/4.80 14.4 0.2275 Goldenrod 954 61/3.177 28.6 0.0596 Laurel 266.8 19/3.01 15.05 0.2133 Magnolia 954 37/4.079 28.55 0.0596 Daisy 266.8 7/4.96 14.9 0.2133 Camellia 1000 61/3.251 29.36 0.0569 Peony 300 19/3.193 15.97 0.1896 Hawkweed 1000 37/4.176 29.23 0.0569 Tulip 336.4 19/3.381 16.91 0.1691 Larkspur 1033.5 61/3.307 29.76 0.055 Daffodil 350 19/3.447 17.24 0.1625 Bluebell 1033.5 37/4.244 29.72 0.055 Canna 397.5 19/3.673 18.36 0.1431 Marigold 1113 61/3.432 30.89 0.0511 Goldentuft 450 19/3.909 19.55 0.1264 Hawthorn 1192.5 61/3.551 31.05 0.0477 Syringa 477 37/2.882 20.19 0.1193 Narcissus 1272 61/3.668 33.02 0.0477 Cosmos 477 19/4.023 20.12 0.1193 Columbine 1351.5 61/3.78 34.01 0.0421 Hyacinth 500 37/2.951 20.65 0.1138 Carnation 1431 61/3.89 35.03 0.0398 Zinnia 500 19/4.12 20.6 0.1138 Gladiolus 1510.5 61/4.00 35.09 0.0376 Dahlia 556.5 19/4.346 21.73 0.1022 Coreopsis 1590 61/4.099 36.51 0.03568 Mistletoe 556.5 37/3.114 21.79 0.1022 Jessamine 1750 61/4.302 38.72 0.0325 Meadowsweet 600 37/3.233 22.63 0.0948 Cowslip 2000 91/3.76 41.4 0.02866 Orchid 636 37/3.33 23.31 0.0894 Lupine 2500 91/4.21 46.3 0.023 Heuchera 650 37/3.366 23.56 0.0875 Trillium 3000 127/3.90 50.75 0.0192 Flag 700 61/2.72 24.48 0.0813 Bluebonnet 3500 127/4.21 54.8 0.01653
All Aluminum stranded conductor according to Din48201
4.Production process:Bare conductor producing process is drawing stranding and cabling,our factory possess 2 subsidiaries,Zhulin factory is professional bare conductor workshop with 20 production line.

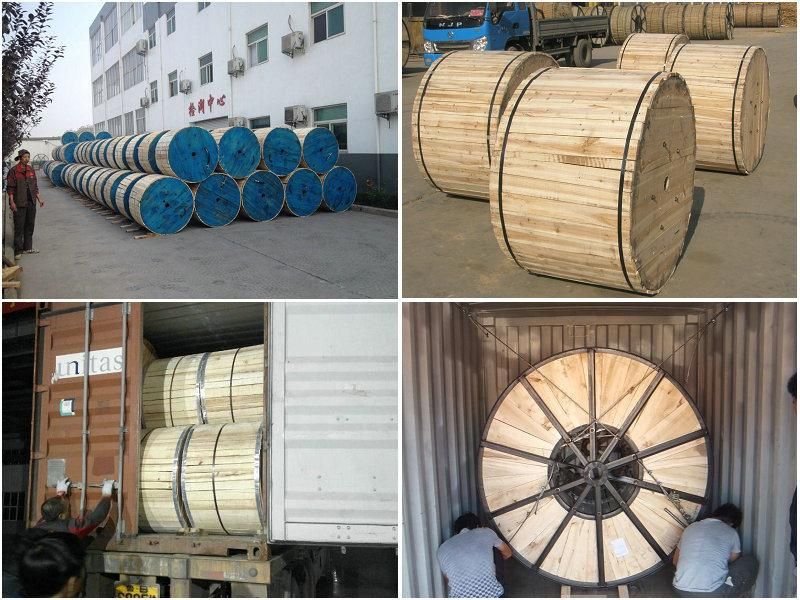

5.Package
Packing in plastic reel, paper reel ,wooden drum,steel wooden drum or as customer's requirement.

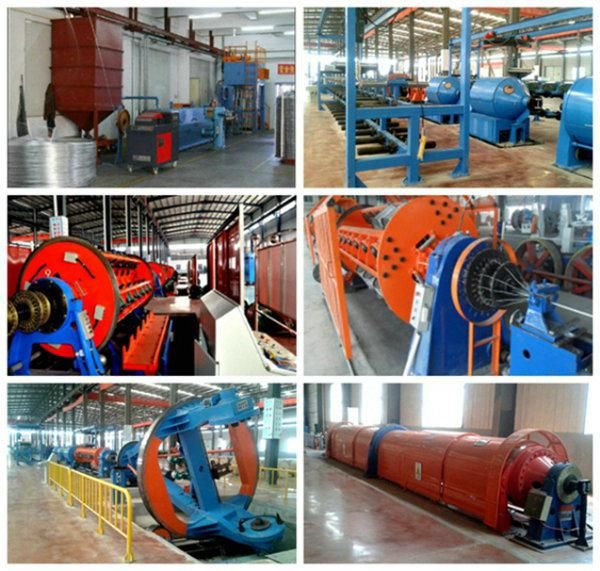

6.Our factory:
People's Cable Group Co., Ltd. was founded in 2007, located in Zhengzhou Gongyi economic development zone. Our company has 2 factories (Zhitian factory and Zhulin factory), occupies total area of more than 300,000 square meters, with building area 230,000 square meters.
7.Certificate:
As first rank of the cable supplier in China, we have obtained CCC, ISO9001, ISO14001, OHSAS certificates, passed the SGS and BV test, and our brand "RMJT" be given China famous brand.
8.Customer Visit:
We have a professional sales team with each of them has engaged in this job for 3-10 years, so that we can provide the comprehensive and professional technology for you. With the perfect quality and after sales service, till now we have exported to more than 80 countries, welcome to visit us and establish win-win establish relationship!
9.Contact:
Dear friends, welcome to our store. We will provide you with china wholesale market market products, excellent service and reasonable price.Please contact us if have any questions about the product. we will answer the questions carefully.At last,I wish you a pleasant purchase.
Factrory ADD:No.13th,YongDing Road, Goingyi,Zhengzhou city, Henan province, China.
All Aluminum stranded conductor according to Din48201
| Size | Calculated area | Stranding and wire diameter | Overall diameter | Linear mass | Rated strength | Max. DC resistance at 20ºC |
| mm2 | mm2 | mm | mm | kg/km | daN | Ω/km |
| 16 | 15.89 | 7/1.70 | 5.1 | 44 | 290 | 1.8018 |
| 25 | 24.25 | 7/2.10 | 6.3 | 67 | 425 | 1.1808 |
| 35 | 34.36 | 7/2.50 | 7.5 | 94 | 585 | 0.8332 |
| 50 | 49.48 | 7/3.00 | 9.0 | 135 | 810 | 0.5786 |
| 50 | 48.36 | 19/1.80 | 9.0 | 133 | 860 | 0.5950 |
| 70 | 65.82 | 19/2.10 | 10.5 | 181 | 1150 | 0.4371 |
| 95 | 93.27 | 19/2.50 | 12.5 | 256 | 1595 | 0.3084 |
| 120 | 117.00 | 19/2.80 | 14.0 | 322 | 1910 | 0.2469 |
| 150 | 147.10 | 37/2.25 | 15.2 | 406 | 2570 | 0.1960 |
| 185 | 181.60 | 37/2.50 | 17.5 | 501 | 3105 | 0.1587 |
| 240 | 242.54 | 61/2.25 | 20.2 | 670 | 4015 | 0.1191 |
| 300 | 299.43 | 61/2.50 | 22.5 | 827 | 4850 | 0.09650 |
| 400 | 400.14 | 61/2.89 | 26.0 | 1105 | 6190 | 0.07221 |
| 500 | 499.83 | 61/3.23 | 29.1 | 1381 | 7600 | 0.05781 |
| 625 | 626.20 | 91/2.96 | 32.6 | 1733 | 9690 | 0.04625 |
| 800 | 802.10 | 91/3.35 | 36.8 | 2219 | 12055 | 0.03611 |
| 1000 | 999.71 | 91/3.74 | 41.1 | 2766 | 14845 | 0.02897 |
5.Package
Packing in plastic reel, paper reel ,wooden drum,steel wooden drum or as customer's requirement.
6.Our factory:
People's Cable Group Co., Ltd. was founded in 2007, located in Zhengzhou Gongyi economic development zone. Our company has 2 factories (Zhitian factory and Zhulin factory), occupies total area of more than 300,000 square meters, with building area 230,000 square meters.
7.Certificate:
As first rank of the cable supplier in China, we have obtained CCC, ISO9001, ISO14001, OHSAS certificates, passed the SGS and BV test, and our brand "RMJT" be given China famous brand.
8.Customer Visit:
We have a professional sales team with each of them has engaged in this job for 3-10 years, so that we can provide the comprehensive and professional technology for you. With the perfect quality and after sales service, till now we have exported to more than 80 countries, welcome to visit us and establish win-win establish relationship!
9.Contact:
Dear friends, welcome to our store. We will provide you with china wholesale market market products, excellent service and reasonable price.Please contact us if have any questions about the product. we will answer the questions carefully.At last,I wish you a pleasant purchase.
Factrory ADD:No.13th,YongDing Road, Goingyi,Zhengzhou city, Henan province, China.
