Factory Wholesale Low Price UTP FTP Cat5e Cable
Hangzhou Risun Cable Co., Ltd.- Application：Local Communication Cable, LAN Cable
- Conductor Material：BC,CCS,CCA,TC,CU,CCAG
- Cover Material：PVC+PE,PVC+PVC,PE+PE
- Type：Cat 5
- Material Shape：Round Wire
- Conductor Type：Solid
Base Info
- Model NO.：UTP FTP CAT5E
- Wire Core Material：Bare Copper Wire
- Certification：CE, ISO, RoHS, CPR,ETL,SGS
- Model：UTP,FTP Cat5e
- Brand：Risun or OEM
- Color：as Request
- Insulation：HDPE
- Frame Returdant：Available
- UV：Available
- Transport Package：305m,Pull Box, 2boxes,CTN
- Specification：CPR,ETL,CE,SGS,RoHS,ISO9001
- Trademark：Risun or OEM
- Origin：Hangzhou, China(Mainland)
- HS Code：8544491100
- Production Capacity：20000 Boxes , Mont
Description
Basic Info.
Model NO. UTP FTP CAT5E Wire Core Material Bare Copper Wire Certification CE, ISO, RoHS, CPR,ETL,SGS Model UTP/FTP Cat5e Brand Risun or OEM Color as Request Insulation HDPE Frame Returdant Available UV Available Transport Package 305m/Pull Box, 2boxes/CTN Specification CPR/ETL/CE/SGS/RoHS/ISO9001 Trademark Risun or OEM Origin Hangzhou, China(Mainland) HS Code 8544491100 Production Capacity 20000 Boxes / MontProduct Description

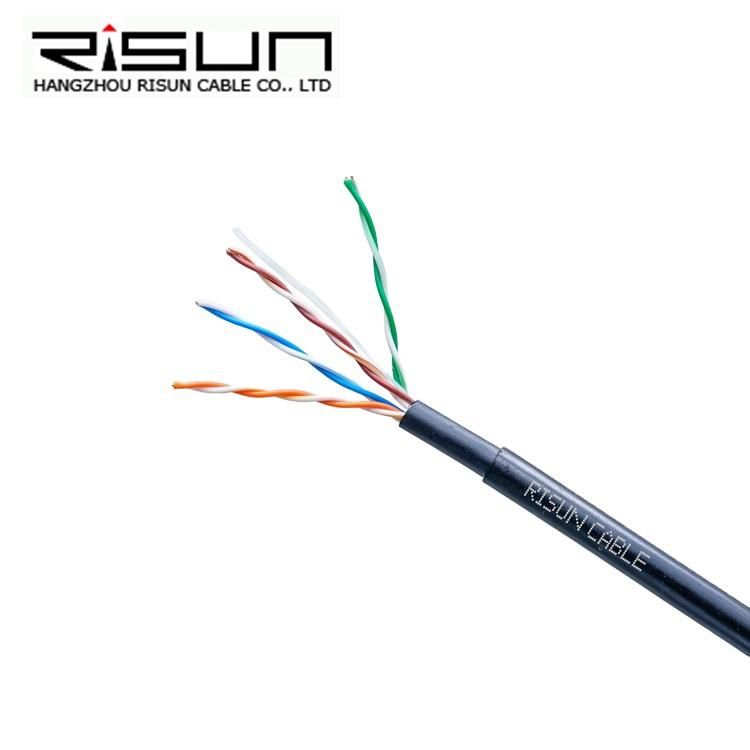

Factory wholesale low price UTP FTP Cat5E cable
construction: | conductor | 24awg (solid or strand) cu/cca/ccs |
| insulation | HDPE 0.90±0.02mm |
| sheath | 5.0±0.1mm pvc (fr,rohs,uv)/ lsoh / pe |
| cores/pairs | 8/4 |
mechanical properties:
| elongation | min. 300% |
| temperature range | -20 up to +75° c |
| tensile strength | min 1.68kg/mm² |
electrical properties:
| resistance | max. 9.38 ohm/100m |
| resistance unbalance | max. 2% |
| insulation resistance | 150 ohm/km |
| mutual capacitance | max. 5600pf/100m |
| capacitance unbalance | max. 330pf/100m |
| impedance | 100+/-15 ohm |
| spark test | 2000v |
| velocity of propagation | 67% |
packing

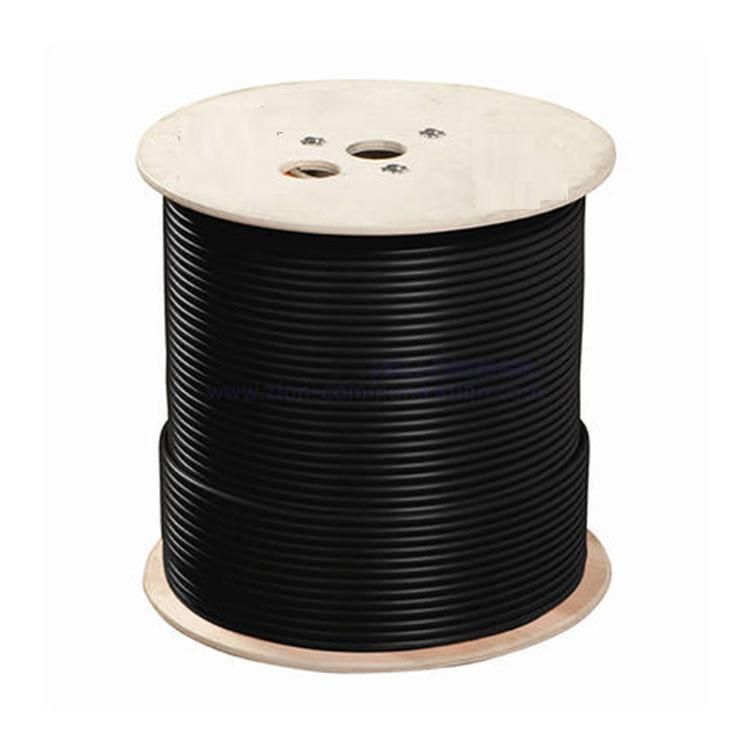

1) packing lengths: 305m/Wooden Drum, or other lengths available according to client's request.
2) inner packing: wooden reel, plastic reel, and paper reel available.
3) outer packing: carton box, pull box
4) other packing available according to client's request.
5) any question, please contact us without hesitation. we'll reply as soon as we can.
company profile
risun is a manufacturer and exporter of high quality lan cable/network cable,coaxial cable, alarm cable and telephone cable in china.
95% of our goods for the export market. 13 years of experience in this field makes us very familiar with export handling.we have customer in more than 40 countries all over the world.
in the past 13 years, we have already get ETL, CE, ROHS, ISO9001,CPR certification.
process of production:
Welcome to RISUN,we will be happy to serve you!
