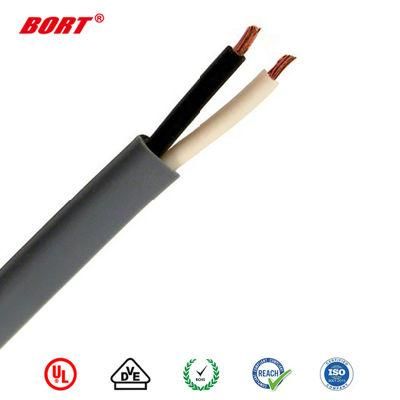

UL2405 2 Core Shielded Cable Electric Flexible PVC Cable
B&T (Zhangzhou) Cable Co., Ltd.- Type：Insulated
- Conductor Type：Stranded
- Application：Electric Wire
- Conductor Material：Copper
- Sheath Material：PVC
- Insulation Material：PVC
Base Info
- Model NO.：UL2405
- Material Shape：Round Wire
- Range of Application：Flame Retardant
- Certification：ISO9001, CE, UL, CCC, RoHS, VDE
- Brand：Bort
- Color：White,Blue,Red,as Request
- Factory：ISO 9001:2015
- Standard：Reach,RoHS
- OEM/ODM：Accepted
- Delivery：7-12days
- Weight：3.4kgs,Roll
- Packing：as Request
- Sample Time：3-5days
- Sample：Supplied
- Transport Package：Rolls
- Specification：610m
- Trademark：BORT
- Origin：China
- HS Code：85444929
- Production Capacity：300, 000km, Year
Description
Maximum Resistance at 20 ºC
Ω/kmAWG No./mm Dia.
mm Nom. Thick.
mm Nom.Dia.
mm Braid Shield
No./No./mm Nom. Thick.
mm Nom.Dia.
mm 2 30 7/0.1 0.30 0.41 1.12 56/0.12 0.45 3.38 354 28 7/0.127 0.38 0.41 1.20 60/0.12 0.45 3.54 223 26 7/0.16 0.48 0.43 1.34 57/0.12 0.45 3.82 139 24 11/0.16 0.61 0.41 1.43 71/0.12 0.45 4.00 88.9 22 17/0.16 0.76 0.43 1.62 70/0.12 0.45 4.38 57.5 22 7/0.254 0.76 0.41 1.58 78/0.12 0.45 4.30 57.5 20 26/0.16 0.94 0.41 1.76 88/0.12 0.45 4.65 34.6 18 41/0.16 1.18 0.43 2.04 16/7/0.1 0.54 5.22 23.3 18 16/0.254 1.18 0.41 2.00 99/0.12 0.45 5.14 23.3 16 26/0.254 1.50 0.41 2.32 115/0.12 0.45 5.78 15.1 3 30 7/0.1 0.30 0.41 1.12 63/0.12 0.45 3.55 354 28 7/0.127 0.38 0.41 1.20 68/0.12 0.45 3.72 223 26 7/0.16 0.48 0.41 1.30 73/0.12 0.45 3.94 139 24 11/0.16 0.61 0.43 1.47 79/0.12 0.52 0.450 88.9 22 17/0.16 0.76 0.41 1.58 89/0.12 0.45 4.54 57.5 20 26/0.16 0.94 0.41 1.76 99/0.12 0.45 4.93 34.6 18 41/0.16 1.18 0.41 2.00 113/0.12 0.45 5.45 23.3 4 30 7/0.1 0.30 0.41 1.12 71/0.12 0.45 3.84 354 28 7/0.127 0.38 0.41 1.20 76/0.12 0.45 4.04 223 26 7/0.16 0.48 0.41 1.30 82/0.12 0.45 4.28 139 24 11/0.16 0.61 0.41 1.43 90/0.12 0.45 4.59 88.9 22 17/0.16 0.76 0.41 1.58 100/0.12 0.45 4.95 57.5 20 26/0.16 0.94 0.41 1.76 111/0.12 0.45 5.39 34.6 5 30 7/0.1 0.30 0.41 1.12 79/0.12 0.45 4.16 354 28 7/0.127 0.38 0.41 1.20 85/0.12 0.45 4.38 223 26 7/0.16 0.48 0.41 1.30 92/0.12 0.45 4.65 139 24 11/0.16 0.61 0.41 1.43 100/0.12 0.45 5.00 88.9 22 17/0.16 0.76 0.41 1.58 112/0.12 0.45 5.41 57.5 6 30 7/0.1 0.30 0.41 1.12 88/0.12 0.45 4.50 354 28 7/0.127 0.38 0.41 1.20 94/0.12 0.45 4.74 223 26 7/0.16 0.48 0.41 1.30 102/0.12 0.45 5.04 139 24 7/0.2 0.60 0.41 1.42 112/0.12 0.45 5.40 88.9 24 11/0.16 0.61 0.41 1.43 112/0.12 0.45 5.43 88.9
FAQ
Q1: Can I get a free sample?
A1: We can provide the existing items samples free in freight collected. If there is any special samples requirement, please contact us for more details.
Q2: How could I pay?
A2: We prefer T/T or L/C at sight. If you prefer other payment terms, please contact us freely.
Q3: What is your packing way? Can I have the customized package?
A3: We have the standard export package. For more details about the customized package, please contact us.
Q4: What is the delivery lead time?
A4: It depends on the order quantities. The mass production lead time is about 7-12 days after receipt of the deposit.
Q5: Are you a factory or a trading company?
A5: We are a factory. We provide all kinds of OEM/ODM services for clients around the world.
Q6: Where is your main market?
A6: We export to the North America, Southeast Asia, Europe, Korea, Japan, and other countries.
Our Services
1. Professional QC and QA team to make sure all products qualified before shipping.
2. Competitive price
3 .Standard package to ensure the safe transportation.
4. Professional service
Why choose us?
1. Production
Qualified production, competitive price, professional service.
2. Technology
Professional R& D team
3. Equipment
With completive testing equipment.
4. Quality
UL/ CE/ FCC/ RoHS/ Reach certificate
