• Model NO.：Armoured cable
• Wire Core Material：Bare Copper Wire
• Certification：ISO, CCC, CE, RoHS, UL, VDE
• Model：Nepal Cable
• Brand：Yifang
• Standard：IEC 60502-2
• Armoured：Aluminum Tape
• No of Core：Single
• Metallic Screen：Copper Tape
• Jacket Color：Black
• Flame Retardant：Yes
• Transport Package：Wooden or Wooden-Steel Drum
• Specification：1x630mm2
• Trademark：Yifang Cable
• Origin：Zhengzhou, China
• HS Code：8544601290
• Production Capacity：300km,Month

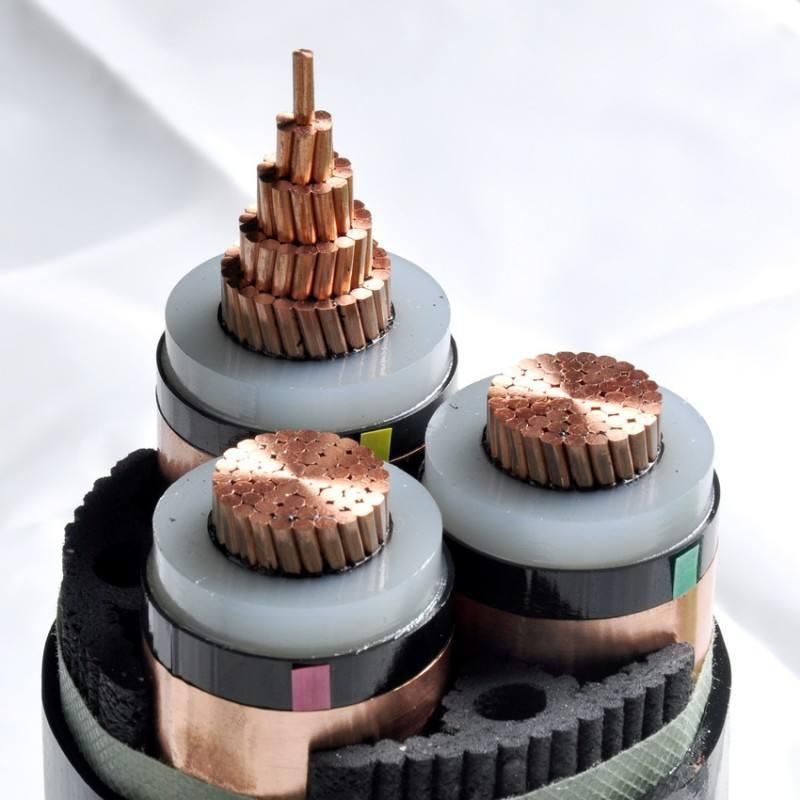

Construction CharacteristicsConductor material:CopperConductor identification:Coloured tapes under screenConductor shape:CircularConductor flexibility:Stranded class 2Material of the inner semi-conductor:Semi-conducting compoundInsulation:XLPE (Chemical)Material of the external semi-conduct:Extruded strippableScreen:Bare CopperInner sheath:PVCArmour type:Galvanized steel wiresOuter sheath:PVCColour:RedLead free:YesElectrical Characteristics Rated Voltage Uo/U (Um):8700/15000 volts to BS6622 & IEC 60502-2Usage Characteristics Minimum installation temperature:0°CMaximum installation temperature:60°CInstallation type:Direct burial or in ductsMaximum operating temperature:90°CShort-circuit max. conductor temperature:250°CFlame retardant:IEC 60332-1Bending radius:12 x Overall diameter3 Core: Brown, Black & Grey tapesPart NumberCross SectionStrandingApprox WeightApprox Overall DiameterGland SizeSingle CleatNom. Max. DC-resist conductor 20°CCurrent rating laid direct(mm²)(mm)KG/KM (mm)(mm) (Ohm/km)(Amp)15KVPVC3X503 x 5019/1.78610058.863sR90.38721315KVPVC3X703 x 7019/2.14710062.963sR100.26826015KVPVC3X953 x 9519/2.52830067.063R100.19330915KVPVC3X1203 x 12037/2.03940070.675sR110.15334915KVPVC3X1503 x 15037/2.251050073.675sR110.12439015KVPVC3X1853 x 18537/2.521290079.475R120.099143615KVPVC3X2403 x 24061/2.521520084.790R140.075449915KVPVC3X3003 x 30061/2.851760090.190R150.0754553On request the cable is available with a black polyethylene (PE) outer sheath. A MMQ and manufacturing lead-time may apply.


Our company

Yifang Electric group mainly specialized in wire&cables,including designment,production and sale.

Products are mainly covering low,medium,high voltage(1KV to 220KV) XLPE Insulated power cable,PVC insulated power cable,ABC cable,building cable control cable,rubber cable welding cable Etc.

Our XLPE cable can be manufactured according to the company's specification which is equivalent to IEC 60502,IEC60332,IEC60754. Some indexes are superior to above international standard.


Our certificate


FAQ

1.Q:Are you a factory or trading company?
 A: Manufacturing base in Henan ,China, with more than 500 workers.

2.Q:How can I visit there?
 A: Sure,If you need,we will arrange the driver to pick you up.

3.Q:How can I get some samples?
 A: Contact me on below,Determin sample and address for shipping.


4.Q:Have you ever supplied cables to our country?
 A: Yifang Cables have been sold to over 100 countries and regions in the world. can you contact me for details.

5.Q:What is your MOQ?
A: MOQ Normally 500 meters for big diameter cables.Please contact me for detail info if you have specific cable requirement.

6. Q:When can I get the price?
A: Usually quote within 6 hours after we get your inquiry.

7.Q:How long is your delivery time?
 A: According to your order's quantity.Usually our lead time is 3 - 20 working days.
