GYTY53 Outdoor Armored Fiber Optic Cable
DONGGUAN TW-SCIE CO., LTD.- Application:Communication
- Type:Multi-mode Fiber
- Connection Structure:LC
- Material Shape:Round Wire
- Allowed Lateral Pressure:100(N,100mm)<1000(N,100mm)
- Allowed Tensile Strength:100N<1000N
Base Info
- Model NO.:GYTY53
- Core:Multicore
- Certification:RoHS, ISO9001
- Brand:OEM
- Sheath Material:PE
- Model No:GYTY53 Fiber Optic Cable
- Fiber Count:2-288 Core
- Brand Name of Fiber:Corning, Yofc, or as Your Requirement
- Waterblocking Material:Water Blocking Tape or Filling Compound
- Color of Fiber /Loose Tube:Steel Wire or FRP Color of Fiber and Loose Tube Re
- Installation Style:Duct & Direct Buried
- Loose Tube Material:PBT with Jelly
- Armour Material:Corrugated Steel Tape
- Transport Package:Wooden Drum
- Specification:SGS ROHS REACH ISO
- Trademark:TW-SCIE or OEM
- Origin:China (Mainland) Guangdong Dongguan
- HS Code:8544700000
- Production Capacity:200km,Day
Description
Technical data:Fiber Num. Outer diameter (mm) Weight (kg/km) Min.Bending radius(mm) Tension (N) Crash loading (N/100mm) Static Dynamic Short term Long term Short term Long term 2-24 13.3 210 12.5 times O.D. 25 times O.D. 3000 1000 3000 1000 26-36 13.6 220 38-60 14.1 225 62-72 14.6 255 74-96 16.2 305 98-120 17.7 350 122-144 19.1 395 146-216 19.6 420 218-240 22.8 530 242-288 25 620
Fiber Optic Cable Applications
1. Adopted to Outdoor distribution
2. Suitable for direct buried method
3. Long distance and local area network communication
4. Used outdoor cabling
Fiber Optic Cable Specifications
1.2-288 core fiber optic cable / GYTY53 Fiber Optic Cable / Fiber Optic Cable
2. PE jacket 2-288 core Fiber Optic Cable
3. GYTY53 Fiber Optic Cable
4. Burial Fiber Optic Cable
Fiber Optic Cable Feature Description
1. Good mechanical and temperature performance
2. High strength loose tube that is hydrolysis resistant
3. Special tube filling compound ensure a critical protection of fiber
4. Crush resistance and flexibility
5. The following measures are taken to ensure the cable watertight
6. Loose tube filling compound, 100% cable core filling
7. Enhancing moisture-proof
8. Water-blocking material
9. Single Fiber Reinforced Plastic as the central strength memberFiber optic cable cable GYTY53 comply with Standard YD/T 901-2001 as well as IEC 60794-1
Packing: Protected by wooden batterns.
PS: The inner and outer ends of cable will be capped and made accessible for testing. A direction
Of rotation arrow is marked on the drum together with the identification
Structure chart of GYTY53:

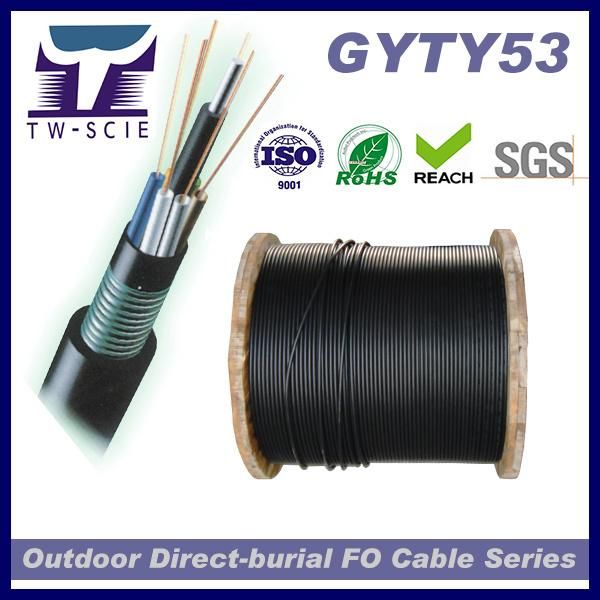

More pictures for GYTY53:

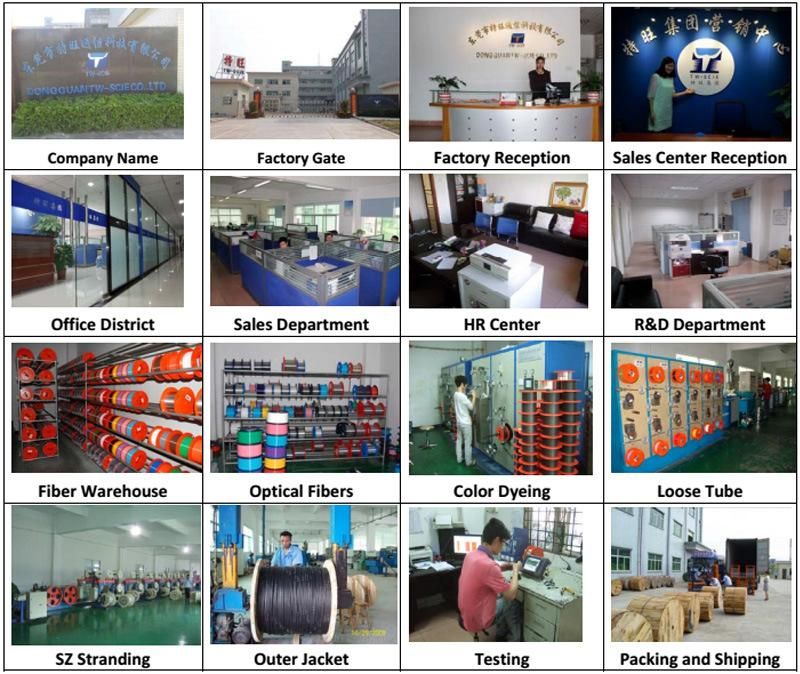

Company view:
For more details please feel free to contact me. Any of your inquiry will reply within 24hrs.
Banney
