• Model NO.：FC-LC SM DUPLEX fiber optic patch cord
• Core：Double Core
• Certification：RoHS, UL, ISO9001
• Brand：OEM
• Sheath Material：LSZH
• Connector Type：Sc, FC, St, LC Are Available
• Features：50,125u; Core Size,2mm Jacket Size
• Applications：10 Gigabit Ethernet,ONU,FTTH, Data Centers
• Transport Package：Carton Box
• Specification：cable type: Simplex or Duplex cable
• Trademark：Fiberlink
• Origin：China
• HS Code：8544700000
• Production Capacity：1000000 Per Month

Fiber TypeMax. Attenuation(dB/km)Min.Overfill Launch
Bandwidth (Mhz.km)Min.Gigabit Ethernet
Link Distance (m)Gigabit10Gigabit850nm1300nm1310nm1550nm850nm1300nm850nm1300nm850nnmOM1 62.5/125µm≤2.7≤0.6--≥500≥600275550-OM2 50/125µm≤2.3≤0.6--≥500≥500750600150OM3 50/125µm≤2.3≤0.6--≥1500≥5001000600300OM4 50/125µm≤2.3≤0.6--≥3500≥5001100600550G652D 9/125µm--≤0.30≤0.18-----G657A 9/125µm--≤0.35≤0.21-----
Single modeMultimodePCUPCAPC62.5/12550/12550/125 10GInsert Loss/connector (single Fiber)0.2dB Max. (0.15dB typ.) 0.3dB Max. (0.25dB typ.)Return Loss≥45 dB≥50 dB≥60 dBN.AInsert Loss/MTRJ Connector0.5dB Max. (0.45dB typ.)0.5dB Max. (0.45dB typ.)Pull Strength≥98N≥98N
Ordering Information
Using the available configurations amend/create product codes using the formula below.
Part Number: PC-AA-BB-CDEFGCL

Ordering Guide

AA	BB	C	D	E	F	G	CL
Connector  Type	Connector T ype	Fiber Type	Fiber Count	Boot fit for  cable diameter	Length	Jacket  Materia	Jacket  Color(CL)
FP,SP, SA,LP	FP,SP, SA,LP	OM1=62.5/125 OM1 OM2=50/125 OM2 OM3=50/125 OM3 OM4=50/125 OM4 G652D=9/125 G652D G657A=9/125 G657A	SX=Simplex DX=Duplex 4F=4 cores 6F=6 cores 12F=12 cores	09=0.9mm 16=1.6mm 20=2.0mm 30=3.0mm	0015=1.5M 0200=20M	1=PVC 2=LSZH 3=PE	As noted in  Color code chart

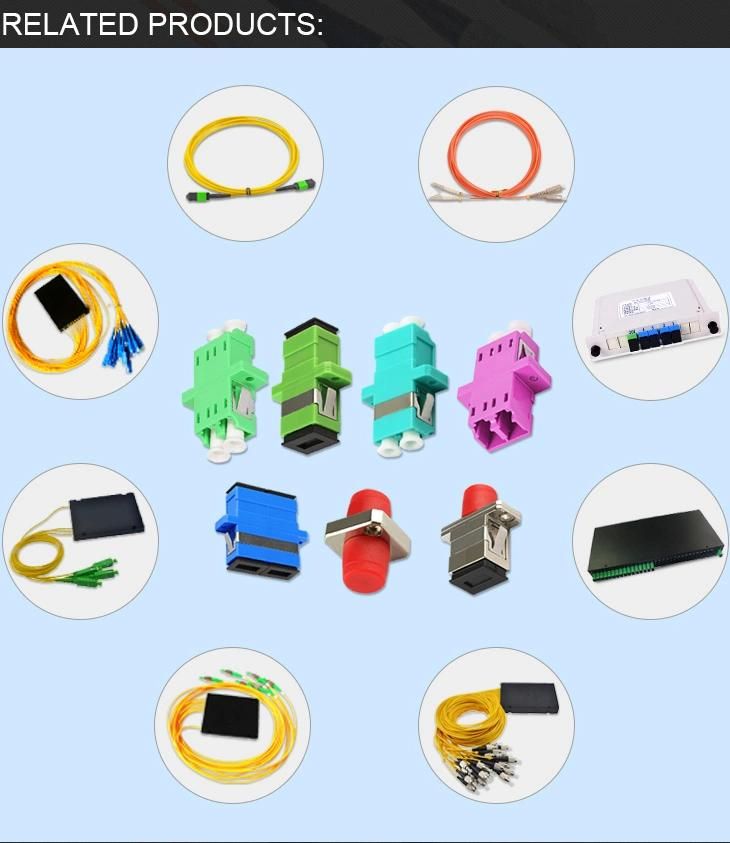

Related products

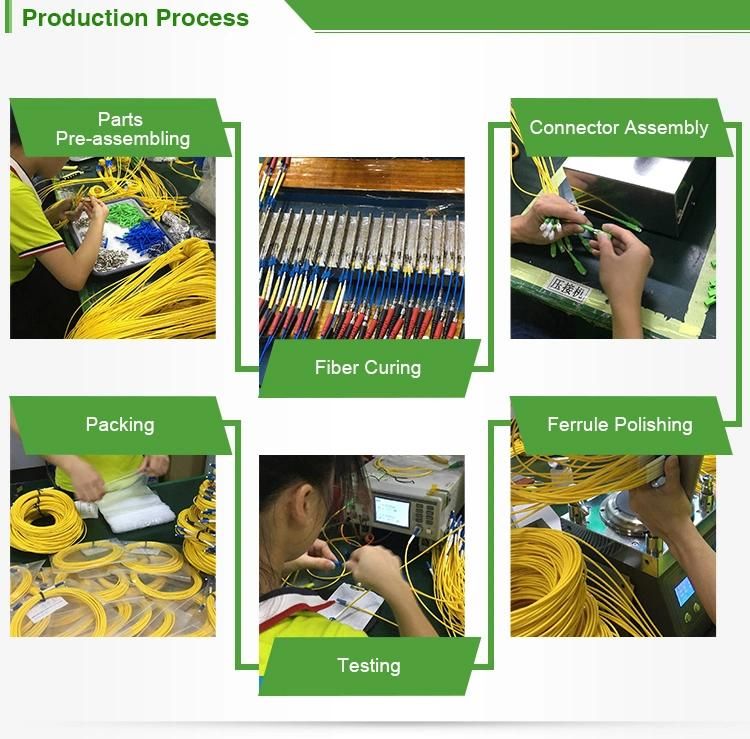

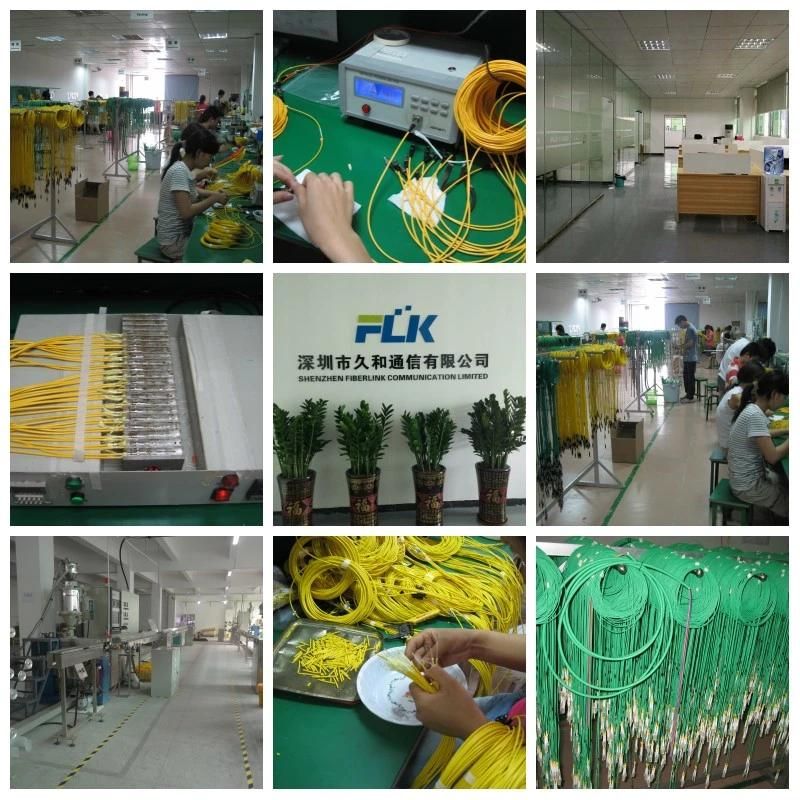

Our fiber patch cord production line:

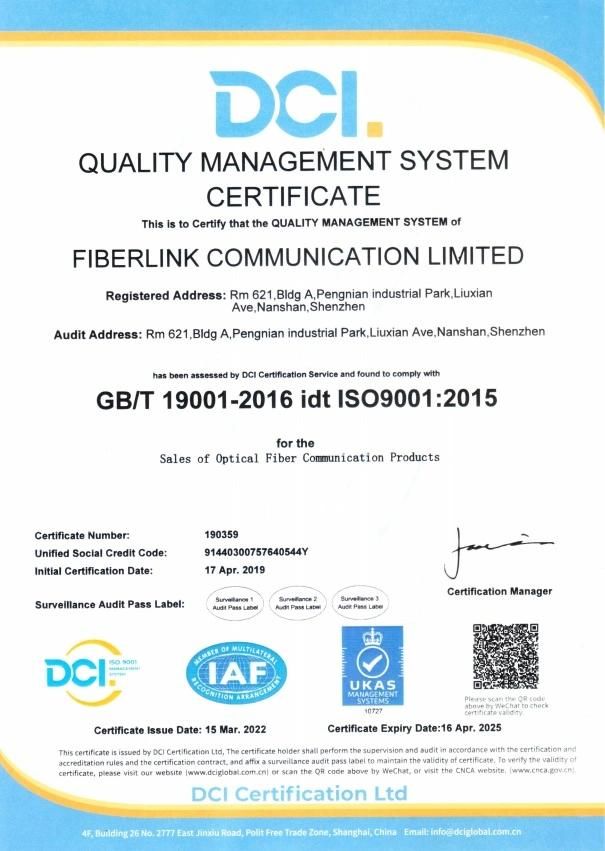

Certifications




Shipping:



Service:
1.Professional manufacturer, 100% tested.
2.Customers solutions in days, not weeks.
3.Warmly services with careful attentions.
4.Can provide your specific inquiry within 24 hours.
5.Save much costs, bring more benefit for customer to expand business.
6.We have been 9 years experience in this field. We are the prefessional supplier that you can trust.

FAQ
Q1:How can you guarantee the delivery time?

A:1. To avoid the delay, we have built a complete and professional procedure system from production to the deliver and have rich experience.
2. We can regulate the penalty clause in the contract for the late delay.

Q2:What's your best price?
A:Based on the quality of our products and the quantity of your estimated. We would quote the great best matching price all the time.

Q3:What's your MOQ?
A:Low MOQ, 1pc for sample checking is available

Q4:Can I print our own logo on the product?
A:Yes, Please send your logo to us.

Q5:Can you provide OEM/ODM service?
A:Yes, we can. Please tell us the details of your requirements

Q6: How to deal with the faulty?
A: Firstly, Our products are produced in strict quality control system and the defective rate will be less than 0.2%.
Secondly, during the guarantee period, we will send new with new order for small quantity. For defective batch products, we will repair them and resend them to you or we can discuss the solution including re-call according to real situation.

Q7:Why choose us to cooperate?
1.  We have first-class production line and strict quality management system.
2.  We have professional procedure system and big production capacity to guarantee fast deliver and on time shipment.
3.  We can provide the most competitive price to meet your budget.
4.  We also design and innovate the new products based on our rich experience .
5.   We have professional team to provide comprehensive one-stop service for you.


Hope this would be a good start for our cooperation!
