FTTH Outdoor Figure 8 Optical Fiber 1f-4f Drop Cable Gjyxch-1b6/2b6/4b6

FIBERLINK COMMUNICATION LIMITED
  • Application：Communication
  • Type：Single-mode Fiber
  • Material Shape：Flat Wire
  • Allowed Lateral Pressure：>1000(N,100mm)
  • Allowed Tensile Strength：>10000N
  • Core：Single Core

Base Info

  • Model NO.：GJYXCH-1B6,2B6,4B6
  • Certification：RoHS, CE, ISO9001
  • Brand：Fiberlink or OEM
  • Sheath Material：LSZH
  • Central Strength Material：Steel Wire
  • Self Support Messenger Wire：Bright Steel Wire
  • out Sheath Material：LSZH
  • Transport Package：Wooden Drum
  • Specification：Customized length
  • Trademark：Fiberlink or customized
  • Origin：China
  • HS Code：8544700000
  • Production Capacity：10000pieces,Month

Description

Overview

Product Description

FTTH Outdoor Optical Fiber Drop Cable Figure 8 Flat-Steel Wire is a cable designed specifically for FTTH project. It adopts double reinforcement figure 8 structure, the optical fiber unit is positioned in the center, two parallel fiber reinforced steel wire are placed at two sides, then the cable is completed with a black or white color LSZH Sheath. This drop cable can directly drop into the building household from the fiber optic splice closure.

 1F-4F
SM fiberFiber typeG657A1, A2Concentricity error≤0.5umCladding diameter124.8±0.7umCladding non-circularity≤0.7%Coating diameter245±5umFiber colorstandard spectrumCentral strength memberMaterialSteel wire Diameter0.5mmSelf support messenger wireMaterialbright steel wireDiameter1.0mmOut sheathMaterialLSZHColorblackDiameter2.0*5.0mm (1-2F)
2.0*5.2mm (4F)Thickness>=0.5mm

Company Profile



FTTH Outdoor Figure 8 Optical Fiber 1f-4f Drop Cable Gjyxch-1b6/2b6/4b6

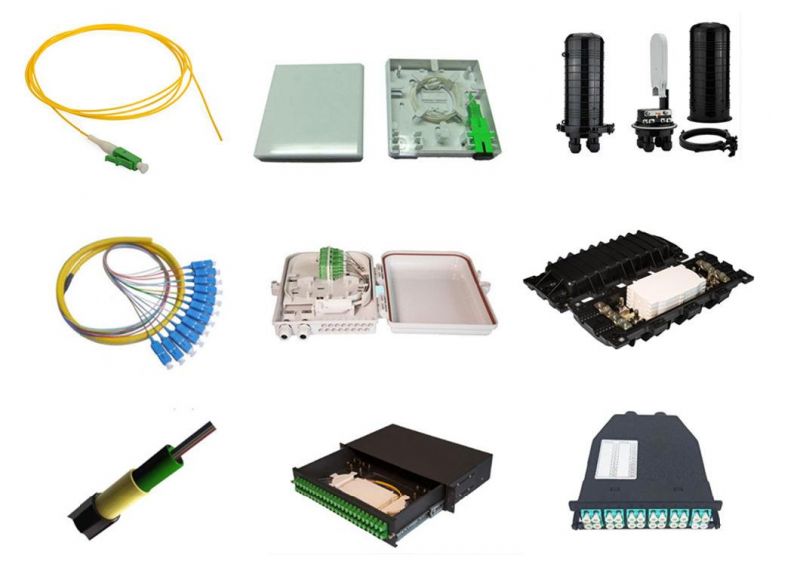

Product Display



FTTH Outdoor Figure 8 Optical Fiber 1f-4f Drop Cable Gjyxch-1b6/2b6/4b6

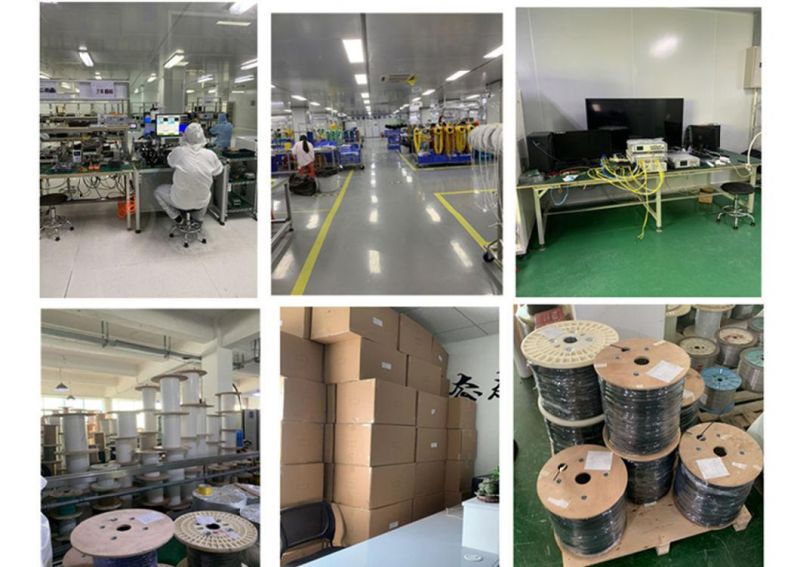

Our Factory



FTTH Outdoor Figure 8 Optical Fiber 1f-4f Drop Cable Gjyxch-1b6/2b6/4b6

Certifications



FTTH Outdoor Figure 8 Optical Fiber 1f-4f Drop Cable Gjyxch-1b6/2b6/4b6

Packaging & Shipping

FTTH Outdoor Figure 8 Optical Fiber 1f-4f Drop Cable Gjyxch-1b6/2b6/4b6

FAQ

Question:Can I have a sample before place an order?
Yes,of course we will provide free samples if value is cheap.but without shipping charges.

Question:What about the leadtime?
Around 7-14 days normally

Question:How about the MOQ?
500pcs normally per color for Fiber cable.consult sales if needed.

Question:Which mode of transportstion?
UPS/DHL/TNT/Fedex/Aramex/Sea/Air and so on.

Question:Can I put logo on the products?
Yes,of course,we do OEM and ODM aslo.

Question:what is the delivery terms?
EXW or FOB is our main delivery term.
