Mica Insulator Extra High Temperature Wire Resistant Electrical Wire UL5128
Dongguan Dewei Wire Co., Ltd.- Type：Insulated
- Conductor Type：Stranded
- Application：Overhead, Heating, Underground
- Conductor Material：Copper
- Sheath Material：Glass Fibre
- Insulation Material：Mica
Base Info
- Model NO.：UL5128
- Material Shape：Round Wire
- Certification：ISO9001, UL, RoHS
- Special Characteristic：High Temperature Resistant
- Transport Package：305m,Coils
- Specification：UL ROHS
- Trademark：DEWEI
- Origin：Dongguan Dewei
- HS Code：8544492100
- Production Capacity：50000m,Day
Description
Overview
Insulator Packing Size (AWG) Conductor construction (NO*ømm) Diameter (mm) Glass Thickness(mm) Jacket Thickness(mm) Over Diameter(mm) Mt/coils 24 7/0.20 0.61 ≥0.381 0.178 ≥1.75 305 22 7/0.25 0.77 ≥0.381 0.178 ≥1.90 305 20 7/0.31 0.94 ≥0.381 0.178 ≥2.10 305 18 16/0.254 1.19 ≥0.381 0.178 ≥2.30 305 16 26/0.254 1.49 ≥0.381 0.178 ≥2.60 305 14 41/0.254 1.87 ≥0.381 0.178 ≥3.00 305 12 65/0.254 2.36 ≥0.508 0.381 ≥4.15 200 10 35/0.45 3.06 ≥0.508 0.381 ≥4.85 100 8 67/0.40 3.75 ≥0.508 0.381 ≥5.55 100 6 266/0.254 4.75 ≥0.508 0.381 ≥6.55 100 4 420/0.254 6.02 ≥0.508 0.381 ≥7.80 100 1,All raw material we selected the high quality one.
2,Professional & Skilful workers care every details in handling the producing.
3,Quality Control Department specially responsible for quality checking in each process.
Specification
Product Description
Conductor

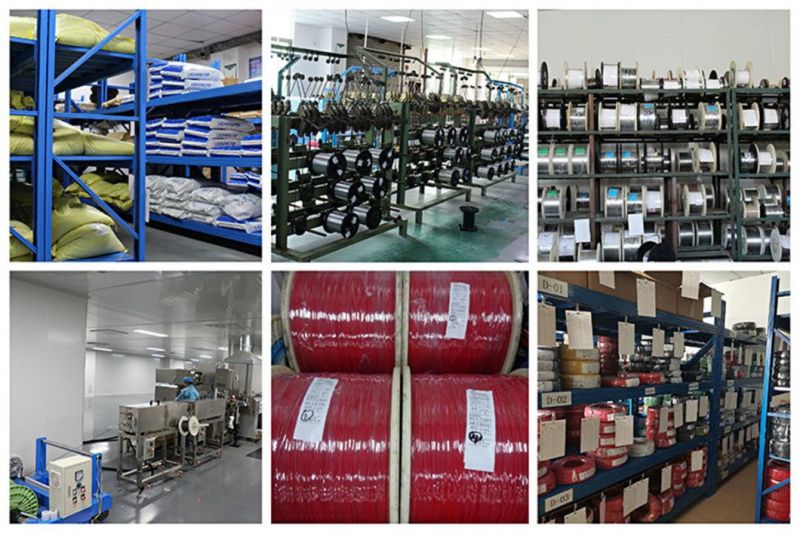

Manufacturing Shop

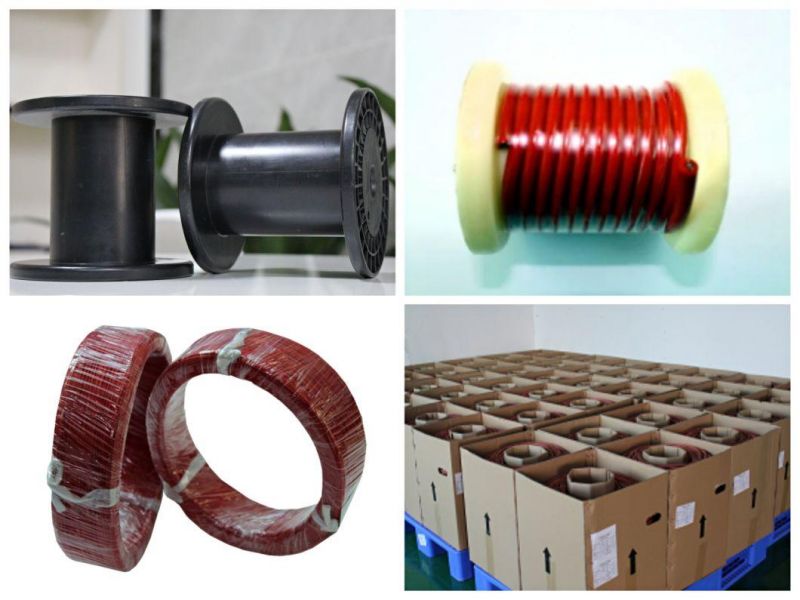

Packaging & Shipping
Certifications
FAQ
2,Professional & Skilful workers care every details in handling the producing.
3,Quality Control Department specially responsible for quality checking in each process.
