0.5mm2 Electrical Cable Wire PVC Armoured Instrumentation Zr-Kvvp Control Cable
People's Cable Group Co., Ltd.- Type：Insulated
- Conductor Type：Stranded
- Application：Heating, Industry
- Conductor Material：Copper
- Sheath Material：PVC
- Insulation Material：PVC
Base Info
- Model NO.：Control Cable
- Material Shape：Round Wire
- Range of Application：LSOH
- Certification：ISO9001, CCC
- Brand：Rmjt
- Type of Comanpy：Factory
- Transport Package：Package in Rolls or as Your Request
- Specification：1.5mm2-800mm2
- Trademark：People′s Cable Group
- Origin：Henan, China
- HS Code：8544492100
- Production Capacity：30000000000000000tons Each Month
Description
ConstructionConductor Stranded of fine copper wire (class 5) comply with the VDE0295/IEC60228 standard. Insulation material Special PVC Black cores with white numbers / VDE0293-308 new color (color can be customized according to customer requirements) Cores Cores twisted in layers. Jacket special PVC mixture sheath Technical data Operating voltage 300/500 V Insulation resistance > 20 MOhm x km minimum bend radius Mobile Install: 20x cable diameter
Fixed installation: 6x cable diameter Operating temperature range Mobile installation: - 5 ° C to +70 °C
Fixed installation: -40 ° C to +80 ° C Wire grounding ID G = green / yellow protective conductor
X =without green / yellow protective conductor
PVC insulated shield control cable
Main scope of applicationKVV Laid indoors, fixed occasions such as cable trenches and pipes KVV22 Laying indoors, cable trench, buried pipelines can bear greater mechanical force fixed installation KVVP To lay claim chamber, ducts, pipes and the like shield KVVR Laid indoors, where occasions require movement KVVRP Placed indoors, where mobile shielding is required ZRKVV Laid indoors, cable trenches, pipes and other fixed occasions requiring flame resistance ZRKVV22 Lay indoors, cable trenches, pipelines, etc. can be buried in fixed occasions that can withstand large mechanical external forces and have flame retardancy requirements ZRKVVP Laid indoors, cable trenches, pipes and other fixed occasions requiring shielding and flame retardant ZRKVVR Laid indoors where mobility and flame retardant requirements are required ZRKVVRP Placed indoors, where mobile shielding and flame retardant requirements are required

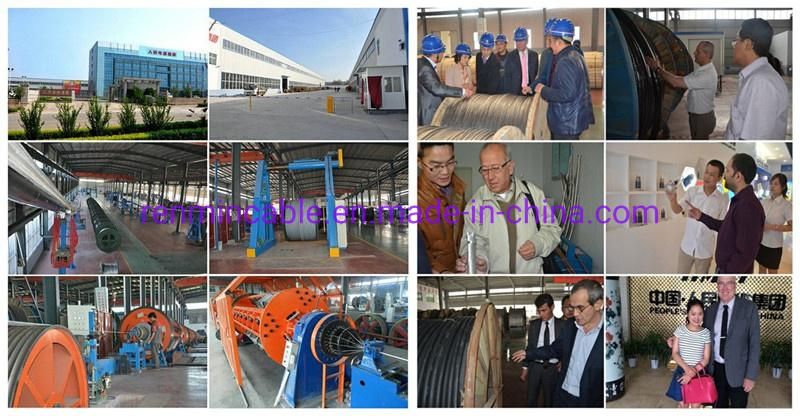

3.Our Company
People's Cable Group Co., Ltd. Was founded in 2007, With good transport facilities which adjacent to the 310 national highway-Lian Huo highway. Our company had 2 factories(Zhitian factory and Zhulin factory), occupies total area of more than 300,000 square meters, with building area 230,000 square meters. The real capital assets more than 10 million USD, with 630 staff members, 65 of which are professional and technical experts.
Fixed installation: 6x cable diameter
Fixed installation: -40 ° C to +80 ° C
X =without green / yellow protective conductor
PVC insulated shield control cable
Main scope of application
3.Our Company
People's Cable Group Co., Ltd. Was founded in 2007, With good transport facilities which adjacent to the 310 national highway-Lian Huo highway. Our company had 2 factories(Zhitian factory and Zhulin factory), occupies total area of more than 300,000 square meters, with building area 230,000 square meters. The real capital assets more than 10 million USD, with 630 staff members, 65 of which are professional and technical experts.
