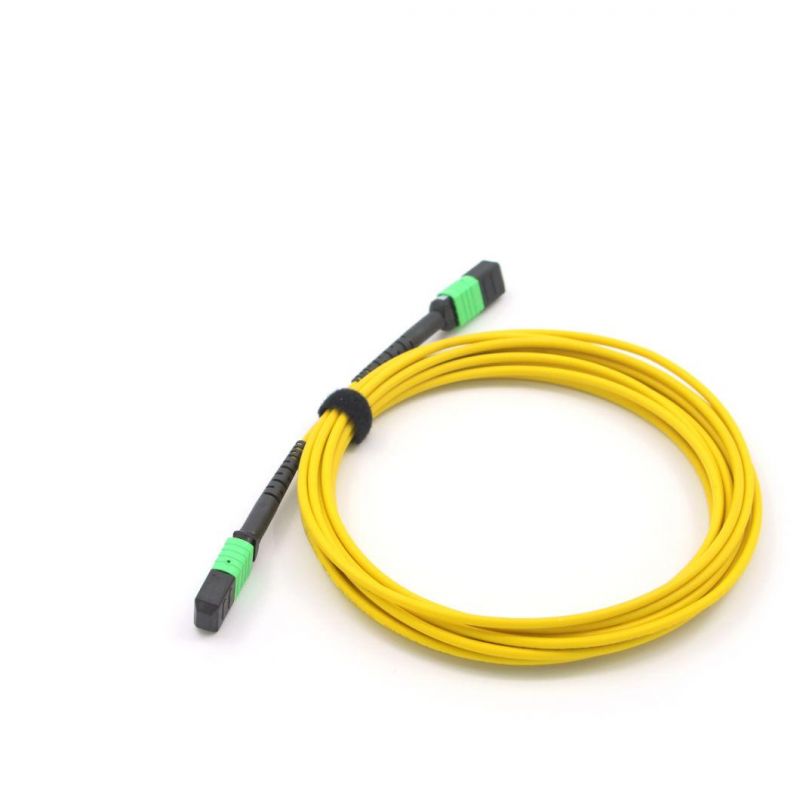

MPO Optic Fiber Cable Jumpers for Data Transmission
Shenzhen KOC Communication Co., Ltd.- Application：Communication
- Type：2 to 24 Cores
- Connection Structure：MPO,MTP
- Material Shape：Ribbon Cable, Mini Round Cable
- Allowed Lateral Pressure：100(N,100mm)<1000(N,100mm)
- Allowed Tensile Strength：100N<1000N
Base Info
- Model NO.：mpo
- Core：Multicore
- Certification：RoHS, UL, ISO9001
- Brand：ODM
- Sheath Material：PVC.LSZH
- IEC 61754-7 Compliant：Compact Design, up to 24 Fiber Ribbon
- Cable Jacket Color：Blue,Green,Aqua,Red,Magenta,Beige
- Adapter Type：MPO
- Channel：2 RO 24
- Housing Color：Aqua,Green, Beige,Yellow, Magenta
- Boot Color：Black
- Boot Type：Round, Flat
- Polishing：APC, PC
- Cable Jacket Material：PVC, LSZH, Ofnr, Ofnp, PE
- Transport Package：Single Pack
- Specification：CE, RoHS, SGS
- Trademark：KOC
- Origin：Made in Shenzhen China
- HS Code：85447000
- Production Capacity：500,Prt Month
Description
Insertion LossLow Los ≤ 0.35dB Low Los ≤ 0.35dB Standard Loss ≤ 0.7dB Standard Loss ≤ 0.5dB Return Loss ≥ 55dB ≥ 30dB Durability <0.3dB typical change,
200 matings - Operating Temperature -40 to +85 ºC -40 to +85 ºC
Note: The price range is for MPO(female)-MPO(female) Multimode 12 core mini round cable 1m.
200 matings
Note: The price range is for MPO(female)-MPO(female) Multimode 12 core mini round cable 1m.
