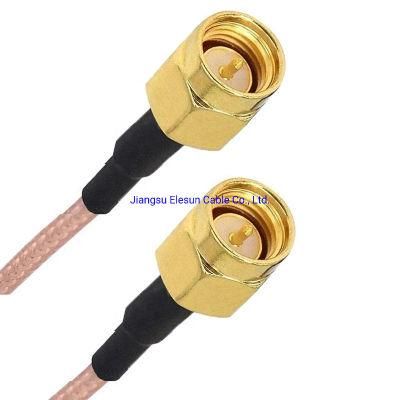

Rg316 Coax Cable Assembly with SMA Connector

Jiangsu Elesun Cable Co., Ltd.
  • Application：Automobile, Home Appliance, Motorcycle, Electronic, Industrial
  • Material of Inner Conductor：Silver Copper

Base Info

  • Model NO.：RG316 cable assembly
  • Structure of Inner Conductor：7,0.17mm
  • Material of Insulation：PTFE
  • Diameter of Insulation：1.50mm
  • Material of Braiding(Shielding)：Silver Copper
  • Structure of Braiding(Shielding)：80*0.10mm
  • Material of Jacket：FEP
  • Diameter of Jacket：2.50mm
  • Working Temp：-55ºC,200ºC
  • Impedance：50Ω±2
  • Voltage：2000V
  • Transport Package：100PCS,CTN
  • Specification：41*28*19cm
  • Trademark：ELESUN
  • Origin：China
  • HS Code：8544200000
  • Production Capacity：2000PCS,Day
  • Package size per unit product：41.00cm * 28.00cm * 19.00cm
  • Gross weight per unit product：12.000kg

Description

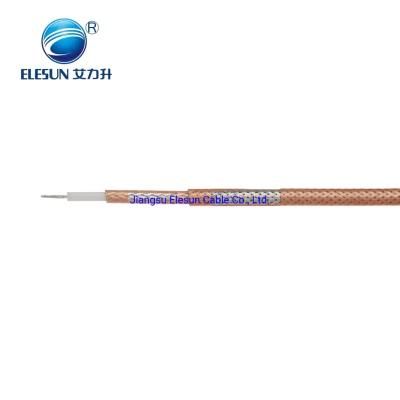

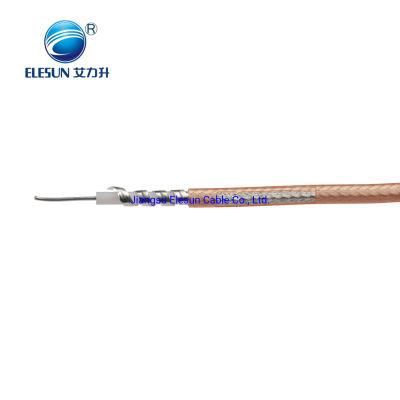

RG316/U coaxial cable specificationsMaterial of Inner ConductorSilver CopperStructure of Inner Conductor7/0.17mmMaterial of Insulation PTFEDiameter of Insulation1.50mmMaterial of Braiding(Shielding)Silver CopperStructure of Braiding(Shielding)80*0.10mmMaterial of Jacket FEPDiameter of Jacket2.50mmWorking temp-55ºC/200ºCImpedance50Ω±2Voltage2000V
