Fusion Splicer Alk-88 Mini Type Fusion Splicing Machine
Wuhan Unique Mechanical & Electrical Equipment Co., Ltd.- Type：Fiber Splicer
- Certification：CE, RoHS
- Customized：Non-Customized
- Condition：New
- Feature：Moistureproof
- Screen：4.3 in.
Base Info
- Model NO.：ALK-88
- Transport Package：Cartob Box
- Specification：As in Description
- Trademark：ALK
- Origin：Wuhan, China
- Production Capacity：1000 Sets,Month
Description
Data sheetApplicable Fiber Type SM,MM,DS,NZDS Applicable fiber diameter Cladding diameter of 125μm, coating diameter 250 ~ 900μm Average splice loss 0.01dB(SM),0.01dB(MM),0.04dB(DS),0.04dB(NZDS) Connecting time 9sec(Typical time) Splice loss evaluation Have Maximum storage 5000 set of the latest record storage Screen 4.3 in. color LCD, support Chinese and English display Optical magnification X / Y: 115 times, X, or Y: 230 times Storage Conditions 0 to 95% relative humidity, temperature -40 degrees C.
~ 80 degrees C.
(except battery), temperature -10 degrees C.
~ 30degrees C. (battery) Corrosion resistance Device components, spare parts and materials used meet corrosion requirements, fluid contamination from
erosion Applicable Fiber Count Single Splice/heat program Stored 40 groups, 80 groups of user-defined Return Loss More than 60dB Tensile test 2N Data interface USB2.0 Battery Typical Operating 220 (splice / heat shrink / thermal stripping) on a single charge 3h, can be reused 500 times Power Supply 11.1V lithium battery, 13.5V/5A power adapter, 12V vehicle power supply
~ 80 degrees C.
(except battery), temperature -10 degrees C.
~ 30degrees C. (battery)
erosion
Operating environment | Altitude 0 ~ 4000m, 0 to 95% relative humidity, temperature -10 degrees C. ~ 55 degrees C., the maximum wind speed 15m / s |
| Weight | 1.54kg (without battery), 1.82kg (including battery), including attachments packing gross weight: 5.38Kg |
| Size | 150D×130W×126H(mm) |
Related Products
| Item No. | Name | Specification | Package | Ref.picture |

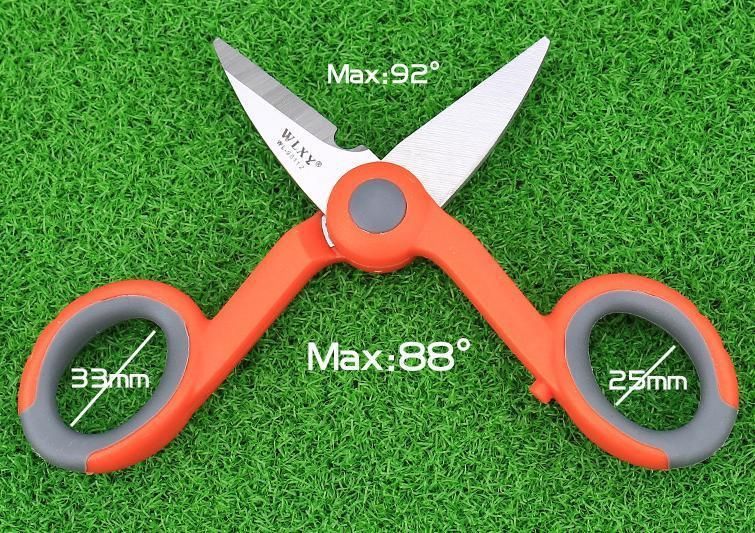

| T1001 | Kevlar scissors | WL-9011Z | 1PCS/BOX |  |

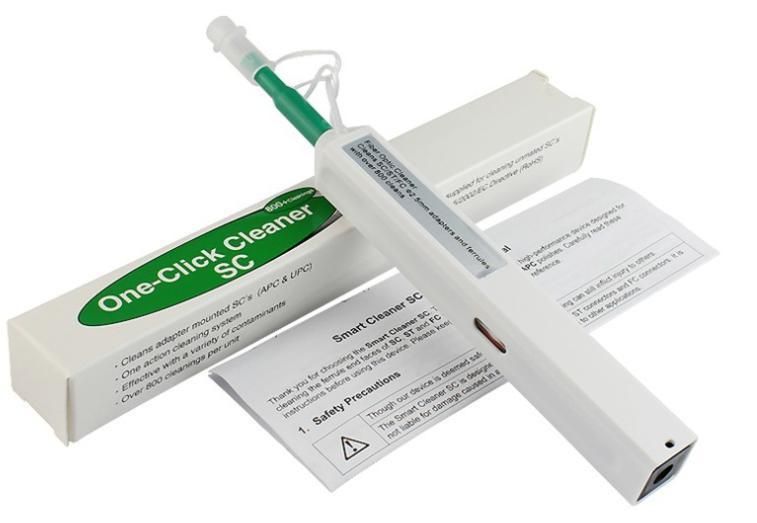

| T1008 | Fiber optic cleaner | Clean SC/ST/FC Φ2.5mm adapters and ferrules | 1 PC/Box |  |

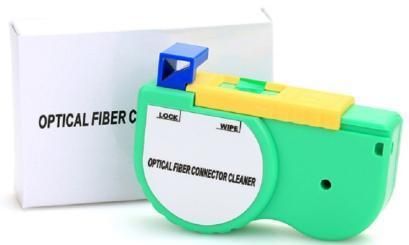

| T1009 | Fiber optic connector cleaner | Clean FC/SC/ST/E2000,LC/MU,MT etc. | 2 PC/Box |  |

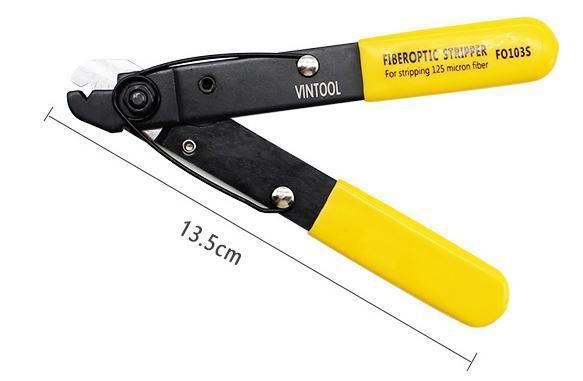

| T1010 | Fiber Optic Stripper | For 125μm Fiber | 1 PC/box |  |

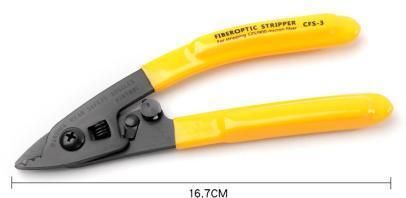

| T1011 | Fiber Optic Stripper | For 125/900μm Fiber | 1 PC/box |  |

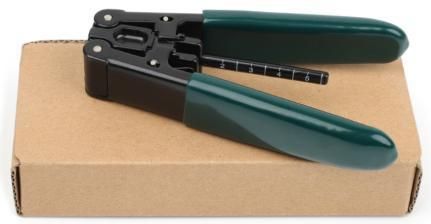

| T1012 | Fiber Optic Stripper | For 3.0×2.0mm Fiber Cable | 1 PC/box |  |

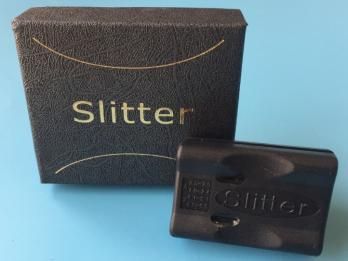

| T1014 | Fiber optic slitter (Longitudinal type) | For stripping fiber optice tubes of 1.5~1.9 mm,2.0~2.4mm,2.5~2.9mm,3.0~3.3mm | 1 PC/box |  |
| T1015 | Fiber optic slitter (Transverse type) | For stripping fiber 3.2mm-5.6mm | 1 PC/box |  |

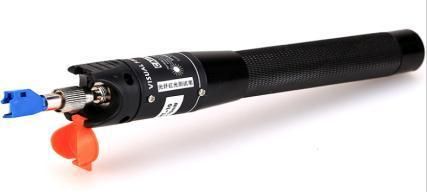

| T1017 | Visual Fault Locator | 20kM |  | |

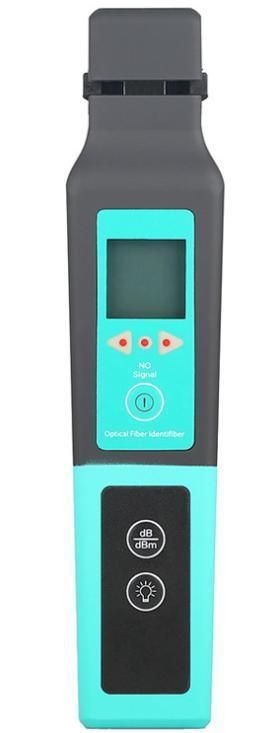

| T1021 | Optical Fiber Identifier | 80nm-1700nm | 1PC/Box |  |
| T1022 | Optical Power Meter | 850/980/1300/1310/1490/1550/1625nm | 1PC/Box |  |

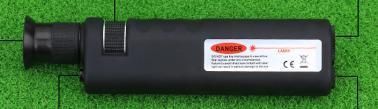

| T1023 | 400 Times Optical Fiber Magnifier | To check SC-FC-ST | 1PC/Box |  |
